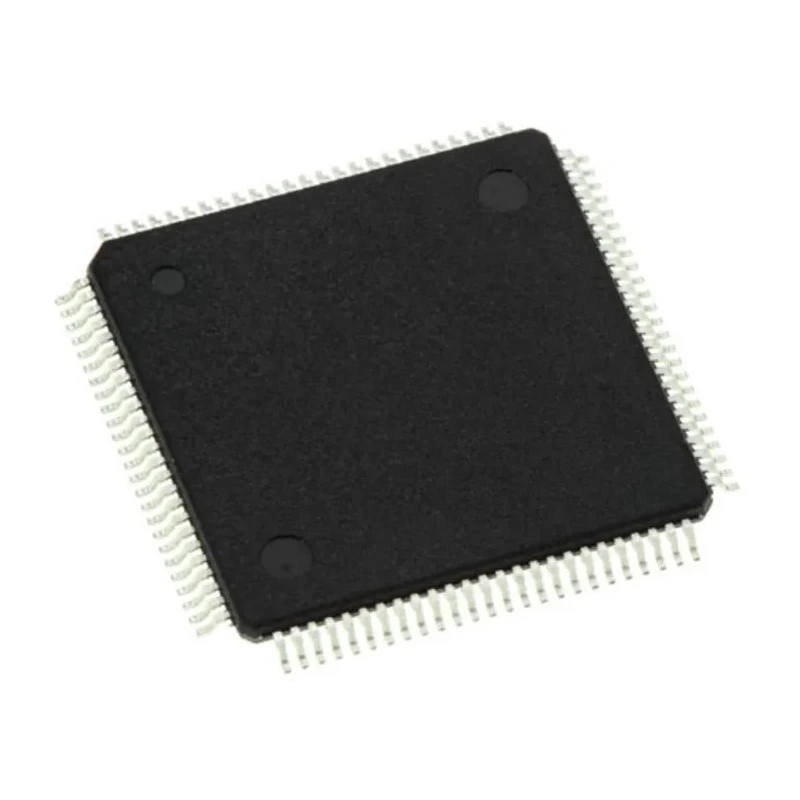

Infineon C166 Family 16 bit XE166 Microcontroller 80 MHz 576kB FLASH 100-Pin LQFP XE164FM72F80LRABKXUMA1

Infineon XE164FM72F80LRABKXUMA1 is a member of the C166 family of 16-bit microcontrollers designed for high efficiency real-time control in automotive, industrial, mass storage, and communication systems. This XE166 microcontroller operates at a maximum clock frequency of 80 MHz, delivering superior performance compared to many 32-bit RISC processors in dedicated control tasks.

The microcontroller is built around the C166 core with 16-bit data bus width, featuring 576kB of FLASH program memory and 26kB of RAM to support extensive embedded applications. It offers multiple communication interfaces including IIS, UART, IIC, LIN, and SPI/QSPI, enabling integration into complex systems requiring versatile connectivity.

This device supports a supply voltage range from 3 V minimum to 5.5 V maximum with power dissipation limited to 1W, making it suitable for low-power embedded applications. It is rated to operate reliably over a broad temperature range from -40°C to 125°C, matching industrial and automotive environment requirements.

In addition to its computing power, the microcontroller includes 16 channels of 10-bit ADC inputs, two timers, and supports multiple instruction set architectures including CISC, RISC, and DSP for advanced control algorithms and signal processing.

The package is a 100-pin LQFP surface mount type with dimensions of 14 mm by 14 mm by 1.4 mm, providing a compact footprint optimized for space-constrained designs. No automotive-specific certifications are declared for this model.

This microcontroller family is ideal for applications in automotive electronics, industry automation, wired and wireless communications, and mass storage controllers where precise real-time performance and cost effectiveness are essential.

High performance 16 bit C166 device core optimized for real-time control applications. Operates at a maximum clock frequency of 80 MHz. Equipped with 576kB of FLASH program memory and 26kB RAM. Supports multiple interfaces including IIS, UART, IIC, LIN, and SPI/QSPI for versatile communication.

Wide operating voltage range from 3V to 5.5V with a maximum power dissipation of 1W. Suitable for automotive and industrial applications with operating temperature from -40°C to 125°C. Compact 100-pin LQFP surface mount package with dimensions 14mm x 14mm x 1.4mm.

Features 16 ADC channels with 10-bit resolution for precise analog measurements. Includes two timers for advanced timing and control functionality. Implements CISC, RISC, and DSP instruction set architectures for efficient processing.
