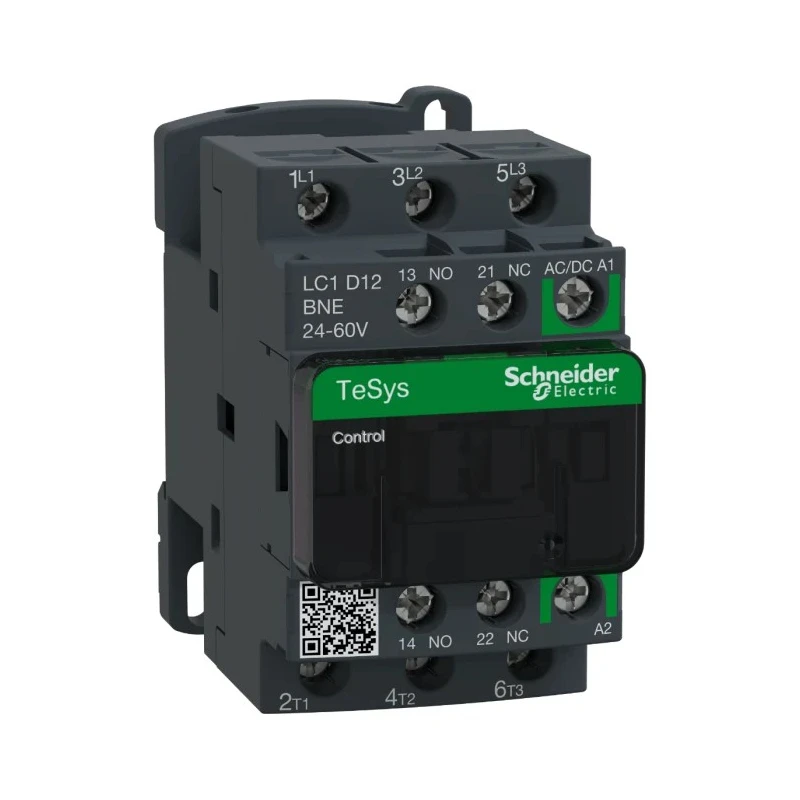

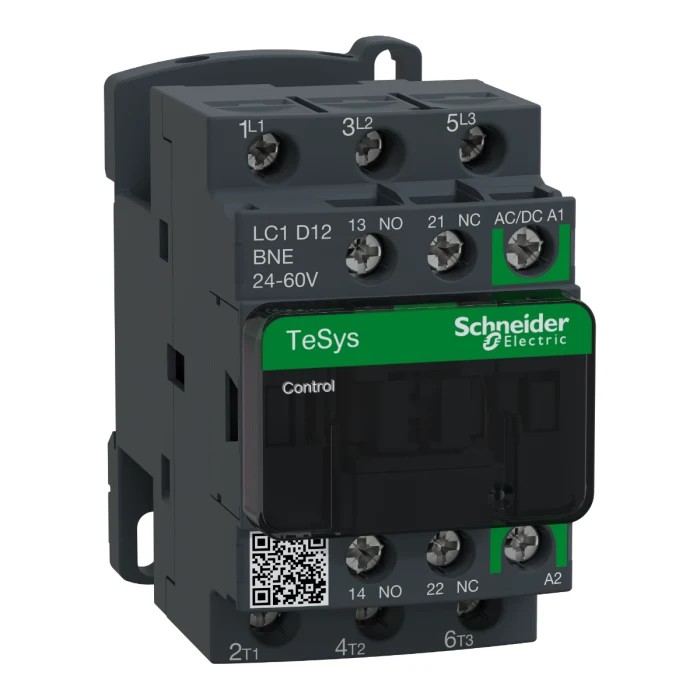

Schneider Electric TeSyS D Contactor, 24V AC/DC Coil, 3-Pole, 12 A, 5.5 kW Power Rating, 60V Control Voltage, 3 NO LC1D12BNE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 45mm |
| Model | LC1D12BNE |
| Depth | 77mm |
| Width | 86mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, EAC, IEC, RoHS, UL, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 60V |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates on a coil voltage of 24V AC/DC for versatile control options.
- Designed with 3 poles and 3 normally open (NO) contacts for efficient switching.
- Power rating of 5.5 kW supports diverse motor applications.
- Mountable on DIN rail, allowing easy installation in control panels.
- Equipped with 2 auxiliary contacts configured as 1 NO and 1 NC for additional switching functions.
- Screw terminal type with IP20 finger-safe terminals for safe connections.
- Wide operating temperature range from -25°C to 60°C ensures reliable performance.
- Complies with multiple standards including CSA, EAC, IEC, RoHS, UL, and CCC.
Product Description
Schneider Electric LC1D12BNE TeSyS D Contactor, designed for industrial and automation applications, operates with a 24V AC/DC coil voltage. It is a 3-pole contactor rated for 12 A contact current and 5.5 kW power, suitable for controlling resistive loads and motors.
The device features three normally open contacts and two auxiliary contacts with a 1 NO and 1 NC configuration, providing extended switching capabilities. Mounting options include DIN rail and panel screws, enabling flexible installation in control panels and automation systems.
The contactor’s screw terminals are IP20 finger-safe, marked for both North American and international standards, ensuring safety and ease of wiring. It supports control circuit voltage up to 60V and operates efficiently within ambient temperatures from -25°C to 60°C.
Built for durability, the TeSyS D Contactors combine a long mechanical and electrical life with excellent vibration and shock resistance. The coil incorporates a bidirectional peak limiting diode to protect against electrical surges, enhancing component longevity.
Compliance with international standards such as CSA, EAC, IEC, RoHS, UL, and CCC confirms reliability and quality assurance. Compact dimensions (45mm length, 86mm width, 77mm depth) allow straightforward integration into existing systems.
Applications include motor starters for various machinery, conveyor controls, pumps, compressors, air conditioning units, and other industrial automation tasks. The device suits resistive load and motor control categories, with utilization categories AC1 and AC3 relevant for respective load types and operating conditions.
Operates on coil voltage of 24V AC/DC suitable for multiple control situations. Has 3 poles and 3 normally open contacts for reliable switching. Rated at 12 A contact current and 5.5 kW power for diverse motor applications.
Includes 2 auxiliary contacts configured as 1 NO and 1 NC for expanded control options. DIN rail and panel screw mountable for versatile installation. IP20 finger-safe screw terminals marked for international standards. Wide operating temperature range from -25°C to 60°C.
Complies with CSA, EAC, IEC, RoHS, UL, and CCC standards. Equipped with bidirectional peak limiting diode for coil protection. Compact size: 45 x 86 x 77 mm (L x W x D). Explore more Schneider Electric automation and control gear products at EnvMart for your electrical and industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 5.5 kW, making it suitable for various motor applications.
It operates on a coil voltage of 24V AC/DC, providing versatile control options.
This contactor is designed with 3 poles, featuring 3 normally open contacts for efficient switching.
The dimensions of the TeSyS D Contactor are 45 mm in length, 86 mm in width, and 77 mm in depth.
It can operate in ambient temperatures up to 60°C, ensuring reliable performance in various conditions.
It features IP20 finger-safe screw terminals, marked for both North American and international standards for safe connections.
This unit includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC) for additional switching functions.
It complies with multiple standards including CSA, EAC, IEC, RoHS, UL, and CCC, confirming its reliability and quality assurance.
The contact current rating for this model is 12 A, suitable for controlling resistive loads and motors.
It can be mounted on DIN rail or using panel screws, allowing for flexible installation in control panels.
This contactor is suitable for applications such as motor starters, conveyor controls, pumps, compressors, and air conditioning units.
It is designed for controlling resistive loads and motors, with utilization categories AC1 and AC3 relevant for respective load types.
