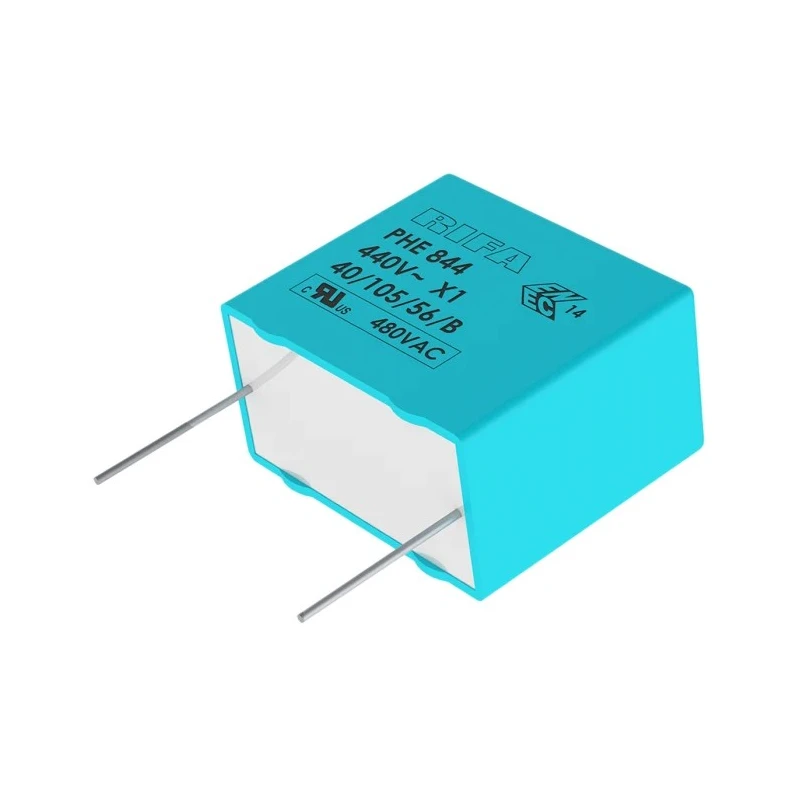

KEMET Film Capacitor 100 nF 440V AC ±20% Through Hole Mount PHE844
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | KEMET |
| Height | 16mm |
| Length | 26mm |
| Model | PHE844 |
| Packaging | Tape & Reel |
| Width | 8mm |
| Mount Type | Through Hole |
| Series | PHE844 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±20 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Wire |
| Dissipation Factor | 0.4% |
| Lead Length | 6mm |
| Standards/Approvals | UL, CSA, ENEC, RoHS, X Class - X1 |
| Pin Count | 2 |
| Rated AC Voltage | 440V ac |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
Key Features
- The capacitor offers a capacitance value of 100 nanofarads.
- Rated for an alternating voltage of 440V AC ensuring robust performance.
- Features ±20% tolerance providing flexibility for varied circuit requirements.
- Utilizes metallised polypropylene construction for reliable interference suppression.
- Through Hole mount design with 22.5mm lead pitch and 6mm lead length for easy integration.
- Encapsulated in UL94V-0 self-extinguishing material enhances safety in use.
- Operating temperature range from -40°C to +105°C suitable for diverse environments.
- Certifications include UL, CSA, ENEC, and RoHS compliance confirming quality standards.
Product Description
KEMET PHE844 Film Capacitor PHE844RD6100MR06L2 is a high-quality passive electronic component for EMI suppression duties. It features a capacitance of 100 nF and is rated for 440V AC operation with detailed tolerance of ±20%.
The capacitor is constructed from metallised polypropylene film encapsulated in a self-extinguishing UL94V-0 compliant material for safety during usage. Designed as a through-hole mount type, it has a 22.5 mm lead pitch and a 6 mm lead length with wire terminal type suitable for PCB insertion.
It offers a pin count of 2 with precise dimensions of 26 mm length, 16 mm height, and 8 mm width. Lead diameter is 0.8 mm, and the dissipation factor stands at 0.4%, supporting stable electrical performance. The temperature operating range spans from -40°C to +105°C which makes it ideal for industrial, automotive, and commercial electronics.
The PHE844 series capacitors are widely used in industrial electronic assemblies such as EMI interference suppression circuits and across mains line applications in compliance with X1 class standards. It is not recommended to use them in positions exposing electric shock risk if failure occurs.
The capacitor is UL, CSA, ENEC, and RoHS certified ensuring reliability and compliance with international standards. Encapsulation protects against environmental and electrical hazards. The robust design supports applications in industrial equipment, power supplies, instrumentation, and consumer electronics.
Rated for moderate to high AC voltage environments with proven safety and performance. Pin configuration and lead spacing are optimized for standard PCB layouts for through-hole mounting.
This product represents a dependable component choice for engineers and electronic manufacturers requiring film capacitors with performance and safety certifications. Explore similar KEMET Film Capacitors in the EnvMart catalog for complementary electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 100 nanofarads (nF).
It is rated for an alternating voltage of 440V AC.
The capacitor has a tolerance of ±20%.
This model has a length of 26 mm, a height of 16 mm, and a width of 8 mm.
The operating temperature range is from -40°C to +105°C.
It utilizes a through-hole mount design with a lead pitch of 22.5 mm.
The lead length is 6 mm and the lead diameter is 0.8 mm.
It is constructed from metallised polypropylene film and encapsulated in UL94V-0 self-extinguishing material.
The capacitor is certified by UL, CSA, ENEC, and is RoHS compliant.
The dissipation factor stands at 0.4%.
This model has a pin count of 2.
It is widely used in industrial electronic assemblies, particularly for EMI interference suppression circuits and mains line applications.
