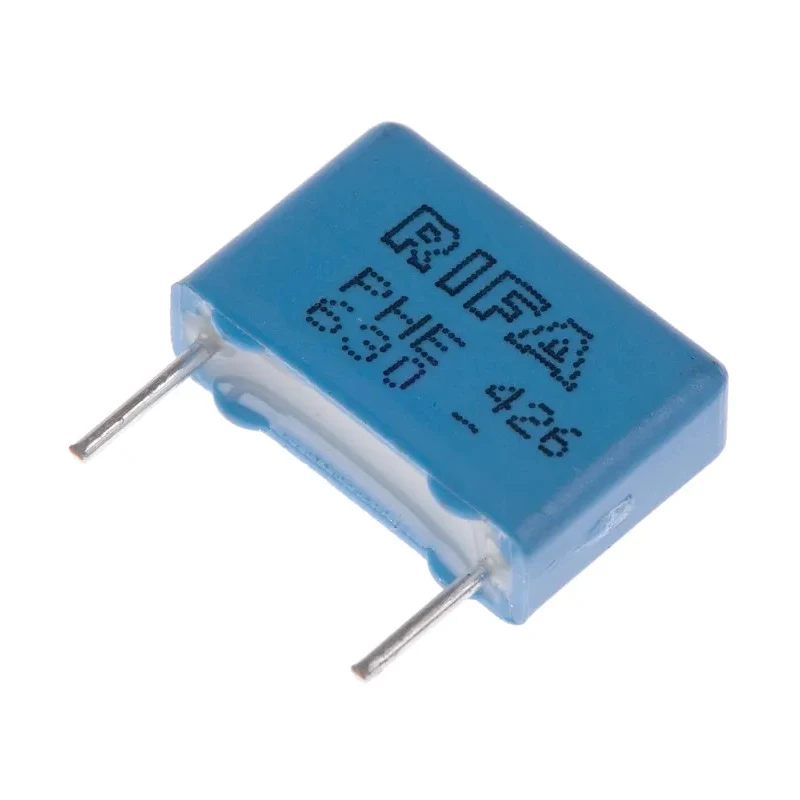

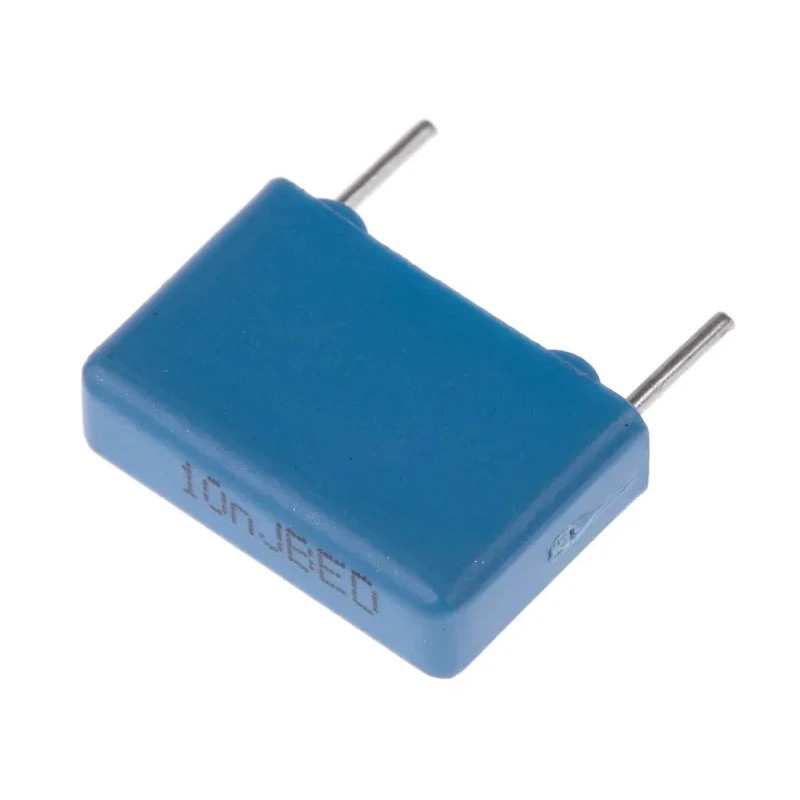

KEMET Film Capacitor Through Hole ±5 % Tolerance 10 nF Capacitance 630 V DC 160 V AC PHE426

KEMET PHE426 Film Capacitor is a through-hole mount capacitor designed for pulse and snubber applications in switch mode power supplies (SMPS), televisions, monitors, and electrical ballasts operating at high frequencies. The capacitor has a capacitance of 10 nF with a ±5 % tolerance, providing stable electrical performance under varying conditions.

This capacitor is rated for 630 V DC and 160 V AC, suitable for demanding voltage requirements. It supports a wide operating temperature range from -55°C up to 105°C, enabling use in challenging industrial and commercial environments.

The radial lead terminals feature a pitch of 10 mm and a lead length of 5 mm, enabling easy and reliable through-hole PCB assembly. The encapsulation uses UL94V-0 rated self-extinguishing material ensuring safety and durability in electrical applications.

Dimensions are compact with a length of 13 mm, height of 9 mm, and width of 4 mm, allowing for efficient PCB space utilization. The dissipation factor is low at 0.05%, which minimizes energy loss and heat generation during operation.

The PHE426 series meets the IEC 60384-16 standard for film capacitors, guaranteeing industry-wide compliance and quality assurance. This component's design with a 0.6 mm lead diameter and 2 pins ensures secure and stable electrical connections.

Manufactured in Indonesia, this KEMET capacitor offers reliable performance suited for industrial, electronic manufacturing, and commercial electronics applications such as power supplies, signal filtering, and noise suppression.

Designed for pulse and snubber applications in high-frequency circuits. Rated operating temperature range from -55°C to 105°C for versatility. Encapsulated in UL94V-0 self-extinguishing material ensuring safety and durability.

Radial terminal type with a 10 mm lead pitch and 5 mm lead length for easy PCB mounting. Complies with IEC 60384-16 standards for reliable performance. Compact dimensions: 13 mm length, 9 mm height, and 4 mm width allowing space-saving layouts.

Dissipation factor of 0.05% ensuring low power loss. Lead diameter of 0.6 mm and 2 pins for secure electrical connection. Ideal for use in SMPS, TVs, monitors, and electrical ballasts. Manufactured in Indonesia, assuring quality control and consistency.
