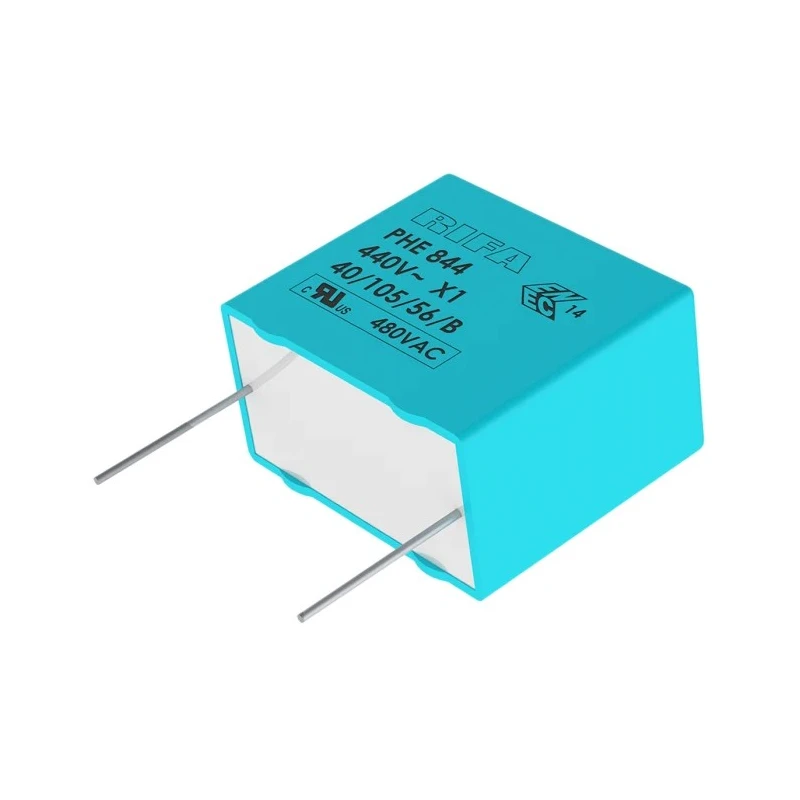

KEMET Film Capacitor X1, 680 nF, ±20 %, 440V AC, Through Hole Mount PHE844

The KEMET PHE844 model film capacitor X1 series offers a capacitance of 680 nF and a ±20 % tolerance, rated for 440V AC applications. It features through hole mounting with a 27.5 mm lead pitch designed for EMI suppression in electronic circuits.

Manufactured with metallised polypropylene, the capacitor is encapsulated in a self-extinguishing material that meets UL94V-0 flame retardant requirements. This construction provides enhanced safety and reliability in interference suppression applications ranging from industrial to commercial electronics.

Operating temperature ranges from -40°C to 105°C allow usage in harsh environments while maintaining performance. The device features a dissipation factor of 0.4% that ensures efficient energy handling with minimal losses.

This capacitor is supplied in tape and reel packaging, facilitating automated PCB assembly in manufacturing processes. The lead diameter of 0.8 mm and lead length of 6 mm provide a secure mechanical and electrical connection through the printed circuit board.

Compliant with RoHS environmental standards and evaluated for safety under ENEC, UL, and CSA approvals, the PHE844 is optimized for EMI-filter applications requiring the X1 suppression class across mains.

Note that X capacitors like this are designed for mounting directly across mains voltage but should never be used where failure could pose electrical shock hazards to personnel. Through hole mounting for reliable PCB attachment.

Tape and reel packaging supports automated assembly processes. Metallised polypropylene construction with UL94V-0 encapsulation. Wide operating temperature range from -40°C to 105°C. Low dissipation factor of 0.4% for efficient performance.

Safety approvals including ENEC, UL, and CSA. Designed specifically for EMI suppression in X1 class applications. Lead pitch of 27.5 mm compatible with standard PCB layouts. Pin diameter and lead length optimized for secure connections.

RoHS compliant ensuring environmentally friendly components. This product is ideal for industrial electronics, power supplies, consumer electronics, and other commercial or HVAC applications where EMI filtering is required.
