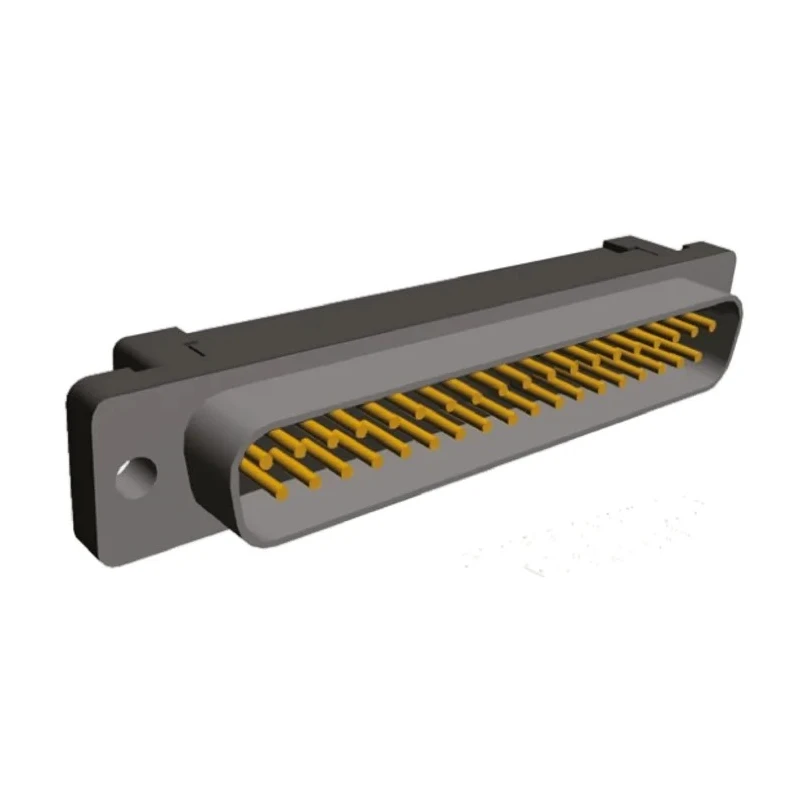

TE Connectivity Amplimite HDF-20 37 Way Right Angle 2.76 mm Pitch Cable D-Sub Connector Male 1658613-1

TE Connectivity 1658613-1 Amplimite HDF-20 37 Way Right Angle 2.76 mm Pitch Cable D-Sub Connector Male is a precision-engineered electrical connector designed for rugged industrial and electronic applications.

This D-Sub connector features 37 contacts laid out at a 2.76 mm pitch, ideal for high-density cable connections with reliable signal integrity. It is designed with a right angle orientation to facilitate cable mounting in compact or constrained spaces.

Constructed with a robust steel housing and phosphor bronze contacts plated with gold over nickel, this connector ensures superior electrical performance and corrosion resistance. The insulation components include a high-quality 94V-0 rated thermoplastic housing suitable for enduring demanding environments.

Designed for use with flat ribbon cables of 28 AWG and 26 AWG strands, it employs insulation displacement contact (IDC) termination technology for efficient and secure connections without soldering.

Operating temperature range from -55°C to 105°C makes this connector suitable for diverse industrial, electronic manufacturing, and automation systems requiring durability and performance reliability.

This model mates perfectly with HD-20 Board Mount, HDP, and HDE D-sub connectors sizes 1-4, extending its versatility. Optional strain reliefs and screwlock accessories are recommended for enhanced mechanical security during installation.

The connector is right angle oriented for cable mounting applications. Current rating is 1.25A with a voltage of 30V. Steel housing with gold over nickel plated phosphor bronze contacts ensure durability. Operates between -55°C and 105°C, accommodating harsh environments.

Features IDC termination for flat ribbon cable compatibility. Compatible with 28 and 26 AWG solid or stranded round conductor cables on 1.27 mm centers. Part of Amplimite HDF-20 low profile series with metal shell and thermoplastic housings.

Compatible with corresponding HD-20 Board Mount, HDP, and HDE D-sub connectors.

This connector is widely used in industrial automation, electronic equipment manufacturing, data communications, aerospace, automotive, and HVAC systems where secure multi-contact connections are essential.
