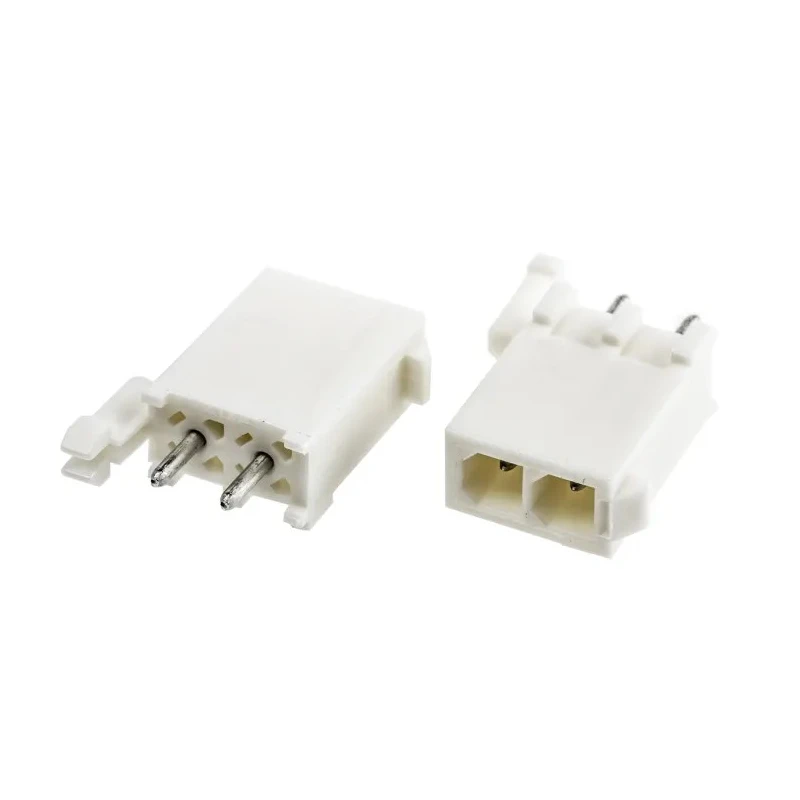

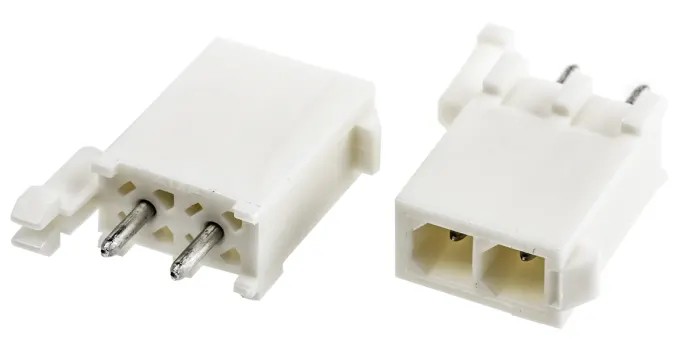

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header 2 Contacts 4.14 mm Pitch 1 Row 1-770166-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- This PCB header supports a current rating of 9.5 A.
- The connector housing is made of flame-retardant nylon (UL94V-0) ensuring high durability.
- Mount type is through-hole with a shrouded design and straight orientation.
- Contact material is brass with tin plating for enhanced corrosion resistance.
- It operates reliably in temperature ranges from -55°C to 105°C.
- The connector system provides secure mating with a positive locking latch mechanism.
- Termination of contacts is by solder, with male contact gender and tail pin length of 3.69 mm.
Product Description
TE Connectivity 1-770166-0 Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header features 2 contacts arranged in a single row with a 4.14 mm pitch, designed for wire-to-board applications requiring reliable and secure connections.
Manufactured with a white UL94V-0 nylon housing, this header offers high flame retardancy and mechanical strength. The shrouded design incorporates a positive locking latch mechanism to ensure secure mating and includes board locks for enhanced PCB retention during assembly.
The contact pins are made of brass with tin plating, facilitating good electrical conductivity and corrosion resistance. With a current rating of 9.5 A and voltage rating of 600 V, this connector supports demanding power and signal transmission requirements. Its operating temperature range from -55°C to 105°C makes it suitable for diverse industrial and electronic environments.
The through-hole mount type simplifies PCB integration, and the solder termination type provides a robust and permanent connection. The connector's male contact gender with a tail pin length of 3.69 mm ensures compatibility with matching female counterparts in the Mini-Universal MATE-N-LOK connector system.
This product suits applications in industrial electronics, telecommunications, automotive systems, and manufacturing, providing a dependable interconnection solution. This PCB header supports a current rating of 9.5 A. The connector housing is made of flame-retardant nylon (UL94V-0) ensuring high durability.
Mount type is through-hole with a shrouded design and straight orientation. Contact material is brass with tin plating for enhanced corrosion resistance. It operates reliably in temperature ranges from -55°C to 105°C. The connector system provides secure mating with a positive locking latch mechanism.
Voltage rating is 600 V, suitable for a range of electronic applications. Termination of contacts is by solder, with male contact gender and tail pin length of 3.69 mm. Explore the full range of TE Connectivity connectors and enhance your electronic design and manufacturing workflow here at EnvMart.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 9.5 A.
The voltage rating for this connector is 600 V, making it suitable for various electronic applications.
It features a through-hole mount type, which simplifies integration onto a PCB.
The housing is made of flame-retardant nylon (UL94V-0), and the contact pins are made of brass with tin plating for enhanced corrosion resistance.
It operates reliably in temperature ranges from -55°C to 105°C.
This model features 2 contacts arranged in a single row.
The pitch of the contacts is 4.14 mm.
The termination of contacts is by solder, providing a robust and permanent connection.
Yes, it incorporates a positive locking latch mechanism to ensure secure mating.
The tail pin length is 3.69 mm, ensuring compatibility with matching female counterparts.
This connector is suitable for applications in industrial electronics, telecommunications, automotive systems, and manufacturing.
The orientation of this model is straight, designed for easy integration into PCB layouts.
