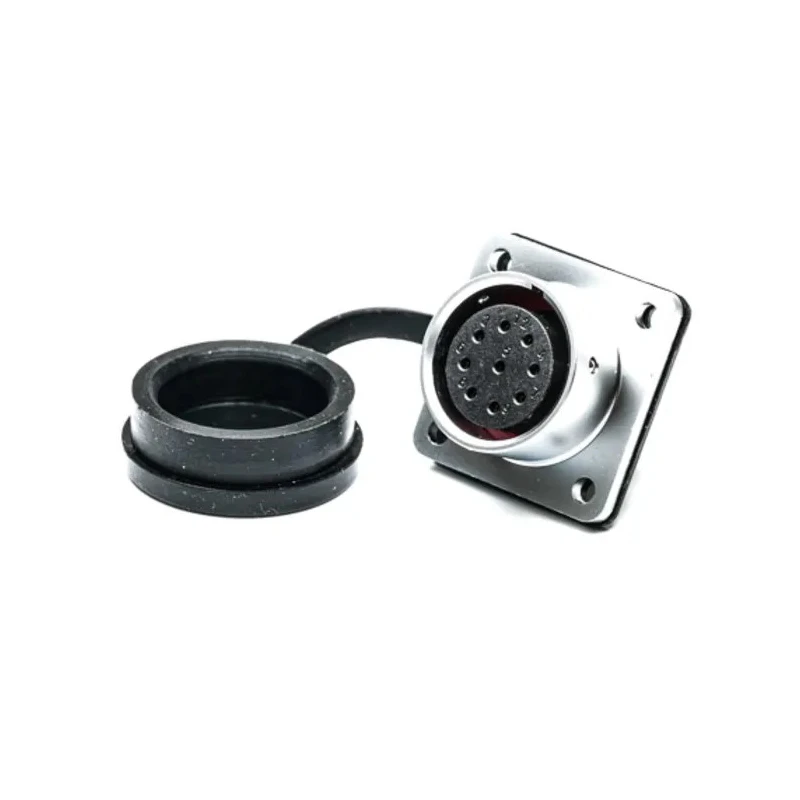

RS PRO Circular Connector, 9 Contacts, Flange Mount, M20 Size, Socket Female, IP67, 400V, 5A, Chrome Plated Brass 206-5204

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Circular Connector, 9 Contacts, Flange Mount, M20 Size, Socket Female, IP67, 400V, 5A, Chrome Plated Brass 206-5204

Name: RS PRO Circular Connector, 9 Contacts, Flange Mount, M20 Size, Socket Female, IP67, 400V, 5A, Chrome Plated Brass 206-5204
Brand: RS PRO
SKU: 165769
Price: 38.06 USD
Availability: InStock



Category Industrial Circular Connectors Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	400V
Brand	RS PRO
Orientation	Straight
Current	5A
Temperature range	-40∼+85 °C
Model	206-5204
IP Rating	IP67
Mount Type	Flange
Housing Material	Chrome Plated Brass
Contact Material	Brass
Current Rating	5A, 10A, 25A
Series	RS PRO
Termination Type	Solder
Maximum Operating Temperature	85°C
Insulation resistance	2000 MΩ
Minimum Operating Temperature	-40°C
Pole Format	9
Contact Plating	Gold
Number of Contacts	9
Contact Gender	Female
Shell Size	22 mm
Mating Type	Push Pull
Connector Size	M20
Plug/Socket	Socket
Cable Outer Diameter	8-12 mm
Voltage Power Rating	400 V, 500 V
Panel-hole cut-out size	20 mm
Wire size for screw (2, 3 and 4 pole)	1.5/15 mm2

Key Features

This circular connector supports 400V voltage and 5A current rating.
The housing is made of chrome-plated brass for high durability and corrosion resistance.
It features a push-pull mating type with solder termination for reliable connections.
The contact material is brass plated with gold to ensure excellent conductivity and low resistance.
It operates within a temperature range of -40°C to 85°C, suitable for demanding industrial environments.
The connector shell size is 22 mm with a cable outer diameter range of 8-12 mm.
Suitable for industrial, medical, communication, and test & measurement equipment requiring secure, waterproof connections.
The product meets no specific certifications but is constructed to ensure a water-tight IP67 protection standard.

Product Description

RS PRO 206-5204 Circular Connector is a high-quality industrial circular connector featuring 9 contacts with flange mounting, M20 size socket, and female contact gender. It is engineered to deliver reliable, waterproof connections with an IP67 rating, suitable for a wide range of demanding applications in industrial, medical, communications, and test & measurement sectors.

The connector is rated for operation at 400 V with a 5 A current capacity, making it compatible with various electrical systems requiring moderate power handling. The housing is constructed from chrome-plated brass, offering excellent durability and resistance to corrosion, while the brass contacts are gold plated to ensure outstanding electrical conductivity and minimal contact resistance.

Designed for secure and easy assembly, the 206-5204 features a push-pull mating type and solder termination, ensuring a stable and professional installation. It supports a cable outer diameter range of 8 to 12 mm and a panel-hole cut-out size of 20 mm, facilitating integration into existing equipment setups.

The operating temperature range of -40°C to +85°C allows this connector to perform reliably in harsh and fluctuating environmental conditions, including industrial and outdoor environments. Its robust construction supports over 500 mating cycles, sustaining many connection and disconnection operations with minimal wear.

The RS PRO SF2013 series, to which this product belongs, includes multiple pole configurations and termination options, making it versatile for customized connector systems where a high-performance, water-tight connection is crucial.

This connector provides a secure flange mount with push-pull coupling system. It features gold-plated brass contacts to maximize conductivity and durability. The IP67 rating ensures reliable waterproof and dust-tight protection.

The product operates safely across a wide temperature range from -40°C to 85°C. Suitable for industrial, medical, communication, and measuring devices needing robust connectivity. The connector supports easy solder termination with precise push-pull mating.

Cable outer diameter compatibility ranges from 8 to 12 mm for flexible installation. The flange design with panel-hole cut-out size 20 mm supports secure panel mount fixing.
