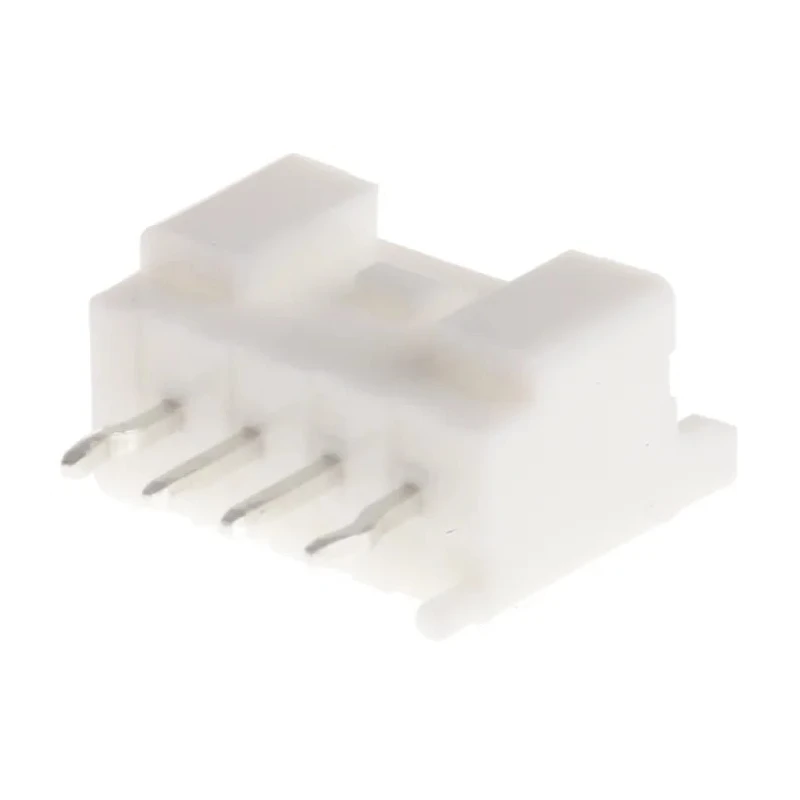

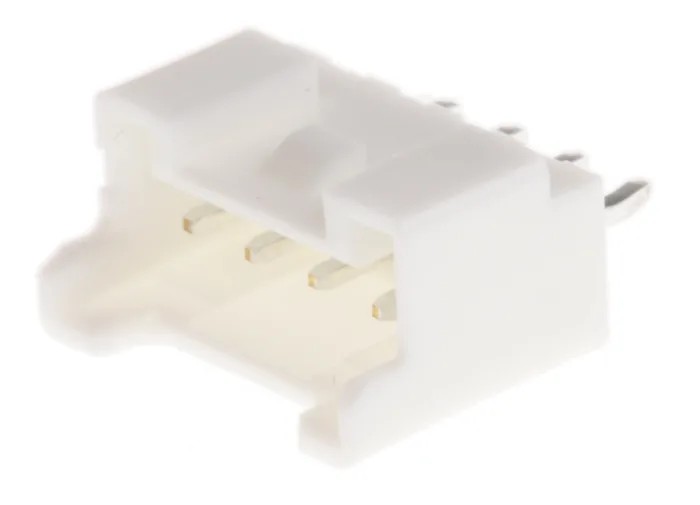

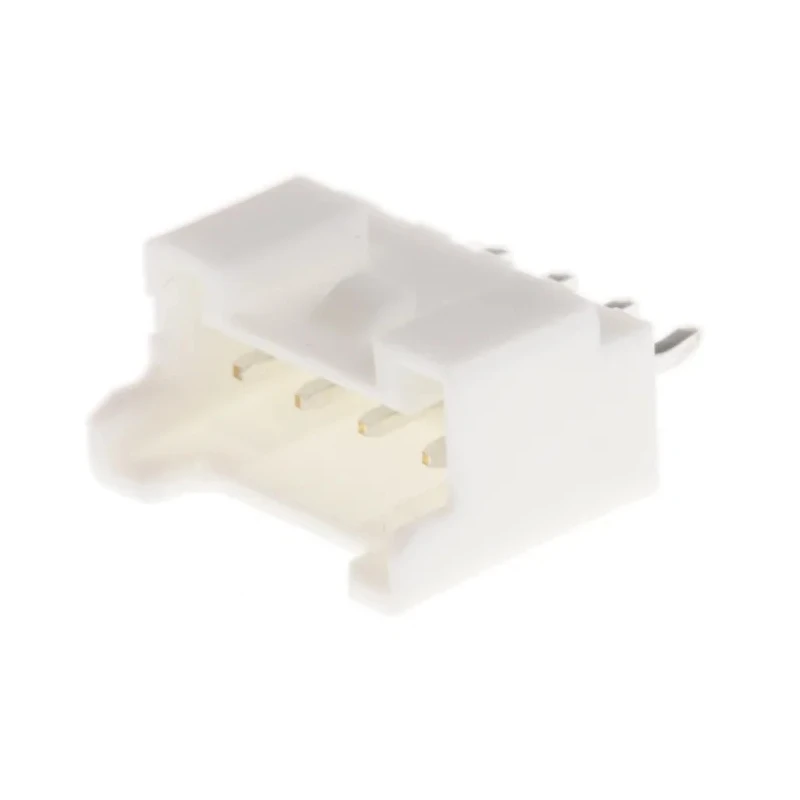

JST PA Series Straight Through Hole PCB Header, 4 Contacts, 2 mm Pitch, 1 Row, Shrouded B04B-PASK-1 (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PA Series Straight Through Hole PCB Header, 4 Contacts, 2 mm Pitch, 1 Row, Shrouded B04B-PASK-1 (LF) (SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	Malaysia
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B04B-PASK-1 (LF) (SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PA
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

Features a straight orientation for through hole mounting.
Constructed with copper alloy contacts plated with tin for durability.
Supports 3 Amp current and operates at up to 250 Volts.
Shrouded header includes polarising guides for secure and easy insertion.
Operating temperature range from -25°C to 85°C.
Designed with a 3 mm mating pin length to enhance connection stability.
Manufactured in Malaysia ensuring quality production standards.

Product Description

JST B04B-PASK-1 (LF) (SN) PCB Header is a high-quality, shrouded, straight through hole connector designed for reliable wire-to-board connections on a 2 mm pitch. With 4 male copper alloy contacts plated with tin, it supports a maximum current of 3A and voltage rating of 250V, suitable for various electronics components assembly.

The header's shrouded design incorporates polarising guides that ensure correct insertion and prevent misalignment, while its thumb depress locking mechanism avoids accidental disconnection during assembly or vibration.

Operating temperature range from -25°C to 85°C enables use in diverse industrial and electronic conditions.

These features make it ideal for applications in electronic manufacturing, industrial controls, communication assemblies, and PCB designs requiring compact, secure wire-to-board interfaces.

Features a straight orientation for through hole mounting. Constructed with copper alloy contacts plated with tin for durability. Supports 3 Amp current and operates at up to 250 Volts. Shrouded header includes polarising guides for secure and easy insertion.

Operating temperature range from -25°C to 85°C. Designed with a 3 mm mating pin length to enhance connection stability. Manufactured in Malaysia, maintaining high quality standards. This JST PA series connector complements a broad range of PCB connector housings and is essential for precise, secure electronic circuit assembly.

Discover more high-quality PCB Headers and electronic connectors in the Electronics & Electricals section on EnvMart for efficient and reliable electronic system construction.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a maximum current of 3 Amperes.

It operates at a voltage rating of up to 250 Volts.

The pitch size for this connector is 2 mm.

The operating temperature range is from -25°C to 85°C.

This header features 4 male contacts.

It is designed for through hole mounting.

The contacts are made of copper alloy and are plated with tin.

Yes, it includes polarising guides to ensure correct insertion and prevent misalignment.

The mating pin length is designed to be 3 mm.

It uses a solder termination type.

It is manufactured in Malaysia, ensuring quality production standards.

It is suitable for electronic manufacturing, industrial controls, communication assemblies, and PCB designs requiring secure wire-to-board connections.
