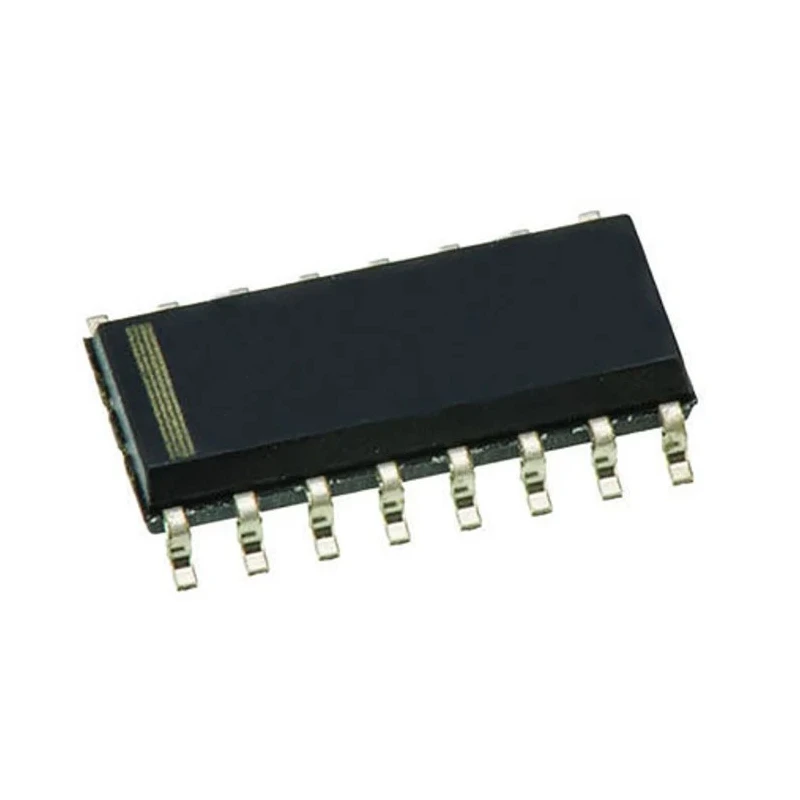

STMicroelectronics 2-Channel Line Transceiver CMOS/TTL Logic, 16-Pin SOP Package ST202BDR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 10mm |
| Model | ST202BDR |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | ST202B |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time @ CL | 100μs |
| Supply Current | 4mA |
Key Features
- Operates with a supply voltage ranging from 4.5V to 5.5V.
- Features a maximum propagation delay time of 100 microseconds at capacitive load.
- Handles two channels, ideal for line transceiver applications.
- Surface mount device with a compact 16-pin SOP package.
- Wide operating temperature range from -40°C to 85°C, suitable for industrial use.
- Low supply current of approximately 4mA ensures energy efficiency.
- Compatible with both CMOS and TTL logic families.
- Provides reliable single-ended input and CMOS/TTL output interface.
Product Description
STMicroelectronics ST202BDR is a 2-Channel Line Transceiver designed for RS-232 line driver and receiver applications with CMOS/TTL logic compatibility. It comes in a compact 16-pin SOP surface mount package, suitable for integration into automated and compact electronic systems.
This line transceiver operates reliably over a supply voltage range of 4.5V to 5.5V, offering stable performance with a maximum propagation delay time of 100 microseconds under capacitive load conditions. Its operation extends over a wide temperature range of -40°C to 85°C, making it suitable for harsh industrial and commercial environments.
Featuring a low operating supply current of 4mA, the ST202BDR contributes to energy-efficient design architectures. It supports single-ended inputs and provides CMOS/TTL compatible outputs, facilitating straightforward interfacing with digital logic circuits.
The compact 16-pin SOP package with dimensions of 10mm length, 4mm width, and 1.75mm height supports surface mounting on printed circuit boards, aiding high-density electronic assembly. This device is part of the ST202B series and fulfills versatile line transceiver requirements.
Common applications include industrial communication lines, data transmission interfaces, and embedded system serial communications. The device is optimized for use in electronic manufacturing, automation, and control systems requiring robust line interface ICs.
Operates at 4.5V to 5.5V supply voltage. Maximum propagation delay time is 100μs at capacitive load. Supports two transmission channels. Surface mount 16-pin SOP package. Wide operating temperature range from -40°C to 85°C.
Low supply current of 4mA for efficient power usage. Compatible with CMOS/TTL logic families. Compact footprint (10mm x 4mm x 1.75mm). Explore the Electronics & Electricals category on EnvMart for more semiconductor Line Interface ICs and related solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This line transceiver operates with a supply voltage ranging from 4.5V to 5.5V.
The maximum propagation delay time is 100 microseconds at capacitive load conditions.
It supports two transmission channels, making it suitable for line transceiver applications.
This model comes in a compact 16-pin SOP (Small Outline Package) suitable for surface mounting.
The operating temperature range is from -40°C to 85°C, making it suitable for industrial environments.
It has a low supply current of approximately 4mA, contributing to energy efficiency.
This model is compatible with both CMOS and TTL logic families.
The dimensions of this unit are 10mm in length, 4mm in width, and 1.75mm in height.
It utilizes a single-ended input type for its operation.
Common applications include industrial communication lines, data transmission interfaces, and embedded system serial communications.
The country of origin for this product is India.
This model is part of the ST202B series of line transceiver ICs.
