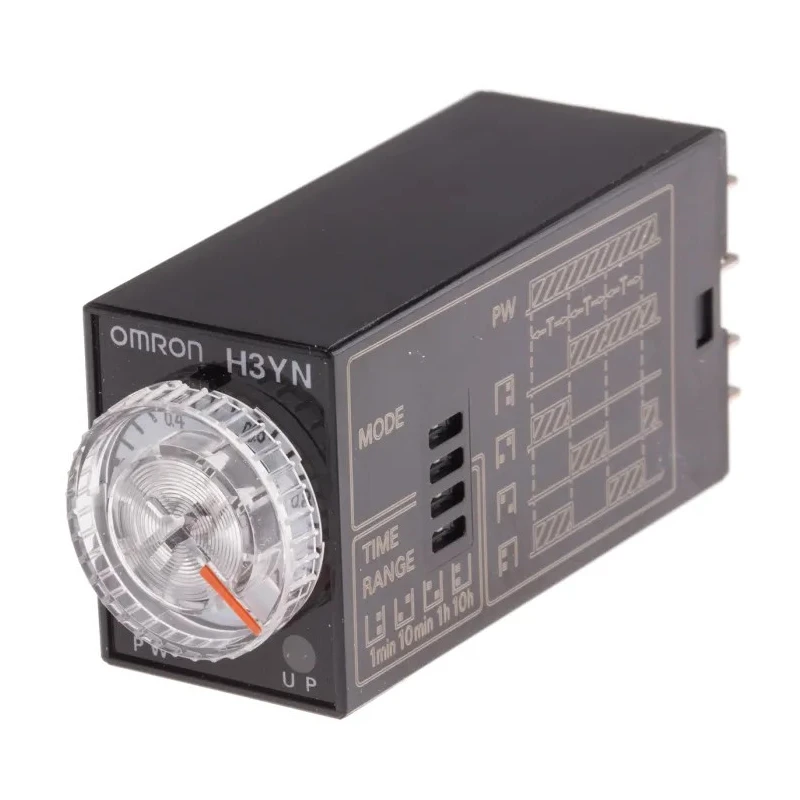

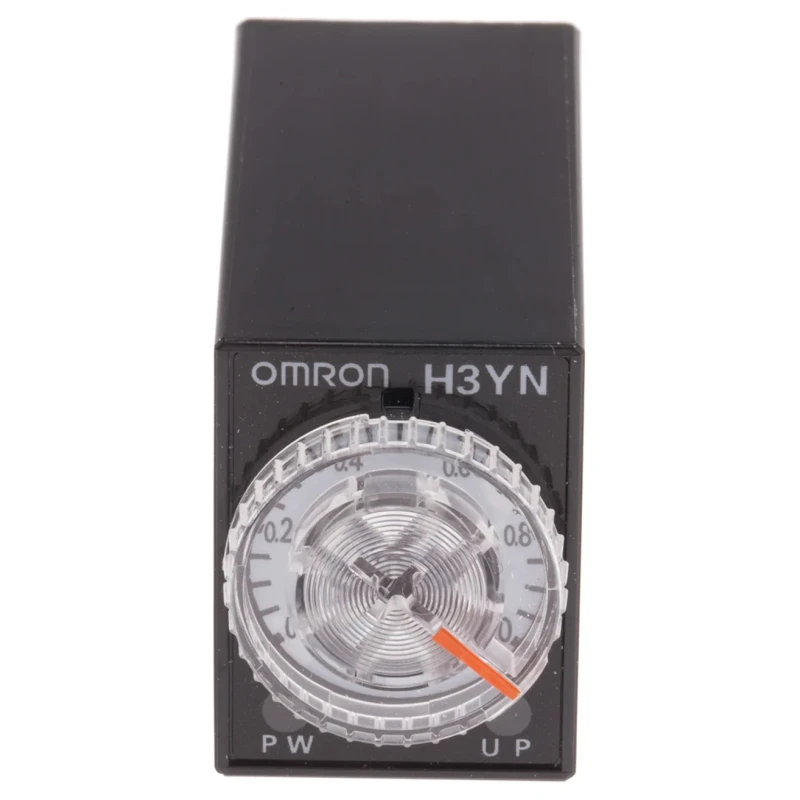

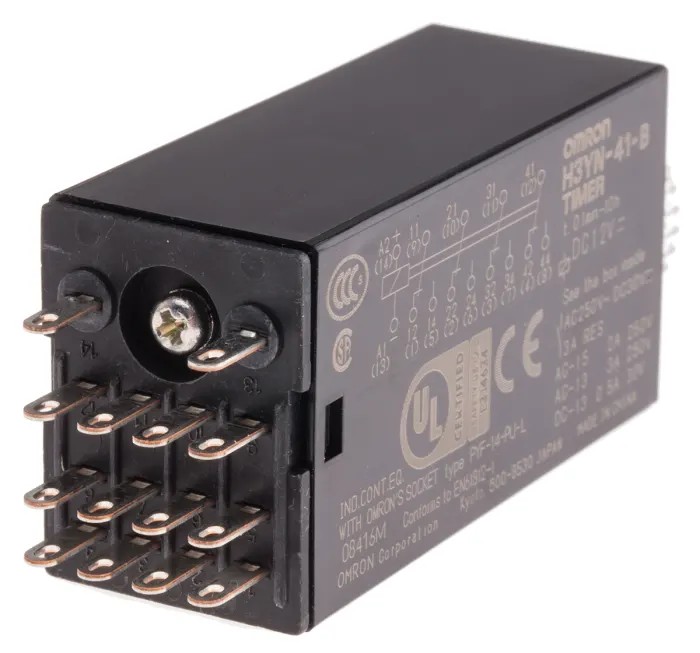

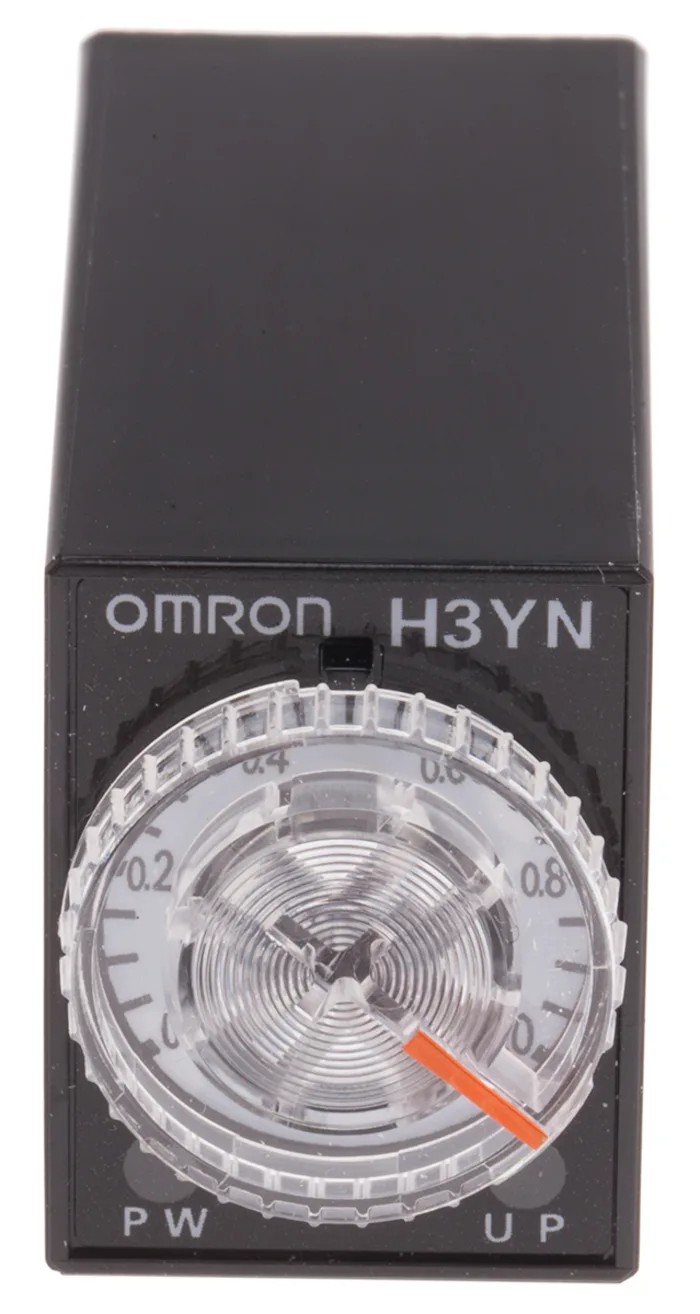

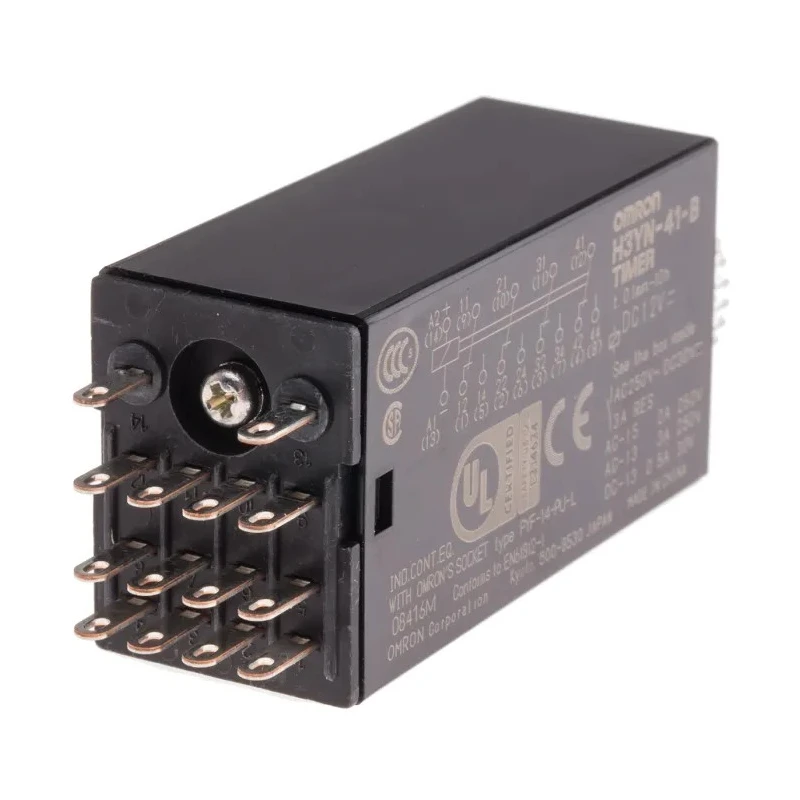

Omron Multifunction DIN Track Solid State Timer 4 NO/4 NC Contacts, 0.1 min to 10 h, 12V AC / 125 V DC, 3A Contact H3YN

Free Delivery in India | Lowest Global Shipping Charges

Omron Multifunction DIN Track Solid State Timer 4 NO/4 NC Contacts, 0.1 min to 10 h, 12V AC / 125 V DC, 3A Contact H3YN

Name: Omron Multifunction DIN Track Solid State Timer 4 NO/4 NC Contacts, 0.1 min to 10 h, 12V AC / 125 V DC, 3A Contact H3YN
Brand: Omron
SKU: 183448
Price: 90.68 USD
Availability: InStock



Category Timer Relays Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	28mm
Function	Timer
Length	21.5mm
Model	H3YN
IP Rating	IP40
Mode	Multifunction
Width	56.6mm
Mount Type	DIN Track
Series	H3YN
Maximum Operating Temperature	55°C
Contact Configuration	4 NO/4 NC
Minimum Operating Temperature	-10°C
Time Range	0.1 min to 10 h
Terminal type	Push-in
Number of Contacts	4
Number of Timer Functions	Multifunction
Switching Voltage	250V ac
Contact Current	3A
Supply DC Voltage	125 V dc
Supply AC Voltage	12V ac

Key Features

Supports 4 normally open and 4 normally closed contacts for complex control logic.
Operates with supply voltages of 12V AC and 125V DC for versatile use.
Rated contact current of 3A for moderate load applications.
Compact DIN rail mount design with push-in terminals for quick installation.
Operating temperature range from -10°C to +55°C ensures reliable performance in varied environments.
Switching voltage capacity up to 250V AC supports typical industrial control circuits.
IP40 protection rating safeguards internal components from solid foreign objects.
Certified with CSA, EN, IEC, CE, UL, CCC, and Lloyds standards for global industrial compliance.

Product Description

The Omron H3YN Series DIN Track Solid State Timer is an electronic timing solution designed for industrial and commercial control panels requiring precise multifunction timing capabilities. This timer supports a broad time range from 0.1 minutes up to 10 hours, making it ideal for various automation processes.

Equipped with a 4 NO / 4 NC contact configuration and supporting a moderate contact current rating of 3A, it enables complex control logics without the need for additional relays. The device operates on dual supply voltage inputs of 12V AC and up to 125V DC, allowing integration with diverse control systems.

Its compact footprint (56.6 mm width, 28 mm height, 21.5 mm length) fits standard DIN rail mounting, facilitating easy installation and maintenance. Push-in terminal connections reduce wiring time and simplify replacements or reconfigurations without additional tools.

Designed for robustness, the timer functions reliably across an operating temperature range of -10°C to 55°C. Its IP40 enclosure rating provides essential protection from non-solid foreign objects, ensuring longevity in industrial environments.

The timer is approved by leading international safety and performance standards including CSA C22.2 No. 14, EN 61812-1, IEC 60664-1, CE, UL 508, CCC, and Lloyds, underscoring its suitability for regulated applications.

Supports wide timing flexibility from 0.1 min to 10 h. 4 NO/4 NC contact arrangement for advanced control. Push-in terminals for quick and tool-free wiring. 3A contact rating for moderate electrical loads. Compact DIN rail mount for streamlined panel integration.

Operating temperature range from -10 to +55 °C. Switching capability up to 250 V AC. IP40 dust protection rating. Multiple international approvals including UL and CE.

This timer relay is widely used in sequence control for conveyor systems, delay functions in motor control, timed signalling in manufacturing equipment, and automation of lighting and heating systems in industrial plants. Its multifunction capabilities make it a versatile choice for electrical and automation engineers seeking reliable performance and compliance.
