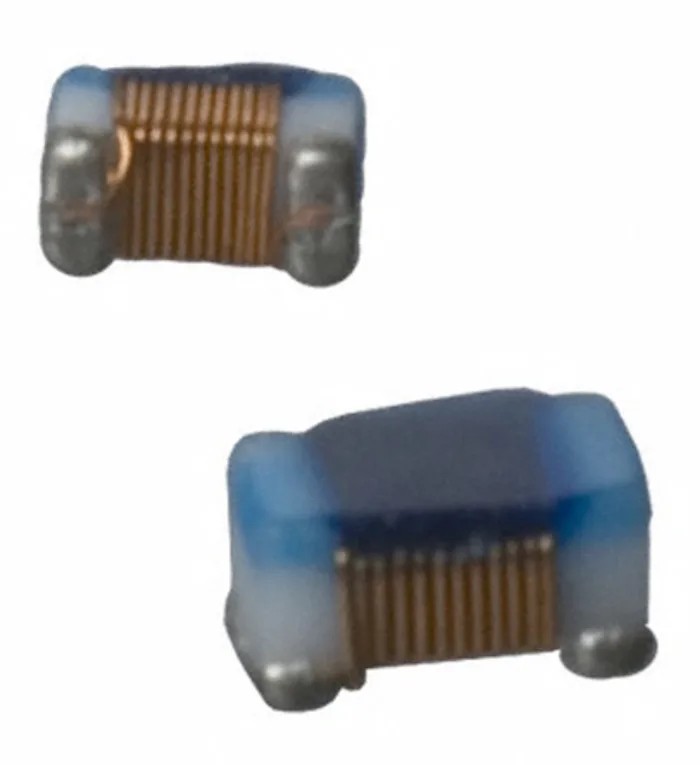

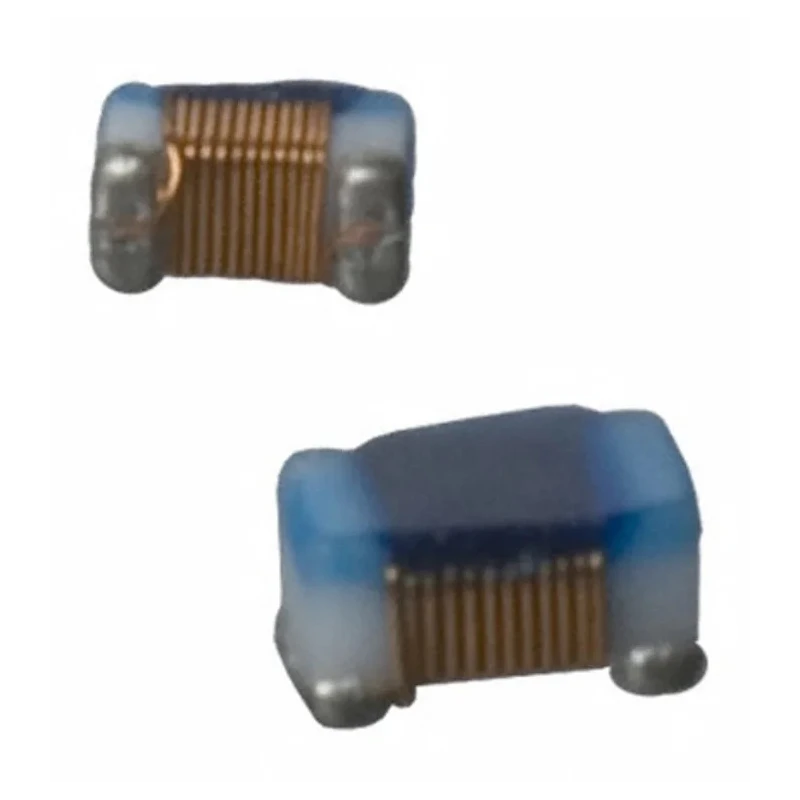

Murata Wirewound Surface Mount Inductor, 0.27 μH ±5 %, 750 mA Idc, Ferrite Core, 1608 Package LQW18CNR27J00D

Murata LQW18CNR27J00D is a wirewound surface mount inductor with a ferrite core providing an inductance of 0.27 μH with ±5 % tolerance. Designed in a compact 1608 package size, this inductor has a length of 1.6mm and a height and depth of 0.8mm each, making it suitable for high-density PCB layouts.

This inductor features a high Q value due to its wirewound construction, offering excellent signal attenuation within the pass band of RF filter circuits. It supports a maximum DC current of 750 mA, accompanied by a low DC resistance of 160 mΩ, which contributes to high efficiency and low heat generation in choke circuits.

Operating temperature ranges from -40°C to 85°C ensure stable performance in various industrial and commercial environments. The component is non-shielded with two pins soldered onto the PCB, facilitating straightforward assembly.

With a maximum self-resonant frequency of 660 MHz, the LQW18CNR27J00D is suitable for RF applications, particularly in antenna matching circuits to maintain optimal reception and transmission sensitivity. The ferrite core enhances magnetic characteristics while the RoHS-compliant molded design ensures durability and environmental safety.

Compact 1608 package suitable for surface mount technology. Ferrite core wirewound design for high Q factor and signal integrity. Low DC resistance for efficient current handling. Wide thermal operating range ensuring reliability in various conditions.

High frequency performance up to 660 MHz self-resonant frequency. Compliant with RoHS environmental standards. Ideal for choke circuits and RF antenna matching applications.

This inductor is widely used in electronics manufacturing, communication devices, and other industrial applications requiring precision inductors with stable inductance and low losses. For further product options, explore the Surface Mount Inductors category on EnvMart.
