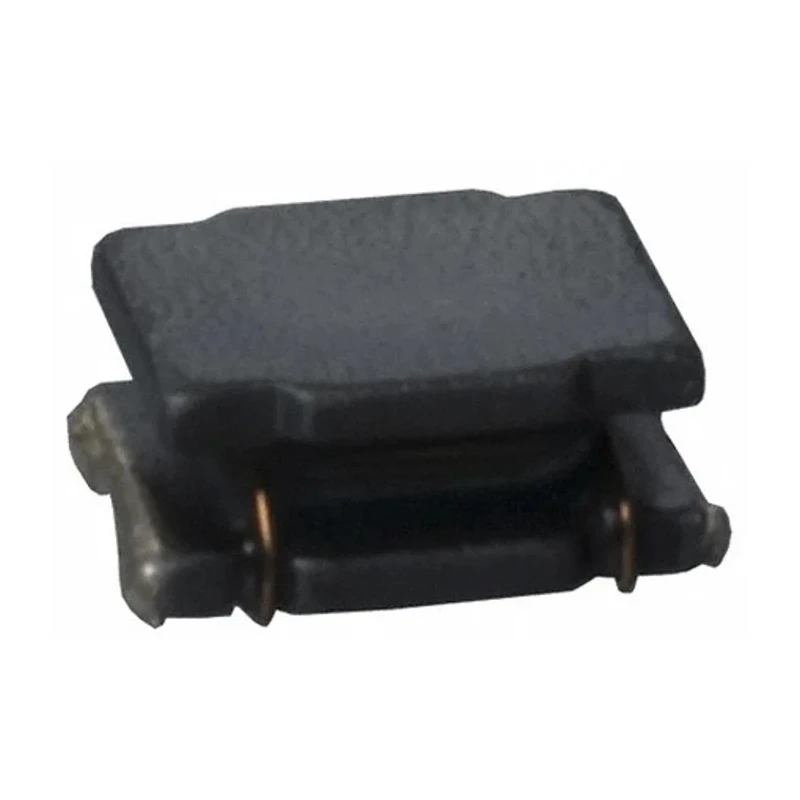

Murata LQH 3225 Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20 % 650 mA Idc LQH32PN220MNCL
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 1.55mm |
| Length | 3.2mm |
| Model | LQH32PN220MNCL |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 3225 |
| Maximum DC Current | 650mA |
| Pin Count | 2 |
| Maximum DC Resistance | 685mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 20MHz |
| Inductor Construction | Wirewound |
Key Features
- The inductor is constructed with wirewound technology on a ferrite core to ensure stable magnetic characteristics.
- Its compact 3225 package size measures 3.2 mm in length, 2.5 mm in depth, and 1.55 mm in height.
- The device supports a maximum DC resistance of 685 mΩ and is RoHS compliant.
- It is supplied in embossed tape packaging for ease of automatic placement during manufacturing.
- Operates reliably within -40°C to 125°C operating temperature range.
- Shielding enhances performance by reducing electromagnetic interference.
- The inductor has a maximum self-resonant frequency of 20 MHz suitable for power supply booster circuits.
- Available with a solder termination style compatible with surface-mount technology (SMT).
Product Description
Murata LQH32PN220MNCL is a shielded wirewound surface mount inductor designed with a ferrite core, offering an inductance of 22 μH with a tolerance of ±20 % and capable of handling a maximum DC current of 650 mA. This compact 3225 size inductor is ideal for applications requiring stable inductance and high reliability.
The inductor construction employs high-quality copper wire wound around a ferrite core, enhanced with a resin coating that improves mechanical strength and durability. The shielding effectively minimizes electromagnetic interference, which is critical in sensitive electronic circuits.
Dimensions of the inductor are 3.2 mm in length, 2.5 mm in depth, and 1.55 mm in height, fitting compact SMT footprints. Its maximum DC resistance of 685 mΩ and maximum operating temperature of 125°C provide robust performance in demanding environments.
This component is RoHS compliant, ensuring environmental safety and regulatory adherence. Packaging in embossed tape facilitates efficient automated assembly.
Murata LQH32PN220MNCL inductors are widely used in power supply booster circuits and are suitable for electronic devices such as digital cameras, mobile phones, televisions, and gaming machines. The maximum self-resonant frequency of 20 MHz supports a range of frequency applications.
Wirewound construction on ferrite core for stable inductance. Compact 3225 package designed for SMT applications. Shielded to reduce electromagnetic interference. Wide operating temperature range from -40°C to 125°C. Maximum DC current rating of 650 mA.
RoHS compliant construction ensures environmental safety. Embossed tape packaging compatible with automated pick-and-place machines.
This surface mount inductor is suitable for industrial, communications, consumer electronics, and manufacturing sectors. For additional components and Surface Mount Inductors by Murata, browse EnvMart’s comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 μH with a tolerance of ±20 %.
This inductor can handle a maximum DC current of 650 mA.
The dimensions of this inductor are 3.2 mm in length, 2.5 mm in depth, and 1.55 mm in height.
The maximum operating temperature for this model is 125°C.
The minimum operating temperature of this inductor is -40°C.
The maximum DC resistance is rated at 685 mΩ.
This inductor is constructed with a ferrite core.
It is supplied in embossed tape packaging, which facilitates automatic placement during manufacturing.
The maximum self-resonant frequency is 20 MHz.
The termination style for this model is solder, compatible with surface-mount technology (SMT).
Yes, this inductor is RoHS compliant, ensuring it meets environmental safety standards.
This inductor is suitable for applications in power supply booster circuits and various electronic devices such as digital cameras, mobile phones, televisions, and gaming machines.
