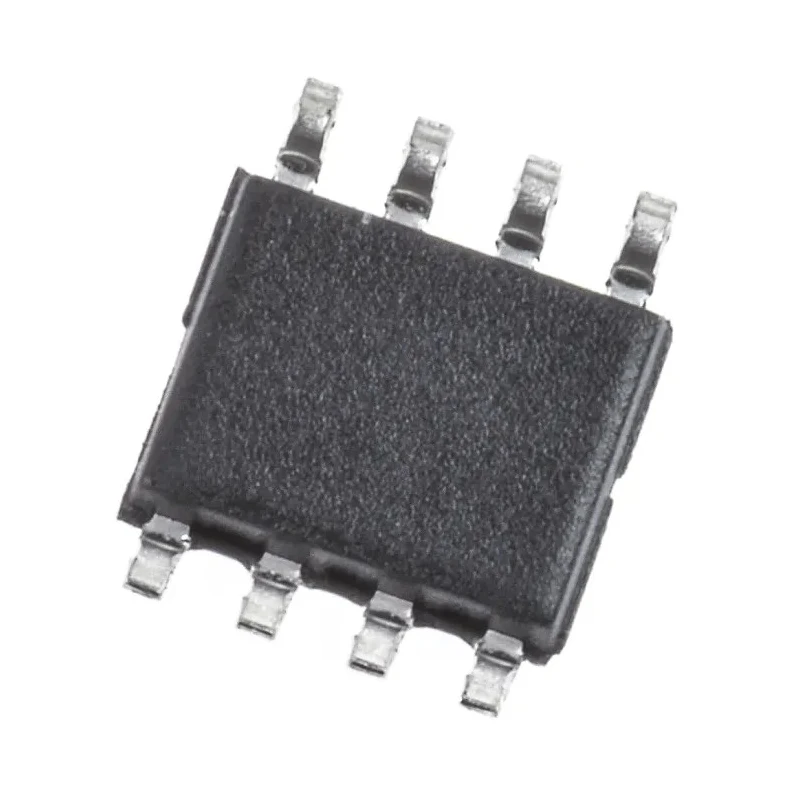

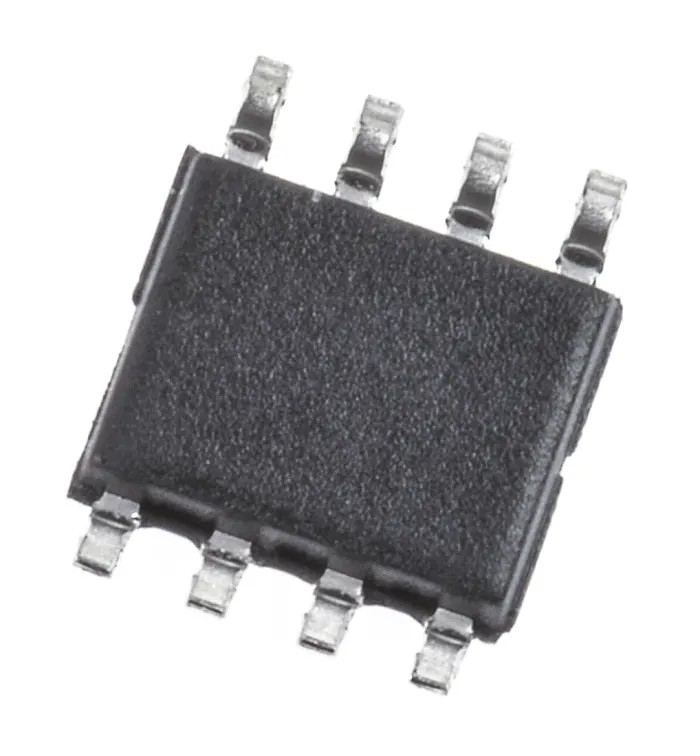

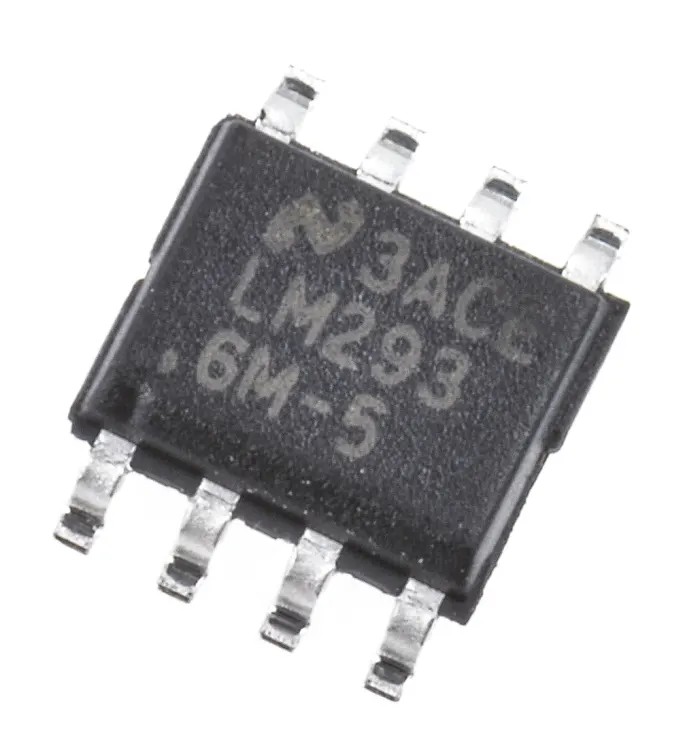

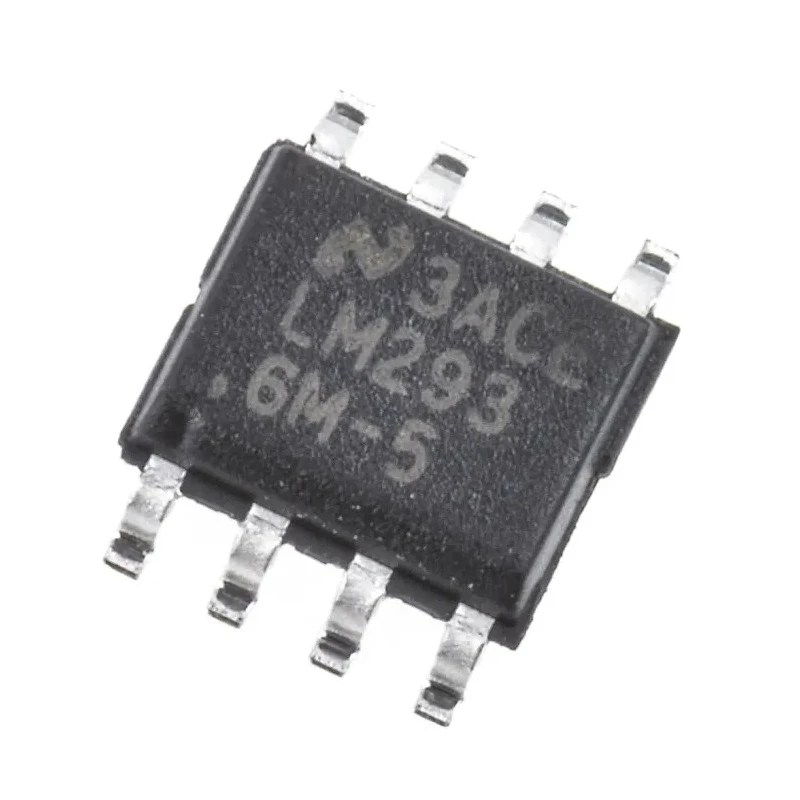

Texas Instruments Voltage Regulator 40V SOIC 8-Pin LM2936M-5.0/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | LM2936M-5.0/NOPB |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | LM2936 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Quiescent Current | 15μA |
| Minimum Input Voltage | 4V |
| Pin Count | 8 |
Key Features
- This voltage regulator supports an input voltage range from 4V to 40V.
- It features a low quiescent current of 15μA for efficient power management.
- The device has a maximum operating temperature of 125°C, ensuring reliability under harsh conditions.
- Compact dimensions of 4.9mm length, 3.9mm width, and 1.45mm height make it suitable for space-constrained applications.
- Designed for positive polarity and surface mounting on PCBs.
- Offers excellent line voltage regulation and high power supply ripple rejection.
- Ideal for use in industrial electronics, communications equipment, and power management systems.
- Complies with no specific certifications but is RoHS compliant.
Product Description
Texas Instruments LM2936M-5.0/NOPB is a low dropout (LDO) linear voltage regulator featuring a stable 5.0V output voltage, packaged in a SOIC 8-pin surface mount component. Its wide input voltage range from 4V up to 40V and low quiescent current of 15μA enable efficient power usage in demanding electronic applications.
The regulator is built to sustain a maximum operating temperature of 125°C, ensuring operational stability even in elevated temperature environments. Its compact form factor with dimensions 4.9mm (length) x 3.9mm (width) x 1.45mm (height) makes it ideal for integration into compact printed circuit boards.
This positive polarity device is optimized for surface mount technology and provides excellent line voltage regulation and power supply ripple rejection, suitable for applications requiring stable and clean voltage supply.
Common uses include industrial electronics, communications equipment, instrumentation, and embedded systems requiring reliable 5V regulation with minimal current drain. Although it has no specific automotive standard or additional approvals, it is RoHS compliant ensuring environmentally friendly manufacturing.
This voltage regulator supports an input voltage range from 4V to 40V. Low quiescent current of 15μA enables energy-efficient operation. Compact SOIC 8-pin surface mount package. Maximum operating temperature of 125°C ensures reliability.
Compact dimensions for use in space-constrained applications. Provides high power supply ripple rejection and excellent line regulation. Positive polarity configuration for standard applications. Ideal for industrial, laboratory, and communication electronic devices.
This Texas Instruments LM2936M-5.0/NOPB Voltage Regulator is a reliable component for power management IC solutions requiring steady, efficient 5-volt output in industrial and commercial electronics.
Browse the Electronics & Electricals category at EnvMart for more semiconductor and power management components with detailed specifications and comprehensive datasheets.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This voltage regulator supports an input voltage range from 4V to 40V.
It features a low quiescent current of 15μA, enabling efficient power management.
The device has a maximum operating temperature of 125°C, ensuring reliability under harsh conditions.
The compact dimensions are 4.9mm in length, 3.9mm in width, and 1.45mm in height, making it suitable for space-constrained applications.
This model is designed for surface mounting on printed circuit boards (PCBs).
It provides a stable output voltage of 5.0V.
This voltage regulator is ideal for use in industrial electronics, communications equipment, and power management systems.
It is packaged in a SOIC 8-pin surface mount component.
The LM2936M-5.0/NOPB is designed for positive polarity applications.
It offers excellent line voltage regulation and high power supply ripple rejection.
Yes, it is RoHS compliant, ensuring environmentally friendly manufacturing.
This voltage regulator has a pin count of 8.
