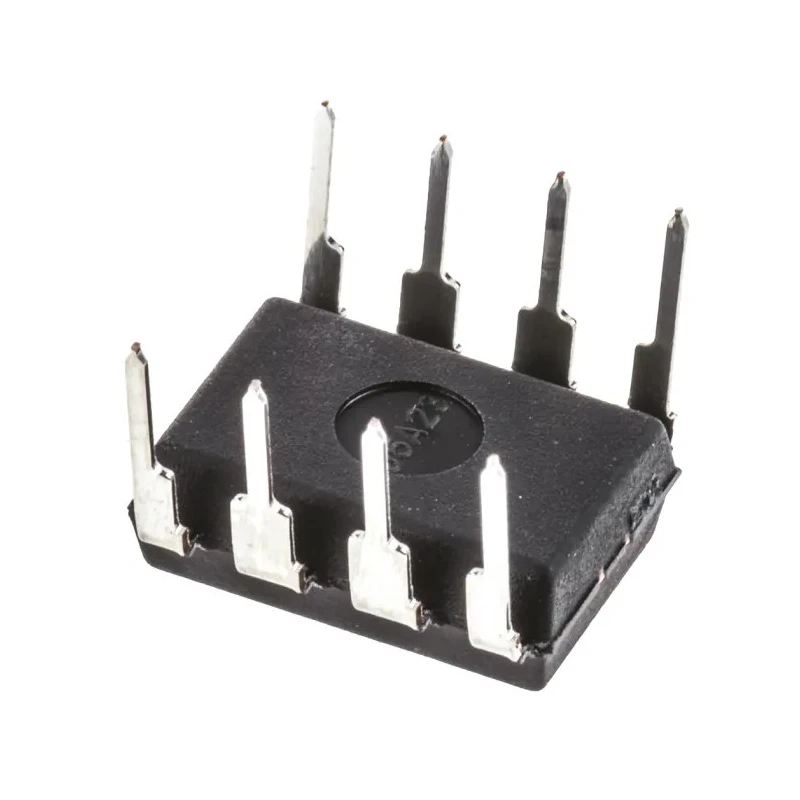

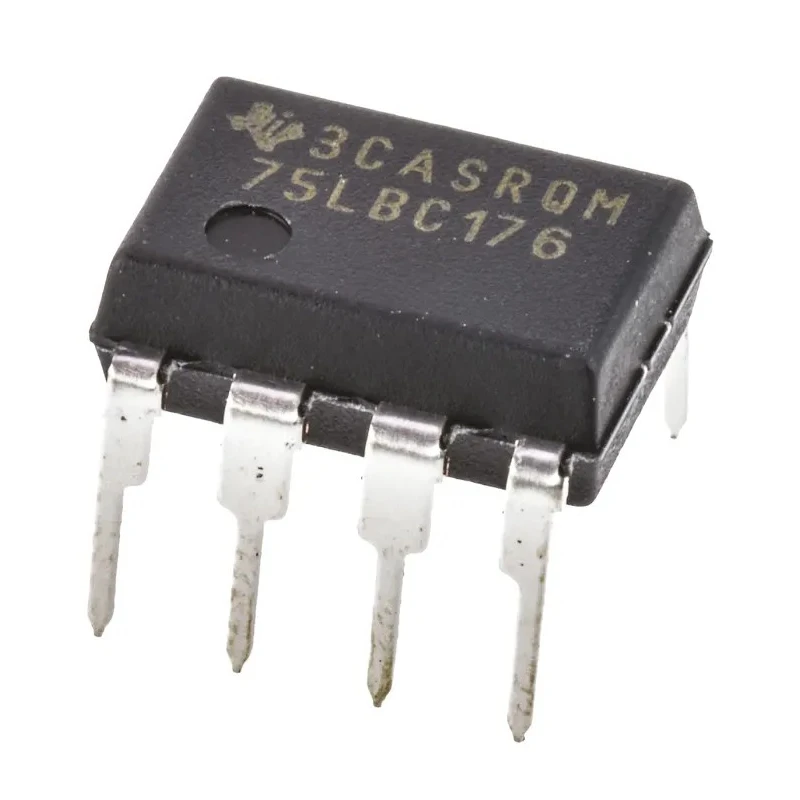

Texas Instruments Line Transceiver Differential Non-Inverting 8-Pin PDIP SN75LBC176P

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Line Transceiver Differential Non-Inverting 8-Pin PDIP SN75LBC176P

Name: Texas Instruments Line Transceiver Differential Non-Inverting 8-Pin PDIP SN75LBC176P
Brand: Texas Instruments
SKU: 181948
Price: 6.03 USD
Availability: InStock



Category Line Interface ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	5.08mm
Length	10.16mm
Model	SN75LBC176P
Width	6.6mm
Mount Type	Through Hole
Output type	Differential
Series	SN75LBC176
Input Type	Differential
Maximum Operating Temperature	70°C
Package Type	PDIP
Minimum Operating Temperature	0°C
Polarity	Non-Inverting
IC Type	Line Transceiver IC
Number Of Channels	1
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.25V
Logic Family	SN75
Logic Function	Bus Transceiver
Minimum Supply Voltage	4.75V
Maximum High Level Output Current	-60mA
Maximum Propagation Delay Time @ CL	33ns
Supply Current	1.75mA
Maximum Low Level Output Current	60mA

Key Features

Operates with a voltage supply range from 4.75V to 5.25V.
Maximum propagation delay time of 33ns ensures high-speed data transmission.
Single channel differential input and output supports robust signal integrity.
Designed for through-hole mounting in compact 8-pin PDIP package.
Functional temperature range from 0°C to 70°C for industrial applications.
Supply current is low at 1.75mA, optimizing power efficiency.
Capable of driving maximum output currents of ±60mA.
Meets AEC-Q100 automotive standard for reliability in harsh environments.

Product Description

Texas Instruments SN75LBC176P is a high-speed line transceiver integrated circuit designed for differential, non-inverting bus transceiver applications. Packaged in an 8-Pin PDIP footprint, it supports a supply voltage range from 4.75V up to 5.25V, offering optimized performance in demanding environments.

This line transceiver features a single channel with differential input and output types, delivering a maximum propagation delay time of 33ns at a load capacitance, which supports high data transmission speeds necessary for industrial communication protocols such as RS-485.

The device's supply current is nominally 1.75mA ensuring efficient power usage. Maximum high-level and low-level output currents are ±60mA, providing strong drive capabilities for bus lines. It operates reliably over a temperature range from 0°C to 70°C, suitable for various industrial and automotive applications, including those requiring compliance with the AEC-Q100 automotive standard for component quality.

With dimensions of 10.16mm in length, 6.6mm in width, and a height of 5.08mm, this component easily integrates through-hole mounting boards. The SN75LBC176P series is known for its robust performance in line driver and receiver functionality for RS-485 networks and similar serial communication systems requiring fast and accurate signal processing.

Operates between 4.75V and 5.25V supply voltage. Maximum data rate speeds exceeding 10 Mbit/s. Non-inverting differential input and output. Compliance with AEC-Q100 automotive standard for high reliability. Through-hole mounting for easy PCB assembly.

Compact 8-Pin PDIP package. Industrial operating temperature range of 0°C to 70°C. Low supply current of 1.75mA enhances power efficiency. Maximum output current ±60mA for strong signal drive. Ideal for RS-485 line driver and receiver applications.

Suitable for use in industrial automation, automotive communication systems, instrumentation, and other electronic applications requiring robust and high-speed differential line transceiver ICs. Browse the Electronics & Electricals category at EnvMart for more semiconductor and interface IC products.
