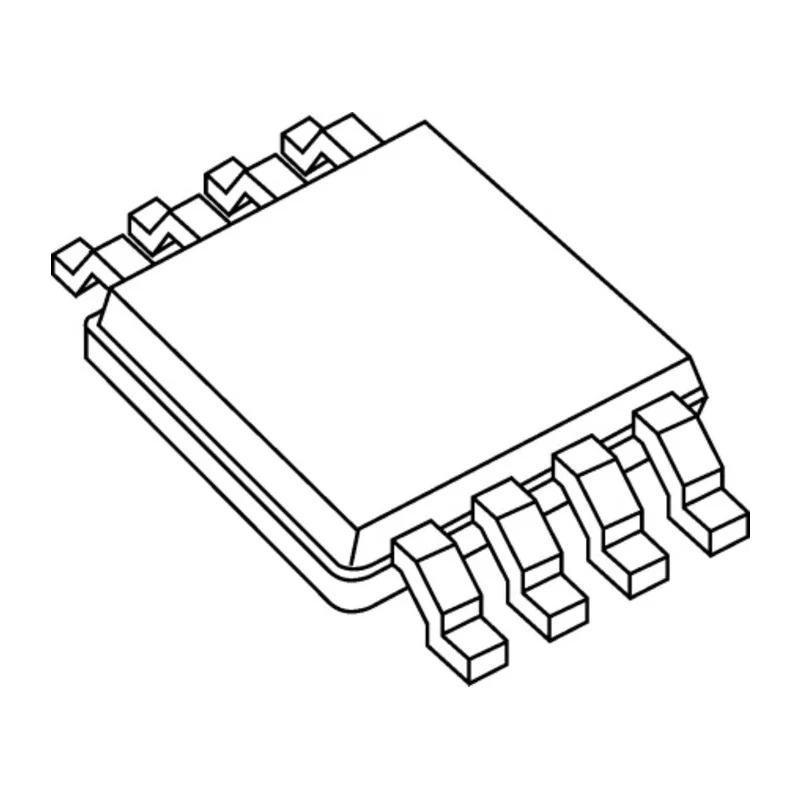

Renesas Electronics Line Transceiver CMOS/TTL Bipolar 8-Pin MSOP ISL3179EIUZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 850μm |
| Length | 3mm |
| Model | ISL3179EIUZ |
| Width | 4.9mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | ISL3179E |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Bipolar |
| IC Type | Line Transceiver IC |
| Pin Count | 8 |
| Maximum Supply Voltage | 7V |
| Logic Family | CMOS |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 300mV |
| Maximum Propagation Delay Time @ CL | 4ns |
| Supply Current | 4mA |
Key Features
- Operates with a minimum supply voltage of 300mV ensuring low power usage.
- Max supply voltage is rated at 7V suitable for standard industrial applications.
- Features a maximum propagation delay time of 4ns at load capacitance for high-speed communication.
- Designed for operation between -40°C and 85°C for durable performance in varied environments.
- Compact 8-pin MSOP surface mount package with dimensions 3mm x 4.9mm x 850μm.
- Supports differential input type with CMOS/TTL output ensuring compatibility with diverse logic families.
- Bipolar polarity type to handle line transceiver signals efficiently.
- Supply current is maintained at a low 4mA for energy efficient operation.
Product Description
Renesas Electronics ISL3179EIUZ is a line transceiver IC featuring a CMOS/TTL output and bipolar polarity, ideal for bus transceiver applications requiring reliable and high-speed data transmission.
This device operates with a supply voltage range from 300mV minimum to 7V maximum, capable of withstanding industrial operating temperatures from -40°C to 85°C. Featuring a maximum propagation delay of 4ns at standard load capacitance, the transceiver supports rapid signal processing necessary for modern electronic communication systems.
The 8-pin MSOP package, measuring 3mm in length, 4.9mm in width, and 850μm in height, provides a compact footprint for surface mounting on printed circuit boards. Equipped with a differential input and CMOS/TTL output, it enables seamless integration with a variety of logic families, ensuring compatibility and robust data handling.
This line transceiver draws a supply current of just 4mA, maintaining low power consumption vital for efficient industrial and electronic systems. Though not meeting automotive standards, this product excels in general industrial electronics applications within semiconductors sector under line interface ICs.
Operates at supply voltages from 0.3V to 7V for versatile power environments. Compact 8-pin MSOP package ensures space-efficient PCB design. Maximum propagation delay of 4ns supports high-speed communication. Wide operating temperature range enables reliable function in diverse conditions.
Bipolar CMOS/TTL line transceiver suitable for differential bus signalling. Low 4mA supply current reduces power consumption in devices. Surface mount mount type facilitates automated manufacturing processes. Series ISL3179E offers reliable performance statistics.
This Renesas Electronics ISL3179EIUZ line transceiver is widely used in electronic component manufacturing, industrial automation, telecommunications, and network equipment applications requiring robust and efficient data transmission over bus lines.
Explore the full range of semiconductors and Line Interface ICs suitable for complex electronics development projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This line transceiver operates with a supply voltage range from a minimum of 300mV to a maximum of 7V, making it suitable for various power environments.
The maximum propagation delay time for the ISL3179EIUZ is 4ns at standard load capacitance, supporting high-speed communication.
This model is designed to operate within a temperature range of -40°C to 85°C, ensuring reliable performance in diverse environments.
It features a CMOS/TTL output type, ensuring compatibility with various logic families for effective data handling.
The ISL3179EIUZ has an 8-pin configuration and comes in a compact MSOP package, measuring 3mm x 4.9mm x 850μm.
This line transceiver maintains a low supply current of 4mA, contributing to energy-efficient operation in electronic systems.
Yes, it is designed as a surface mount type, facilitating automated manufacturing processes on printed circuit boards.
It supports a differential input type, which is essential for bus transceiver applications requiring reliable data transmission.
The ISL3179EIUZ is manufactured in India.
This line transceiver is widely used in electronic component manufacturing, industrial automation, telecommunications, and network equipment applications.
The logic function of this model is that of a bus transceiver, enabling effective communication in electronic systems.
It belongs to the ISL3179E series, which is designed for reliable performance in line transceiver applications.
