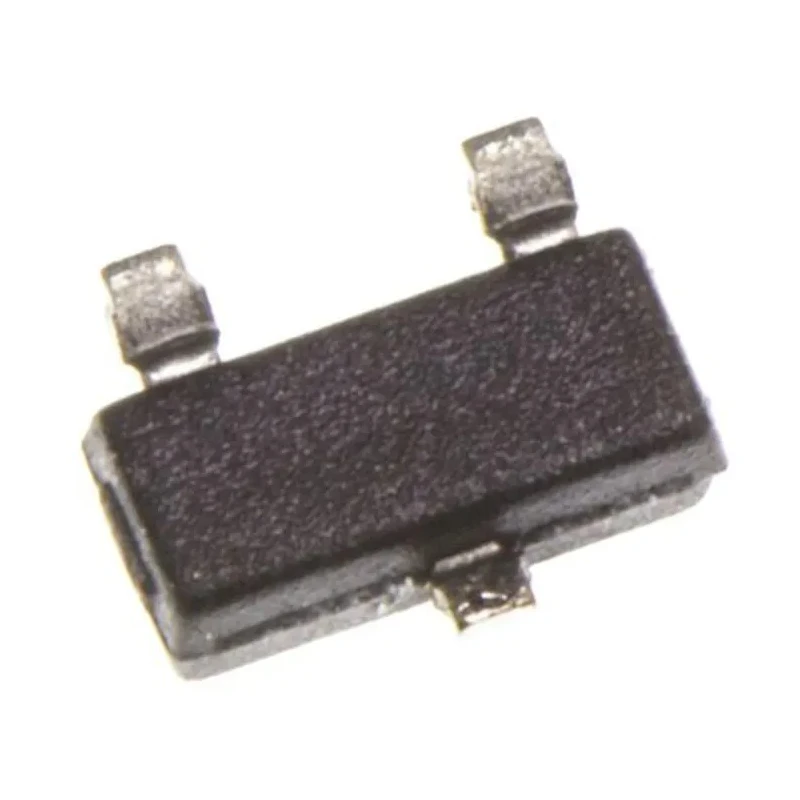

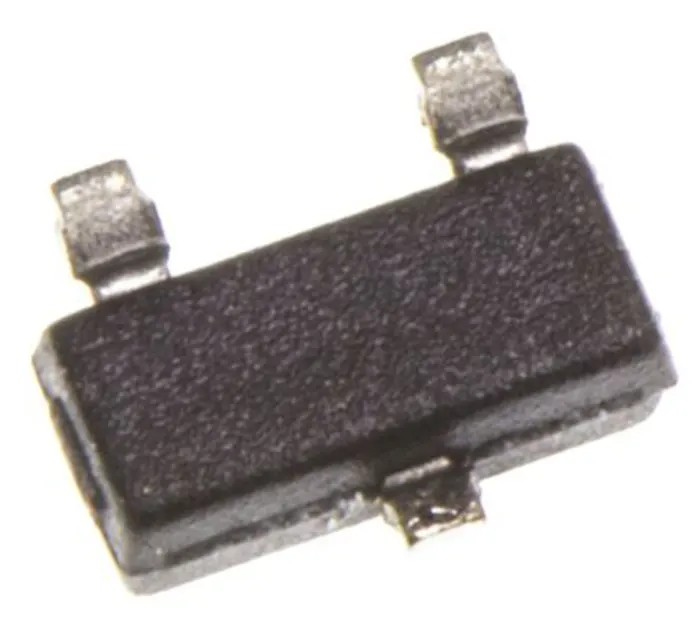

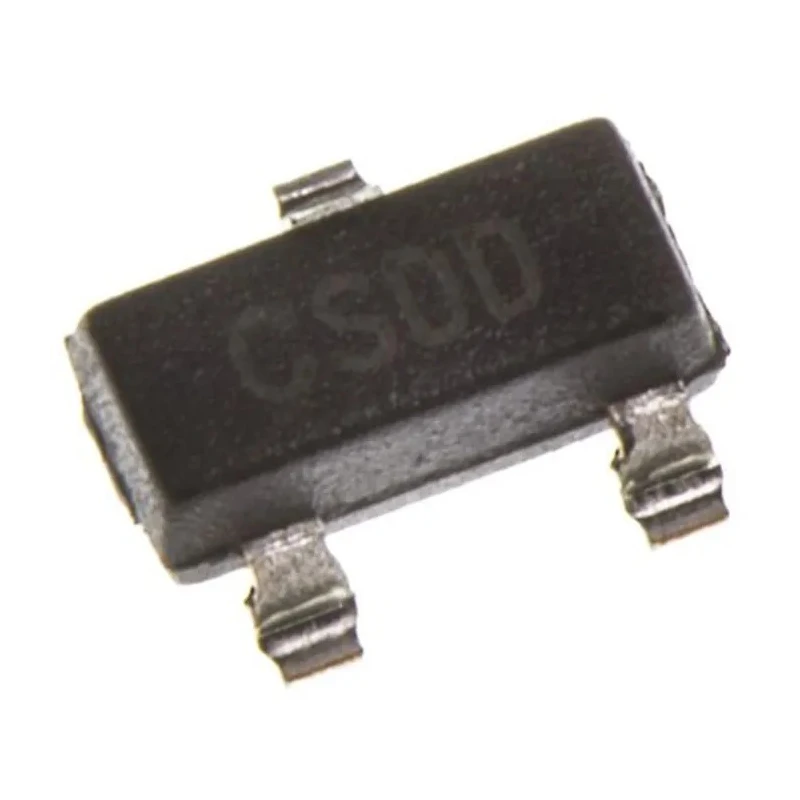

Renesas Electronics Fixed Series Voltage Reference 5V ±0.2% Initial Accuracy 3-Pin SOT-23 ISL21080CIH330Z-TK
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 950μm |
| Length | 2.92mm |
| Model | ISL21080CIH330Z-TK |
| Mount Type | Surface |
| Output type | Fixed |
| Series | ISL21080 |
| Temperature Coefficient | 50 ppm/°C |
| Output Current | 7mA |
| Topology | Series |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Load Regulation | 350 μV/mA |
| Minimum Operating Temperature | -40°C |
| Reference Type | Fixed |
| Maximum Input Voltage | 5.5V |
| Line Regulation | 350 μV/V |
| Minimum Input Voltage | 2V |
| Pin Count | 3 |
| Reference Voltage | 5V |
| Initial Accuracy | ±0.2 % |
Key Features
- This device features a fixed reference voltage of 5V suitable for stable power management applications.
- Its initial accuracy of ±0.2% ensures reliable voltage precision for sensitive circuits.
- The voltage reference has a low temperature coefficient of 50 ppm/°C for consistent performance across temperature variations.
- It supports surface mount type with a compact SOT-23 package for space-saving PCB layouts.
- Maximum input voltage rating of 5.5V and an output current up to 7mA provide robust operation.
- Operating temperature range from -40°C to 85°C allows for diverse environmental applications.
- Load and line regulation values at 350 μV/mA and 350 μV/V respectively ensure stable voltage under varying loads and input conditions.
- The device is designed with a series topology and fixed output type for straightforward integration into power management systems.
Product Description
Renesas Electronics ISL21080CIH330Z-TK is a fixed series voltage reference device designed to deliver a stable and precise 5V output voltage with an initial accuracy of ±0.2%. It is encapsulated in a 3-pin SOT-23 surface-mount package, ideal for compact power supply designs in industrial, automotive, laboratory, and manufacturing electronic systems.
This voltage reference offers a low temperature coefficient of 50 ppm/°C, ensuring reliable voltage stability across a broad temperature range from -40°C up to 85°C. With a maximum input voltage of 5.5V and an output current capability of 7mA, it supports various power management applications requiring precise voltage regulation.
The device's series topology and fixed output make it straightforward to implement in circuits requiring consistent voltage references. Load and line regulation values are tightly controlled at 350 μV/mA and 350 μV/V respectively, minimizing voltage variation with changes in load current and input voltage, thereby improving the accuracy and reliability of the overall electronic design.
Its compact dimensions, including a length of 2.92mm and height of 950μm, make it suitable for space-constrained PCB layouts without sacrificing performance. The device is not certified with automotive standards but is robust for general electronics applications such as power management ICs, instrumentation, and sensor systems.
This fixed 5V voltage reference simplifies voltage regulation tasks in precision electronics. ±0.2% initial accuracy supports high precision use cases. Surface-mount SOT-23 package enables compact circuit integration. Temperature coefficient of 50 ppm/°C maintains output stability.
Wide operating range from -40°C to 85°C is suitable for varying environments. 7mA output current capacity allows powering small loads. Load and line regulation features ensure consistent voltage under dynamic conditions.
Compact physical size supports modern miniaturized electronics. Designed for use in industrial, manufacturing, laboratory, and electronic component systems. Explore more precision Voltage References from Renesas Electronics and other power management ICs on EnvMart to enhance your electronic designs.
