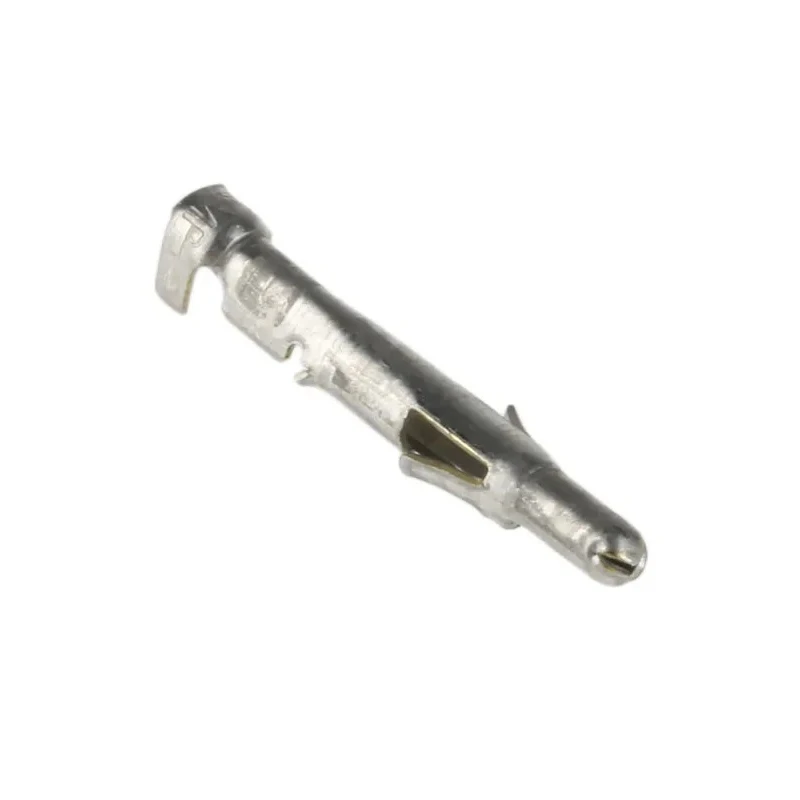

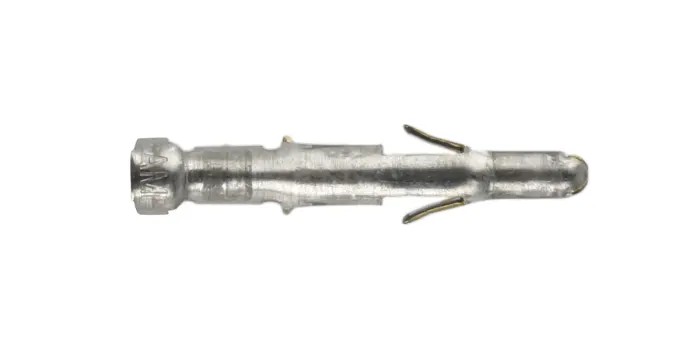

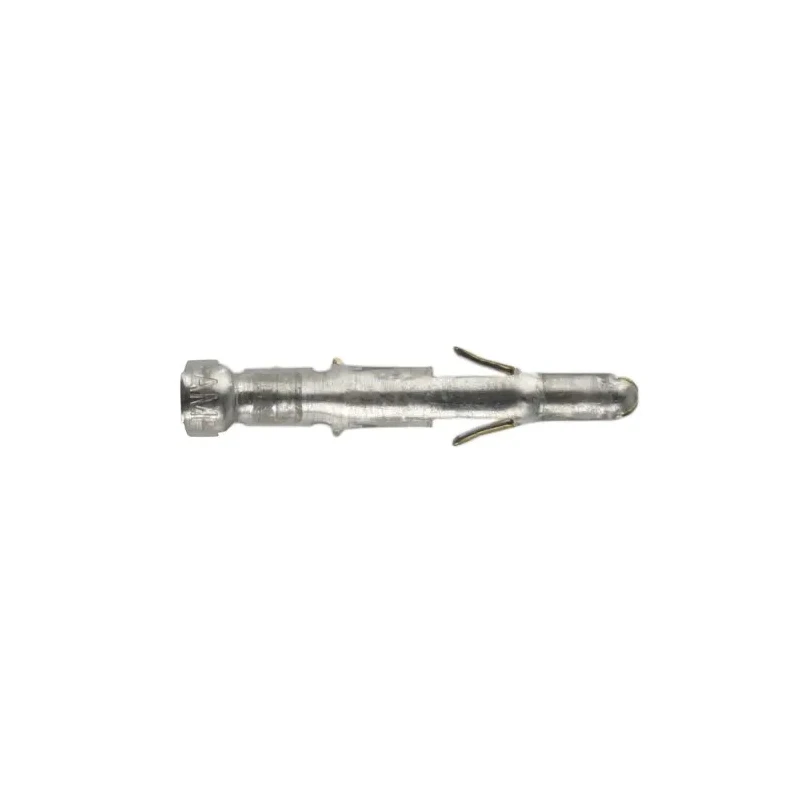

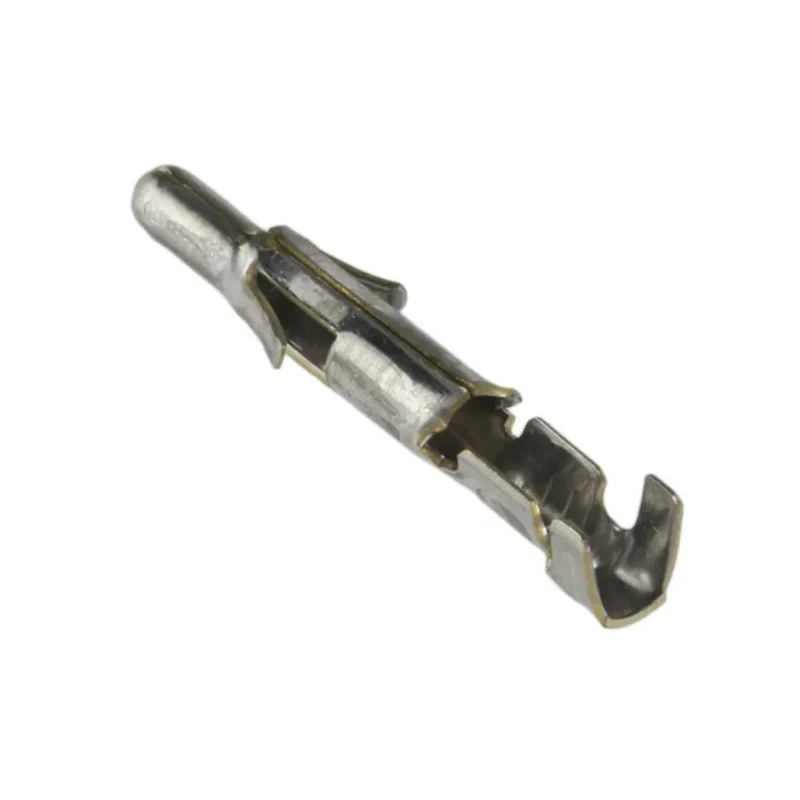

TE Connectivity Universal MATE-N-LOK Series Male Crimp Terminal 24 AWG Min, 18 AWG Max 926896-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 19A |
| Length | 20.7mm |
| Model | 926896-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Contact Orientation | Straight |
| Connector & Contact Terminates To | Wire & Cable |
Key Features
- Constructed with brass contact material and tin plating for enhanced conductivity and corrosion resistance.
- Supports a current rating of 19A, suitable for multiple electronic applications.
- Offers a straight contact orientation with crimp termination type to ensure secure wire connection.
- Operates within a temperature range from -55°C to 105°C, suitable for varied environmental conditions.
- Terminal length is 20.7mm, optimally sized for compact PCB connector assemblies.
- Compatible with Universal MATE-N-LOK Connector Housing for flexible use in electronic circuits.
- Ideal for use in consumer electronics, HVAC, commercial equipment, and power supplies.
- Enables efficient and cost-effective wiring in PCB and cable assemblies.
Product Description
TE Connectivity 926896-1 Universal MATE-N-LOK Series Male Crimp Terminal is engineered to provide dependable and efficient electrical connectivity for printed circuit board assemblies. This crimp terminal is suitable for wire gauges ranging from 24 AWG minimum to 18 AWG maximum, making it versatile for various wiring applications requiring a current capacity of 19 amps.
Constructed with brass contact material and finished with tin plating, this terminal ensures excellent conductivity and resistance to corrosion, maintaining performance over time. The crimp termination type with a straight contact orientation offers secure mechanical and electrical connections compatible with Universal MATE-N-LOK connector housings.
Operating reliably in temperatures between -55°C and 105°C, this Crimp Terminal withstands harsh industrial and commercial environments. With a length of 20.7 mm, the terminal is designed for easy insertion and robust mechanical support in PCB connector systems.
Applications include consumer electronics, HVAC systems, commercial machinery, and power supply connections, reflecting its broad utility across industrial, manufacturing, and commercial sectors. These terminals enable high-density connections, streamlining cable management and assembly processes.
Brass contact material with tin plating enhances conductivity and durability. Supports up to 19A current for reliable power transfer. Crimp termination and straight contact orientation provide secure connectivity. Wide operating temperature range from -55°C to 105°C for versatile environmental conditions.
Designed for 24 AWG minimum to 18 AWG maximum wire sizes. Length of 20.7 mm for compact PCB assembly integration. Compatible with Universal MATE-N-LOK Connector Housing system. Used in consumer electronics, HVAC, commercial equipment, and power supplies.
TE Connectivity's Universal MATE-N-LOK contact terminals are highly regarded in the electronics industry for their reliability and ease of use. Their adoption helps improve assembly efficiency and ensures solid electrical performance in demanding applications.
Explore the range of TE Connectivity products and accessories at EnvMart for your industrial and commercial connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a current rating of 19A, making it suitable for various electronic applications.
It is compatible with wire sizes ranging from 24 AWG minimum to 18 AWG maximum.
The terminal is constructed with brass contact material and features tin plating for enhanced conductivity and corrosion resistance.
The terminal has a length of 20.7 mm, designed for compact PCB connector assemblies.
It operates reliably within a temperature range from -55°C to 105°C, suitable for varied environmental conditions.
The terminal features a crimp termination type with a straight contact orientation, ensuring secure wire connections.
It is ideal for use in consumer electronics, HVAC systems, commercial equipment, and power supplies.
The contact orientation of this terminal is straight, providing ease of installation and secure connections.
The minimum wire size is 0.2 mm² and the maximum wire size is 0.8 mm².
The country of origin for this crimp terminal is India.
