Sifam Tinsley OMEGA Series Current Transformer 200 A 60:5A to 630:5A 35mm Bore XN35-245031S000000

Sifam Tinsley XN35-245031S000000 OMEGA Series Current Transformer is a high-quality electrical component designed for precise current measurement in industrial and automation systems. It supports primary currents from 60 A to 630 A with a 5 A secondary current output, making it suitable for a wide range of electrical control and power monitoring applications.

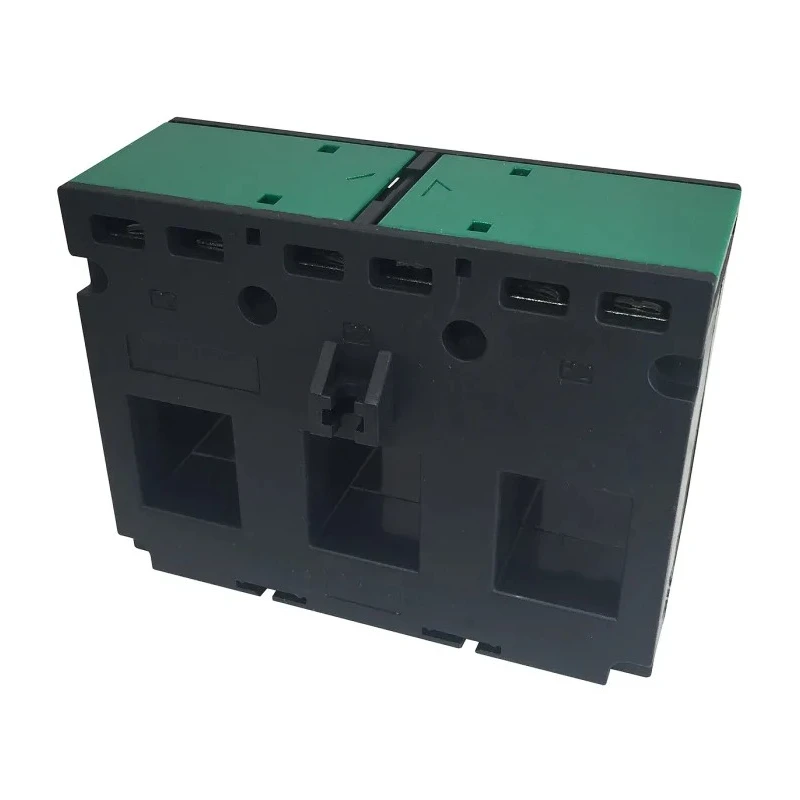

The transformer features a 35 mm bore diameter, allowing direct mounting adjacent to moulded case circuit breakers for optimized space utilization. Its compact design includes a width of 141 mm and provisions for mounting on base or DIN rail, offering versatile installation solutions tailored to different industrial environments.

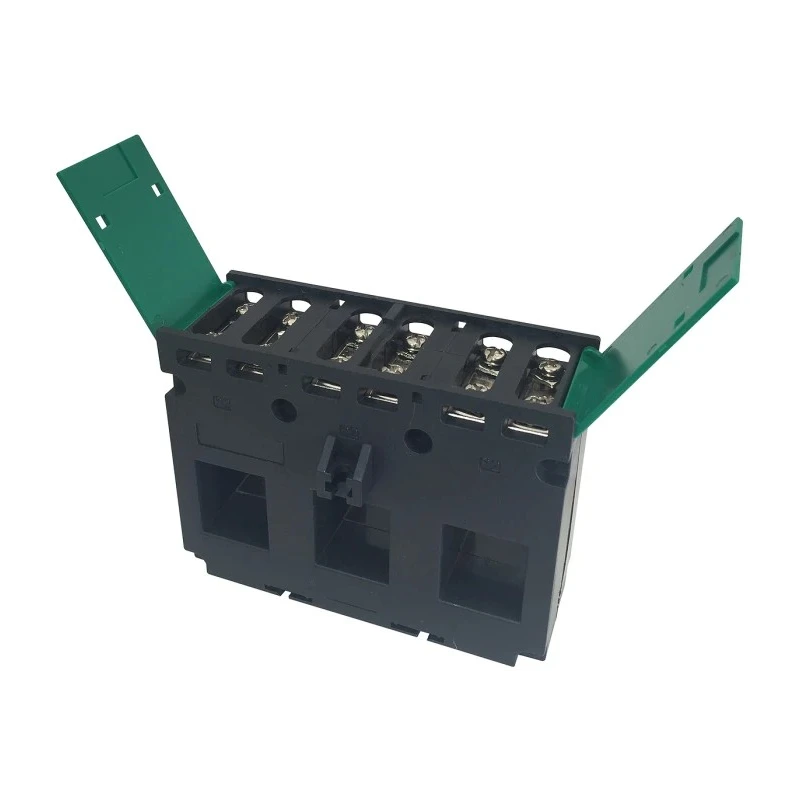

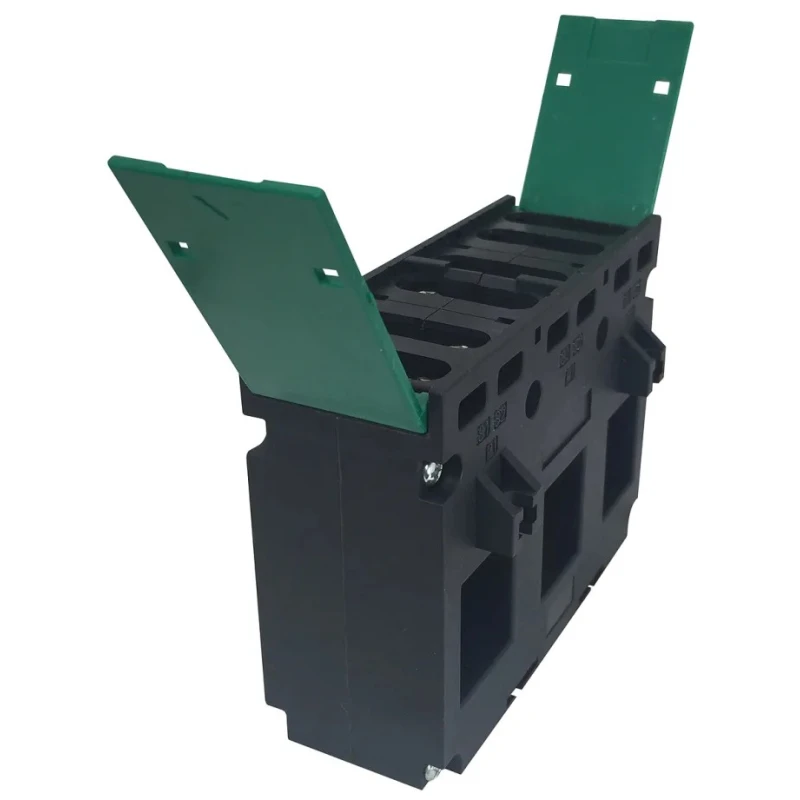

The device is equipped with wire sealable screw terminal covers to maintain secure and reliable electrical connections under industrial operating conditions. It complies with rigorous IEC/EN 60044-1, IEC 61869-1, and IEC 61010-2 standards, ensuring accuracy class 1 performance and compliance with safety norms.

Constructed with a self-extinguishing casing classified VO per UL-94 standards, this current transformer guarantees enhanced safety in demanding electrical environments. It is rated for system voltages up to 720 V and supports operational frequencies from 50 Hz to 60 Hz, providing reliable performance under standard electrical network conditions.

Primary current range: 60 A to 630 A with 5 A secondary output. 35 mm bore diameter with 141 mm width for compact installation. Mount type options: Base and DIN rail compatible. Wire sealable screw terminal covers for secure connections.

Compliance with IEC/EN 60044-1, IEC 61869-1, IEC 61010-2 standards. Self-extinguishing casing rated VO UL-94 for safety. Max operating frequency 60 Hz with system voltage 720 V. Weight approximately 650 grams.

This current transformer is ideal for integration in industrial automation, process control, electrical panel monitoring, and HVAC system applications. Its compact footprint and versatile mounting options allow seamless integration into control cabinets and electrical distribution panels.
