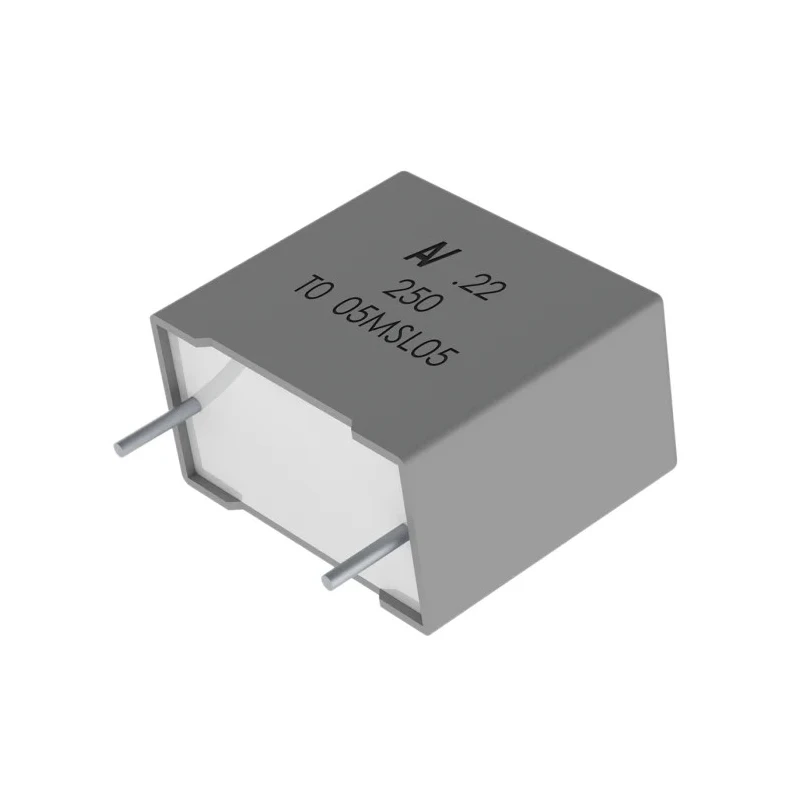

KEMET R60 Film Capacitor, ±5 % Tolerance, 220 nF Capacitance, 630 V DC 220 V AC Rated Voltage, Through Hole R60PN3220AA30J
Specifications
| Country of Origin | India |
|---|---|
| Capacitance Range | 0.001 μF - 150.0 μF |
| Voltage Range | 50 to 1000 V dc |
| Brand | KEMET |
| Height | 16mm |
| Length | 26.5mm |
| Model | R60PN3220AA30J |
| Packaging | Bag |
| Width | 7mm |
| Mount Type | Through Hole |
| Series | R60 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -55°C |
| Climatic category | 55/105/56 |
| Dissipation Factor | 1% |
| Lead Length | 25mm |
| Standards/Approvals | IEC 60286-2, RoHS, UL 94V-0 |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 220V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Capacitance tolerance | ±5%, ±10%, ±20% |
| Lead Spacing | 10.0 to 37.5 mm |
Key Features
- Offers high reliability with a plastic case meeting UL 94V-0 standards.
- Suitable for blocking, coupling, bypassing, oscillator, and timing applications.
- Supports an operating temperature range of -55°C to +105°C for diverse environments.
- Designed with a 22.5 mm lead pitch and 0.8 mm lead diameter for easy PCB integration.
- Complies with IEC 60286-2 and RoHS standards ensuring quality and environmental safety.
- Includes automotive standard AEC-Q200 grade for robust automotive electronics use.
- Self-healing feature enhances capacitor longevity under electrical stress.
- Bag packaging protects components during transport and storage.
Product Description
KEMET R60PN3220AA30J is a precision R60 series film capacitor offering 220 nF capacitance with ±5 % tolerance, rated for 630 V DC and 220 V AC voltages, intended for through hole mounting.
These capacitors feature a plastic case made of thermosetting resin that meets stringent UL 94V-0 flammability standards, providing enhanced safety and durability in industrial and automotive applications.
The device supports a broad operating temperature range from -55°C to +105°C, making it suitable for use in harsh environments including automotive and industrial electronics. Typically utilized for blocking, coupling, decoupling, bypassing, oscillator, and timing circuits, the R60 capacitors facilitate stable performance in low voltage applications.
The capacitors come with radial tinned wire leads spaced 22.5 mm apart and 0.8 mm in diameter, optimizing them for standard through hole PCB mounting techniques.
This product conforms to IEC 60286-2 standards and RoHS environmental regulations, ensuring compliance with international quality and safety requirements. Automotive-grade AEC-Q200 certification underlines its suitability for demanding automotive electronics systems.
High durability plastic case complying with UL 94V-0. Wide temperature operation from -55°C to +105°C. Self-healing property for extended capacitor life. Lead pitch of 22.5 mm and lead diameter 0.8 mm for PCB compatibility.
Meets IEC 60286-2, RoHS, and AEC-Q200 automotive standards. This capacitor is ideal for industrial, automotive, manufacturing, and laboratory electronic circuit designs where reliability, precision, and safety are key. Explore the full range of Film Capacitors within our Electronics Components category at EnvMart for superior quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 220 nF with a tolerance of ±5%.
It is rated for 630 V DC and 220 V AC.
The operating temperature range is from -55°C to +105°C, suitable for various environments.
The dimensions are 26.5 mm in length, 7 mm in width, and 16 mm in height.
This capacitor is designed for through hole mounting.
It complies with IEC 60286-2, RoHS, and UL 94V-0 standards.
The lead pitch is 22.5 mm and the lead diameter is 0.8 mm.
It meets the AEC-Q200 automotive standard, making it suitable for automotive electronics.
The self-healing feature enhances the longevity of the capacitor under electrical stress.
It is packaged in a bag to protect the components during transport and storage.
It is suitable for blocking, coupling, decoupling, bypassing, oscillator, and timing circuits.
The dissipation factor is 1%.
