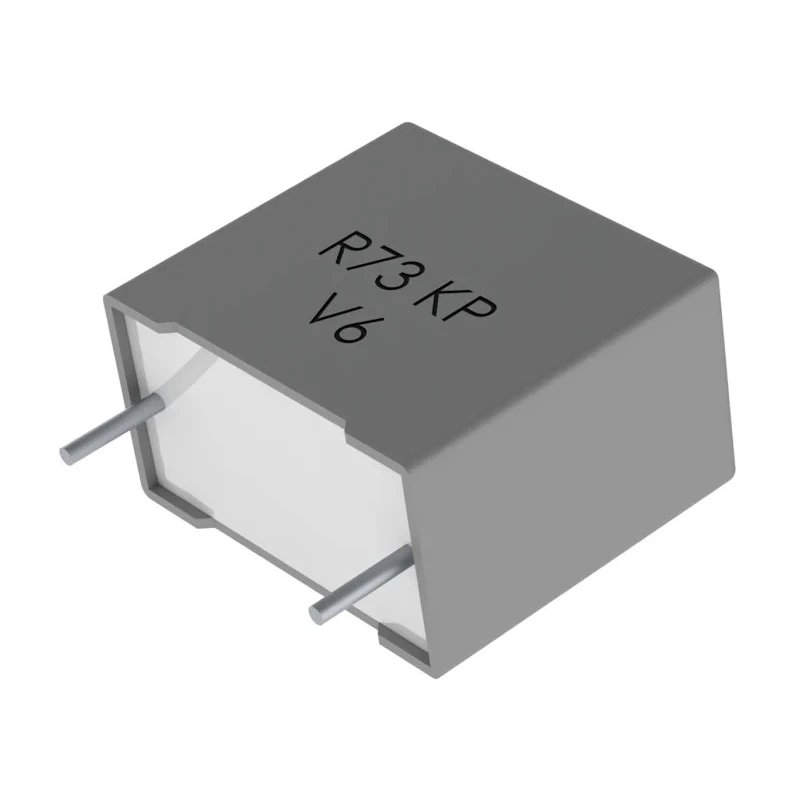

KEMET R73 Film Capacitor 10 nF ±5 % 630V DC 300V AC Through Hole Mount R73PI2100SE00J

Name: KEMET R73 Film Capacitor 10 nF ±5 % 630V DC 300V AC Through Hole Mount R73PI2100SE00J
Brand: KEMET
SKU: 180929



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	11mm
Length	18mm
Model	R73PI2100SE00J
Packaging	Bag
Width	5mm
Mount Type	Through Hole
Series	R73
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	10nF
Minimum Operating Temperature	-55°C
Lead Length	4mm
Standards/Approvals	IEC 60286-2, RoHS
Package/Case	Plastic
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	630V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200

Key Features

Rated for 630 V DC and 300 V AC supply voltages.
Through hole mounting type with 15 mm lead pitch for PCB integration.
Encapsulated in plastic package ensuring compliance with IEC 60286-2 and RoHS standards.
Operating temperature range from -55°C to 105°C suitable for harsh environments.
Lead length of 4 mm and diameter of 0.8 mm for secure electrical connections.
Meets automotive standard AEC-Q200 ensuring quality and reliability in automotive systems.
Ideal for timing networks, filter circuits, and tuned circuits requiring stability and pulse handling.

Product Description

KEMET R73PI2100SE00J film capacitor offers a capacitance of 10 nF with a tight tolerance of ±5 %. This capacitor is suitable for applications demanding high frequency stability and robust pulse handling capabilities.

The device supports a rated DC voltage of 630 V and an AC voltage rating of 300 V, making it versatile for various electronic circuits. The through hole mount with a 15 mm pitch enables easy PCB assembly and durability in mechanical stress environments.

The capacitor casing is plastic, self-extinguishing and compliant with IEC 60286-2 and RoHS directives, ensuring environmental safety and standards compliance. Its performance remains stable across a wide temperature range of -55°C to 105°C and meets the strict automotive AEC-Q200 standard for automotive electronics applications.

Additional dimensions such as lead diameter (0.8 mm) and lead length (4 mm) provide secure and reliable electrical connections. Its compact size (18 mm length × 11 mm height × 5 mm width) facilitates integration into dense electronic layouts.

Rated for 630 V DC and 300 V AC operation. Through hole mounting style with 15 mm lead pitch. Plastic encapsulated, UL94V-0 compliant material for safety. Temperature range -55°C to 105°C for diverse environmental conditions.

Meets automotive grade AEC-Q200 for enhanced reliability. Ideal for tuning, filtering and timing network applications. Compact physical size suited for high-density PCB designs. Lead specifications: 4 mm length, 0.8 mm diameter.

This film capacitor is widely used in industrial, automotive, telecommunications, and electronic manufacturing sectors for high-frequency filtering, timing, and pulse handling circuits.
