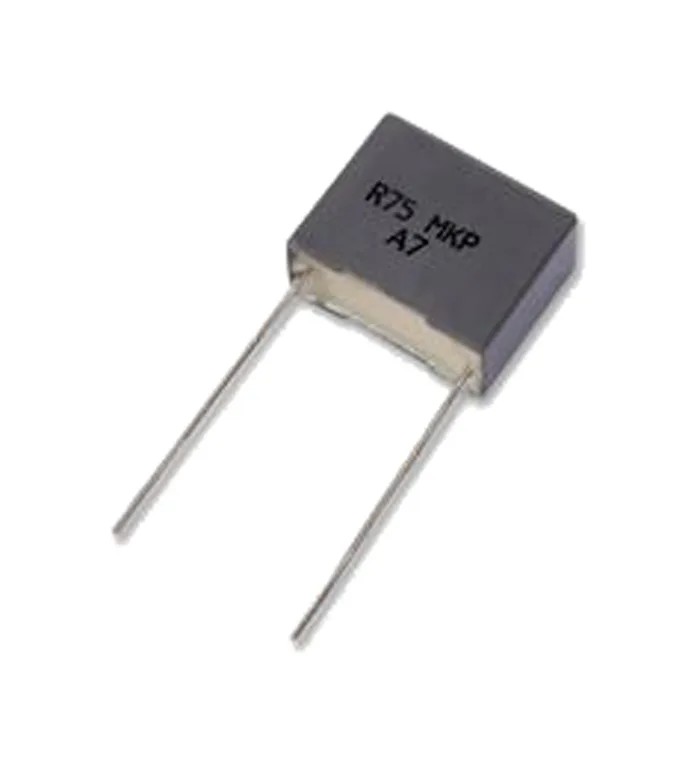

KEMET R75 Film Capacitor ±5% 100nF 1kV DC 250V AC Through Hole R75QI31004000J
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 19mm |
| Length | 18mm |
| Model | R75QI31004000J |
| Packaging | Bag |
| Width | 11mm |
| Mount Type | Through Hole |
| Series | R75 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -55°C |
| Dissipation Factor | 0.04% |
| Lead Length | 30mm |
| Standards/Approvals | RoHS, IEC 60286-2 |
| Pin Count | 2 |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 1kV dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q100 |
Key Features
- Constructed with metallized polypropylene film for high frequency applications.
- Radial leads of tinned wire provide reliable through hole mounting.
- Wide voltage range from 160 to 2000 Vdc with self-healing properties.
- Encapsulated in self-extinguishing material complying with UL94V-0 standards.
- Suitable for deflection circuits, electronic ballasts, power factor correction, and SMPS coupling.
- Has an automotive grade AEC-Q100 certification for reliability.
- Operating temperature range from -55°C to 105°C ensures durability in varied environments.
- Leads have a 15mm pitch and 30mm length, with 0.8mm diameter for secure PCB fitment.
Product Description
KEMET R75QI31004000J film capacitor is a precision component constructed using metallized polypropylene film designed for high frequency electronic circuits. With a capacitance of 100nF and a tight tolerance of ±5%, this through hole mount capacitor supports a rated DC voltage of 1 kV and an AC voltage rating of 250V, making it suitable for a variety of demanding industrial and automotive applications.
The capacitor features radial leads made of tinned wire with a lead pitch of 15mm and length of 30mm, providing stable and secure mounting on printed circuit boards. Its compact dimensions - 19mm height, 18mm length, and 11mm width - allow integration into space-constrained designs. Operating reliably in extreme temperature ranges from -55°C up to 105°C, it ensures effective performance under harsh environmental conditions.
R75 series capacitors possess self-healing properties and are encapsulated in a UL94V-0 rated self-extinguishing material, enhancing safety and long-term durability. Certification to automotive standard AEC-Q100 underlines its quality assurance for automotive electronics. The product complies with RoHS directives and IEC 60286-2 standards, confirming adherence to environmental and safety norms.
Typical use cases include deflection circuits in televisions (S-correction), resonant capacitors in electronic ballasts and compact lamps, power factor correction units, and coupling capacitors within switched mode power supplies (SMPS). However, this capacitor is not intended for across-the-line applications.
This film capacitor is offered in a bag packaging format, facilitating ready use for assembly and manufacturing processes. Constructed for high frequency electronic applications. Wide voltage range with superior self-healing properties.
Encapsulated for fire safety compliance. Automotive qualified to AEC-Q100 standards. Operating temperature from -55°C to 105°C. Lead pitch and length suitable for PCB mounting. Compliant with RoHS and IEC directives. Compact dimensions for easy integration.
Reliable through hole mounting system. Ideal for industrial, automotive, and consumer electronics. Explore more high quality Film Capacitors and related electronic components in our Electronics Components category at EnvMart to support your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 100nF.
It has a rated DC voltage of 1 kV and an AC voltage rating of 250V.
The operating temperature range is from -55°C to 105°C.
This capacitor uses a through hole mounting type.
The lead length is 30mm with a lead pitch of 15mm.
It is constructed with metallized polypropylene film and encapsulated in a self-extinguishing material that complies with UL94V-0 standards.
This model is certified to the automotive standard AEC-Q100 and complies with RoHS and IEC 60286-2 standards.
The dimensions are 19mm in height, 18mm in length, and 11mm in width.
It is suitable for deflection circuits, electronic ballasts, power factor correction, and SMPS coupling.
The tolerance of this model is ±5%.
The dissipation factor is 0.04%.
It is packaged in a bag format for easy use during assembly and manufacturing processes.
