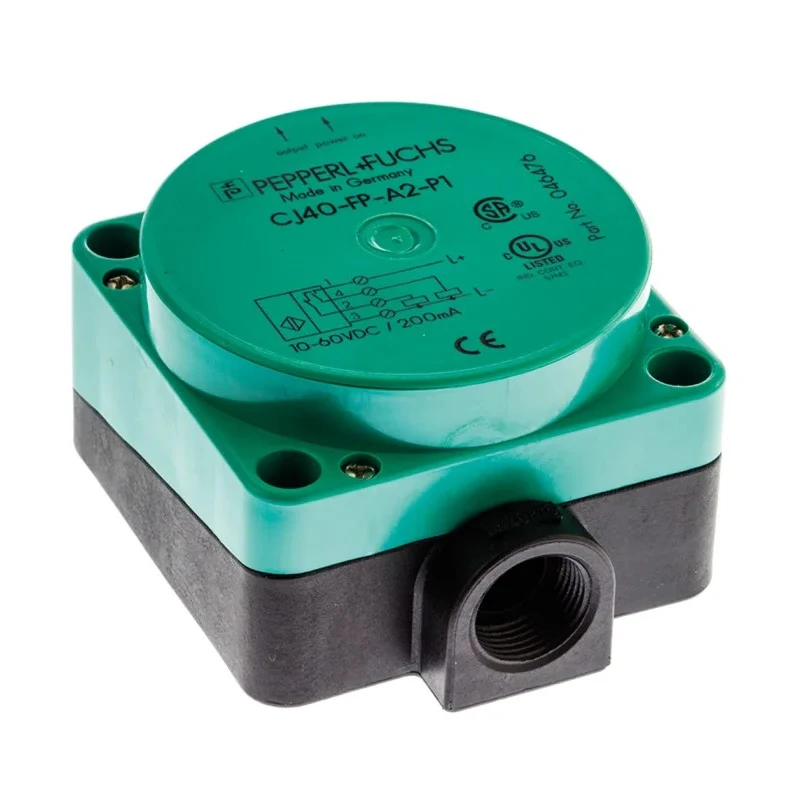

Pepperl + Fuchs Capacitive Proximity Sensor 40 mm, M20 x 1.5 Thread, Block Style, PNP Output, 200mA, 60V dc CJ40-FP-A2-P1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Pepperl + Fuchs |
| Length | 80mm |
| Model | CJ40-FP-A2-P1 |
| Depth | 52.5mm |
| IP Rating | IP65 |
| Width | 80mm |
| Housing Material | Polyoxymethylene, Polybutylene Terephthalate |
| Output type | PNP |
| Maximum Operating Temperature | 70°C |
| Thread Size | M20 x 1.5 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Screw |
| Body Style | Block |
| Maximum dc Voltage | 60V dc |
| Maximum Switching Frequency | 10Hz |
| Maximum Supply Voltage | 60V |
| Maximum Detection | 40mm |
Key Features
- Block style capacitive proximity sensor with a detection range of 40 millimeters.
- Robust housing made from polyoxymethylene and polybutylene terephthalate materials.
- Features M20 x 1.5 threaded connection for easy mounting.

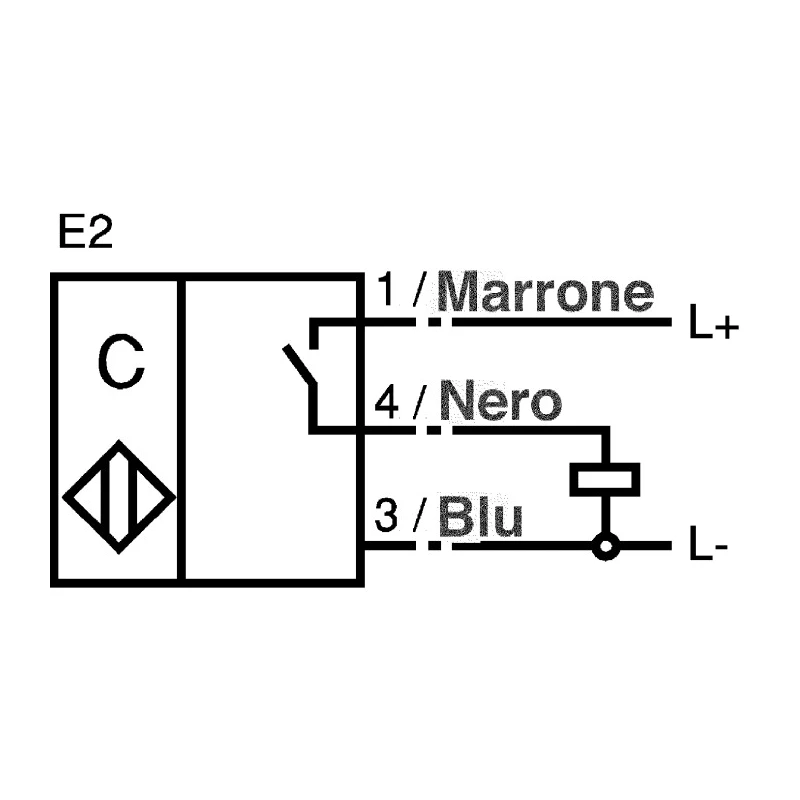

- Built-in PNP output with a maximum switching current of 200 mA and voltage rating up to 60 V dc.
- Ingress protection rating of IP65 for protection against dust and water jets.
- Operating temperature range from -25°C to +70°C for versatile industrial environments.
- Adjustable switching distance via potentiometer for precise sensing.
Product Description
Pepperl + Fuchs CJ40-FP-A2-P1 capacitive proximity sensor is designed for reliable detection of non-metallic materials such as plastics, paper, and fluids in various industrial automation and control applications. Its block-style compact housing made from polyoxymethylene and polybutylene terephthalate offers robust performance and resistance to harsh environments, supported by an IP65 ingress protection rating.
The sensor features a 40 mm maximum detection distance and utilizes a PNP output configuration with a switching current capacity up to 200 mA at 60 V dc, making it suitable for integration into control circuits requiring fast and accurate detection.
The M20 x 1.5 threaded mounting facilitates secure installation, while the adjustable switching distance potentiometer allows customization of sensing range to specific application requirements. Screw terminal connections with 2.5 mm² capacity and M20 cable entry simplify wiring and maintenance.
Operating over a wide temperature range from -25°C to +70°C, this sensor is suitable for demanding industrial environments including manufacturing lines, process automation, and level sensing in tanks and containers.

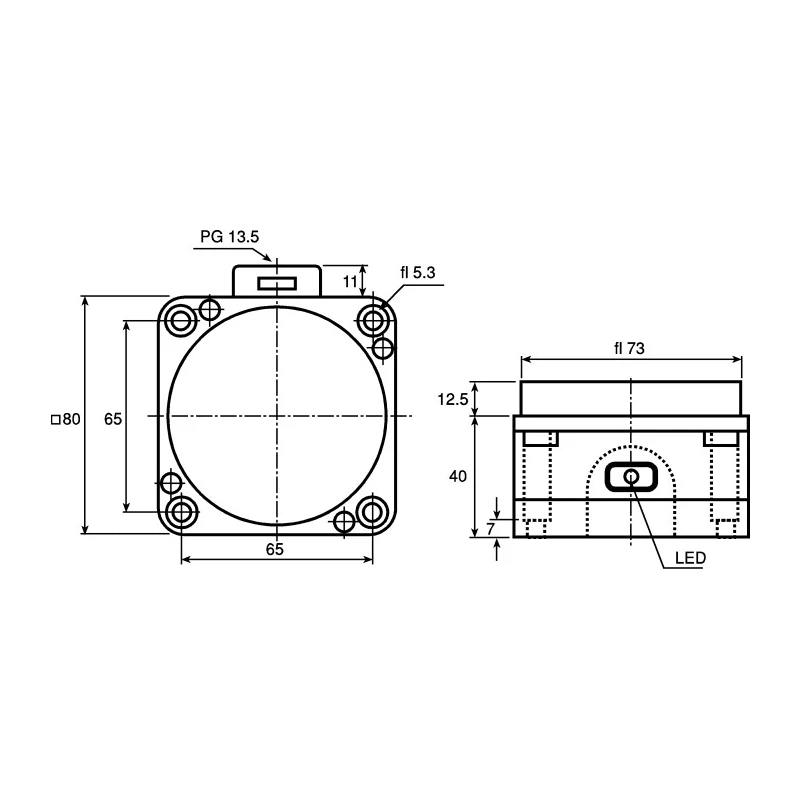

Compact dimensions of 80 mm length, 52.5 mm depth, and 80 mm width enable installation in space-constrained control panels or machinery. Block style capacitive proximity sensor with 40 mm detection distance. Robust PBT/POM housing materials ensure durability and chemical resistance.
PNP output supports up to 200 mA switching current at 60 V dc. IP65 rated for dust tight and water jet protection. M20 x 1.5 threaded mounting for secure fitting. Wide operating temperature from -25°C to +70°C. Adjustable switching distance via potentiometer.
Screw terminal connections with 2.5 mm² capacity. Compact size: 80 x 52.5 x 80 mm (LxHxW).
This Capacitive Proximity Sensor is ideal for use in industrial automation, manufacturing processes, level detection, and control systems where precise and reliable sensing of non-metallic materials is required. Pepperl + Fuchs' engineering ensures high quality and consistency for critical applications.
Explore more sensors and control gear at EnvMart's Electronics & Electricals category for optimal industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this model is 40 mm.
This unit features a PNP output configuration.
The maximum switching current for this model is 200 mA.
It has an ingress protection rating of IP65, providing dust tight and water jet protection.
The dimensions are 80 mm in length, 52.5 mm in depth, and 80 mm in width.
The operating temperature range is from -25°C to +70°C.
It uses an M20 x 1.5 threaded connection for mounting.
The housing is made from polyoxymethylene and polybutylene terephthalate materials.
The switching distance can be adjusted via a potentiometer.
It features screw terminal connections with a capacity of 2.5 mm².
The maximum supply voltage is 60 V dc.
It is suitable for applications involving the detection of non-metallic materials such as plastics, paper, and fluids in industrial automation and control.
