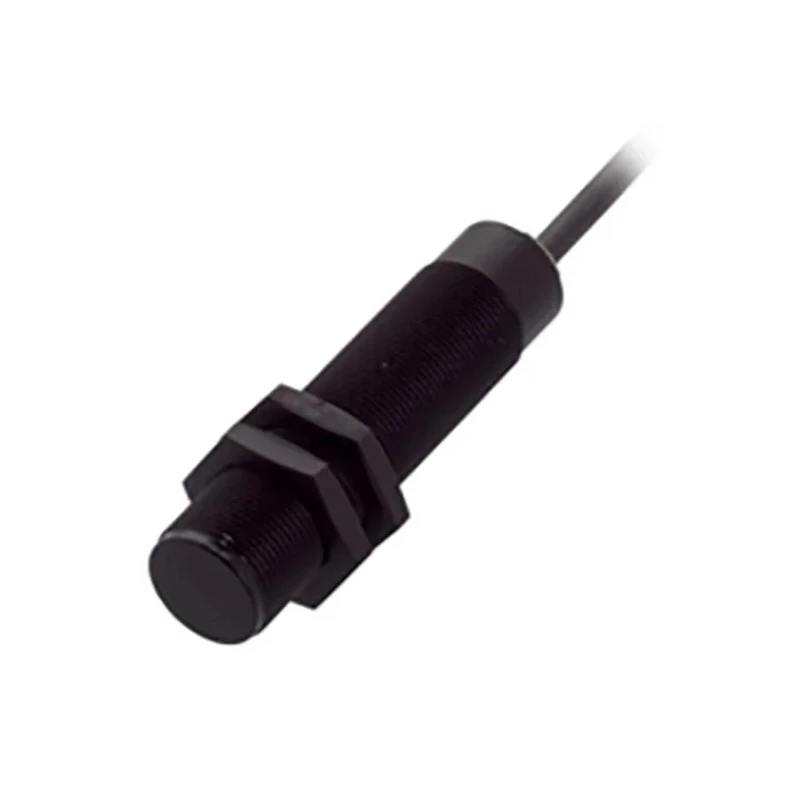

BALLUFF Threaded Barrel Capacitive Proximity Sensor M18 7 mm, M18 x 1, PNP Output 100mA 30V dc BCS M18BBN1-PSC80D-EP02

Free Delivery in India | Lowest Global Shipping Charges

BALLUFF Threaded Barrel Capacitive Proximity Sensor M18 7 mm, M18 x 1, PNP Output 100mA 30V dc BCS M18BBN1-PSC80D-EP02

Name: BALLUFF Threaded Barrel Capacitive Proximity Sensor M18 7 mm, M18 x 1, PNP Output 100mA 30V dc BCS M18BBN1-PSC80D-EP02
Brand: BALLUFF
SKU: 136023
Price: 146.81 USD
Availability: InStock



Category Capacitive Proximity Sensor Brand BALLUFF Condition New

Specifications

Country of Origin	Hungary
Brand	BALLUFF
Length	75mm
Model	BCS M18BBN1-PSC80D-EP02
Depth	75mm
IP Rating	IP67
Mount Type	Flush
Housing Material	Polybutylene Terephthalate
Output type	PNP
Series	M18
Maximum Operating Temperature	85°C
Thread Size	M18 x 1
Minimum Operating Temperature	-25°C
Switching Current	100mA
Terminal type	Pre-Cabled
Body Style	Threaded Barrel
Maximum dc Voltage	30V dc
Shielding	Shielded
Maximum Switching Frequency	100Hz
Standards/Approvals	CE, cULus Listed
Maximum Supply Voltage	30V
Maximum Detection	7mm

Key Features

This sensor features a PNP output type with a maximum switching current of 100mA.
It supports a maximum supply voltage of 30 V dc and operates reliably within -25°C to 85°C temperature range.
The device body is made of durable polybutylene terephthalate with an IP67 rating for protection against dust and water.
Designed for flush mounting with pre-cabled terminals for easy installation.
The sensor offers a high switching frequency up to 100Hz ensuring rapid response.
Shielded design helps reduce interference from other signals or objects.
Compliant with CE and cULus approvals, made in Hungary.

Product Description

BALLUFF BCS M18BBN1-PSC80D-EP02 is a high-precision capacitive proximity sensor designed for industrial automation and control applications. Featuring a threaded barrel body with M18 x 1 threading, this sensor provides reliable non-contact object detection for glass, plastic, paper, and diverse material compositions.

The sensor detects objects at a maximum distance of 7mm and outputs a PNP type signal capable of handling currents up to 100mA. Its robust polybutylene terephthalate housing offers excellent durability and protection with an IP67 ingress protection rating, suitable for environments exposed to dust and water.

Operating over a broad temperature range from -25°C to 85°C, it supports maximum DC voltages of 30 V. The sensor’s flush mounting design along with pre-cabled terminals simplifies installation in various industrial setups.

With a switching frequency capability of up to 100Hz and shielding to minimize interference, the BCS M18BBN1-PSC80D-EP02 is well-suited for precise stack height monitoring, level detection, and presence sensing in manufacturing, packaging, and quality control processes.

The sensor’s compact 75 mm length and standardized M18 threaded barrel form factor enable easy integration into automated equipment. The device is CE and cULus certified ensuring compliance with key international standards.

Manufactured in Hungary, it provides consistent quality and long-term operational stability. Its design caters to harsh industrial conditions, making it ideal for applications in automation, automotive, food processing, and packaging industries.

Easy to integrate with PLCs and industrial controllers due to standard output and mounting. Explore our wide range of Capacitive Proximity Sensors and automation controls on EnvMart for reliable industrial sensing solutions.
