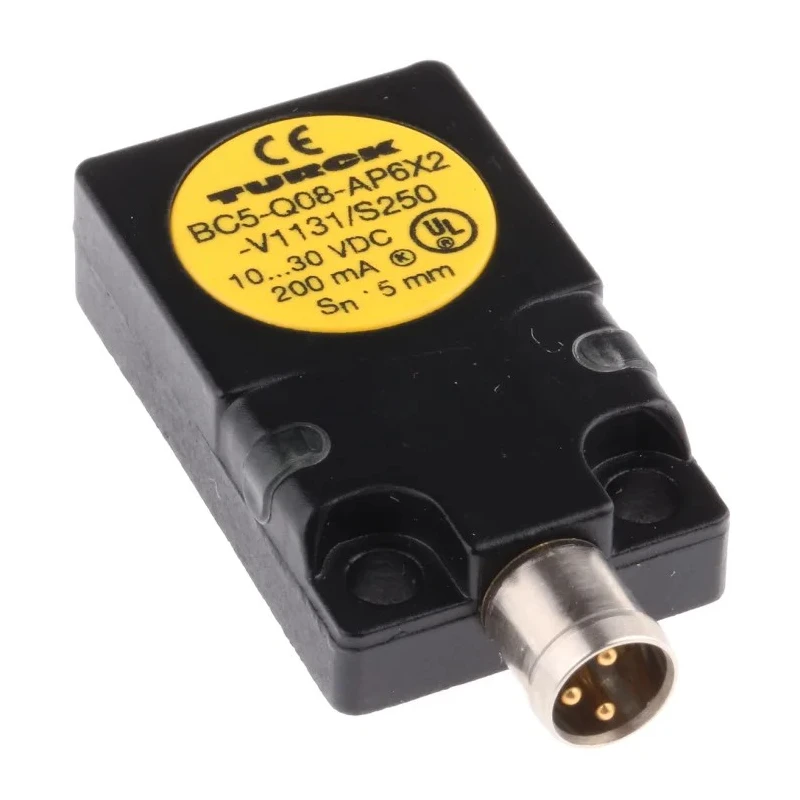

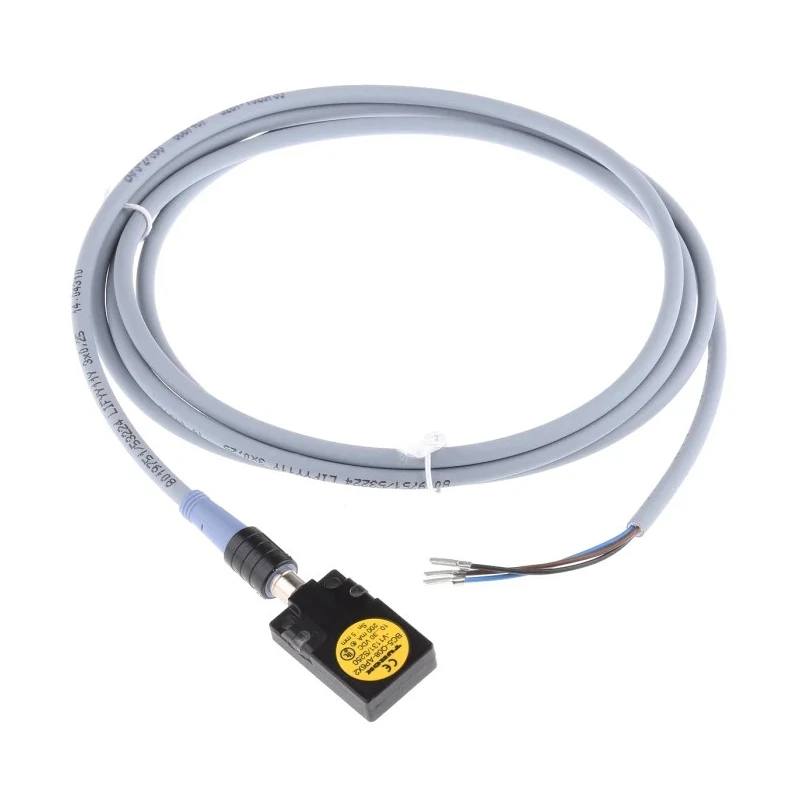

Turck Block Capacitive Proximity Sensor 5 mm Detection, PNP Output, 200mA Switching Current, 30 V DC BC5-Q08-AP6X2-V1131

Turck BC5-Q08-AP6X2-V1131 block capacitive proximity sensor is a high-quality industrial sensor designed for detecting both non-conductive and electrically conductive materials with a maximum sensing distance of 5 mm. Its compact rectangular 'flat pack' style body measures 32 mm in length, 20 mm width, and 8 mm depth, making it suitable for installations where space constraints apply.

This sensor features a PNP output type capable of switching currents up to 200 mA, operating with a 30 V DC maximum supply voltage. It includes a metal housing that provides robust protection and an IP67 rating that ensures dust tightness and protection against water immersion, making it ideal for demanding industrial environments.

The sensor is equipped with an M8 terminal type connector and is unshielded, allowing detection in a wide range of applications without interference. It supports a maximum switching frequency of 100 Hz, delivering quick and reliable sensing responses. Additionally, it provides power and output status LEDs for clear operational feedback and diagnostics.

Operating temperature ranges from -25°C to +70°C, enabling use in various environmental conditions. The sensor is embeddable with a shorter mounting depth compared to barrel-style sensors and supports potentiometer adjustment on higher-range models for customizable sensing ranges.

Manufactured in Germany, the BC5-Q08-AP6X2-V1131 sensor complies with UL and cULus safety standards, ensuring quality and reliability in automation, electrical, manufacturing, and process control applications.

Rectangular block style sensor with compact 32 mm length. PNP output with 200 mA switching current and 30 V DC supply voltage. Robust metal housing with IP67 rating for harsh environments. Unshielded design suitable for both conductive and non-conductive materials.

Maximum detection distance of 5 mm and temperature range -25°C to +70°C. Maximum switching frequency of 100 Hz for rapid response. Equipped with power and output LEDs for operational status indication. Embeddable design with shorter mounting depth for versatile installation.

Potentiometer adjustment available on select models for sensing range customization. Complies with UL and cULus safety approvals. Explore EnvMart’s comprehensive selection of high-quality Capacitive Proximity Sensors for industrial automation, manufacturing, and control system solutions.
