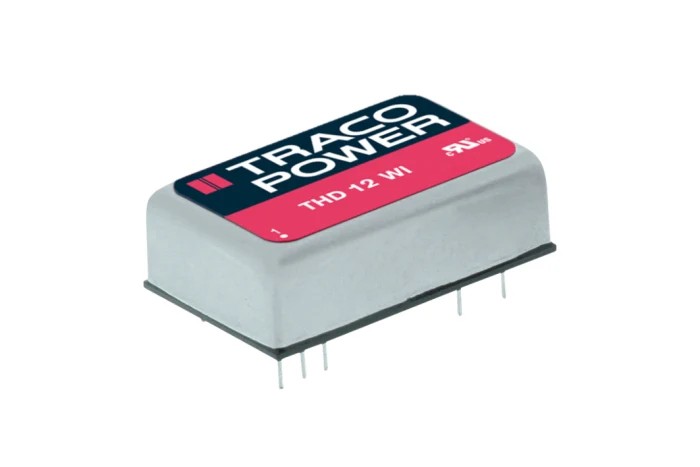

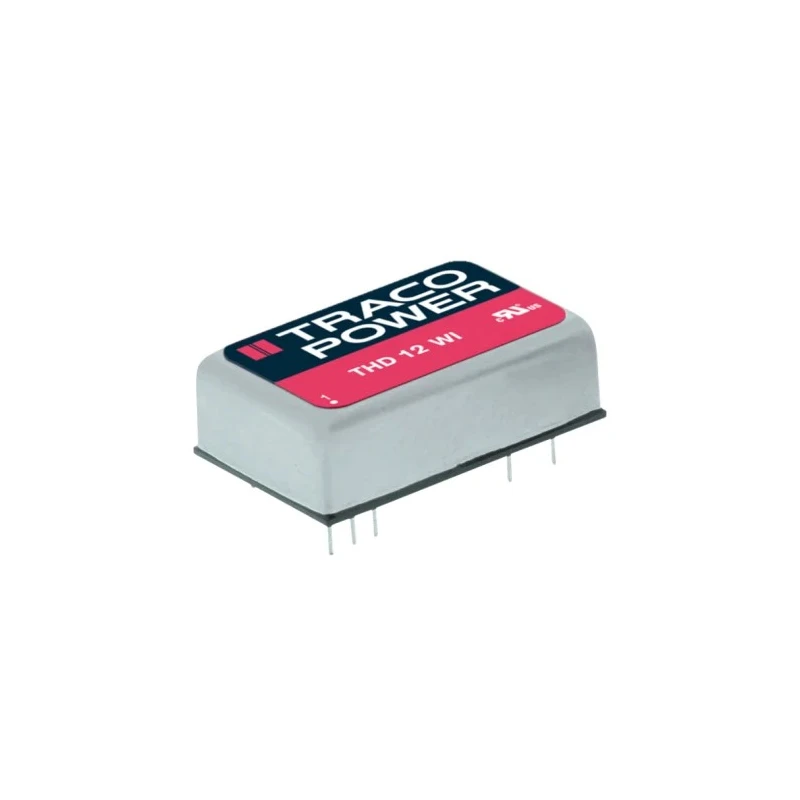

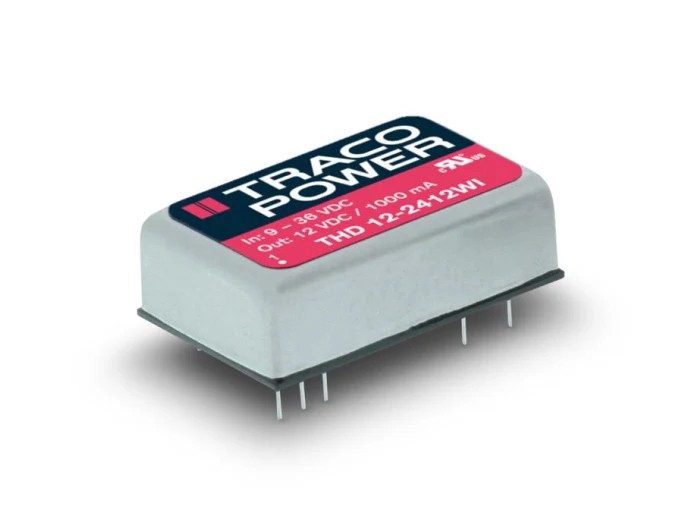

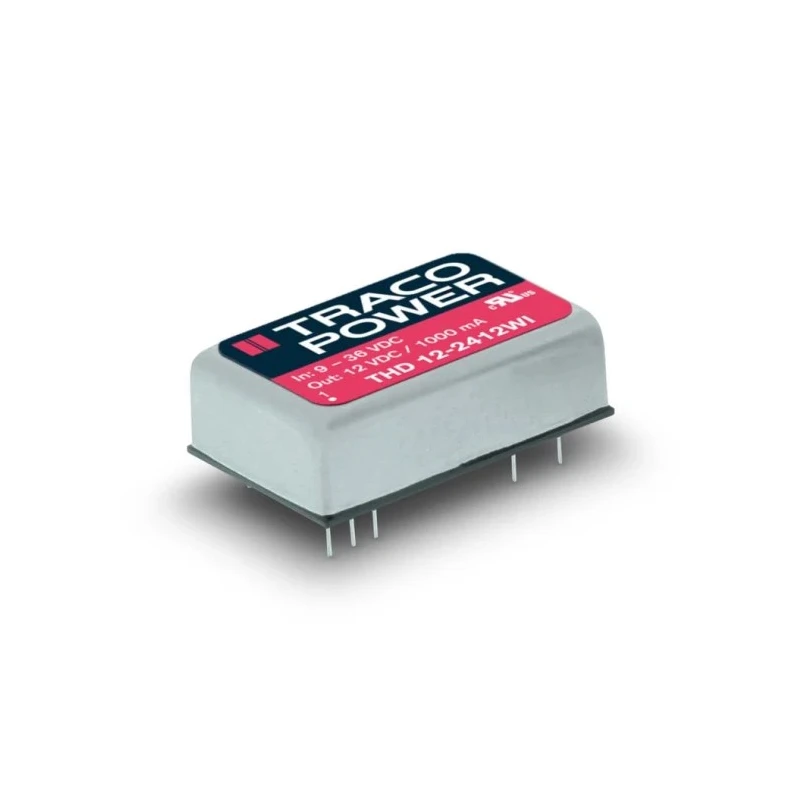

TRACOPOWER DC/DC Converter Through Hole 12V DC Output 1A 36V DC Input 9V Input 12W THD 12-2412WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THD 12WI DC/DC Converter, 12V dc/ 1 A |
| Brand | TRACOPOWER |
| Efficiency | 85% |
| Length | 31.8mm |
| Model | THD 12-2412WI |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | THD 12WI |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 2090000h |
| Number of outputs | 1 |
| Maximum Output Power | 12W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Number of Pins | 9 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio 4 | 1 |
Key Features
- Features a nickel-plated copper housing for strong resistance to rust and mechanical impact.
- Through-hole mounting offers a secure and vibration-resistant connection to circuit boards.
- Supports an input voltage range from 9V to 36V DC, suitable for varied power sources.
- Delivers a regulated 12V DC output at 1A and maximum output power of 12W.
- Includes 1.5kV DC isolation voltage to protect components from power spikes.
- Rated for an operating temperature between -40°C and 85°C for harsh environments.
- Lightweight design (approximately 18g) reduces mechanical stress on assemblies.
- Mean time between failures (MTBF) exceeds 2 million hours ensuring long-term reliability.
Product Description
TRACOPOWER THD 12-2412WI DC/DC Converter is engineered to provide reliable, efficient power conversion for electronic components requiring a stable 12V DC output. This through-hole device handles input voltages from 9V to 36V DC and supplies up to 1A output current at 12W maximum power. Its nickel-plated copper housing offers excellent mechanical durability and corrosion resistance, making it suitable for harsh industrial environments.
The converter incorporates an isolation voltage of 1.5kV DC between input and output to safeguard downstream electronics from voltage spikes. Integrated filters reduce electrical noise and ripple to maintain signal integrity, critical for sensitive applications such as LED lighting, relays, and control systems.
Designed for through-hole mounting, the unit ensures vibration-proof and permanent connection to printed circuit boards. Its compact dimensions (31.8mm length x 20.3mm width x 10.2mm depth) and lightweight design (approximately 18 grams) help minimize the physical footprint and mechanical strain on installations.
Operating within a wide temperature range of -40°C to 85°C, this converter offers robustness for use in demanding conditions commonly found in military equipment, HVAC systems, and process control industries. With a mean time between failures (MTBF) of over 2 million hours, it supports long-term system reliability.
Compliance with RoHS standards ensures environmental friendliness, and the product is manufactured in Taiwan, Province of China. The THD 12-2412WI series is ideal for power distribution in industrial, commercial, and laboratory electronic systems requiring efficient and stable DC voltage conversion.
Nickel-plated copper housing provides corrosion and impact resistance. Through-hole mount for secure PCB attachment and vibration resistance. Wide input voltage range from 9V to 36V DC supports flexible power sources. Stable 12V DC output at 1A current for consistent device operation.
1.5kV DC isolation voltage protects against power surges and spikes. Rated for continuous operation from -40°C to 85°C temperature range. Lightweight (18g) design reduces installation stress. Over 2 million hours MTBF for dependable long-term use.
Built-in filters reduce noise and ripple for clear signal transmission. RoHS compliant and manufactured in Taiwan for quality assurance.
Explore EnvMart's extensive selection of DC/DC Converters and power supply solutions designed for industrial, laboratory, and commercial applications to find compatible components meeting your precise technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an input voltage range from 9V to 36V DC.
It delivers a regulated output of 12V DC at a maximum current of 1A.
The maximum output power for this unit is 12W.
It features an isolation voltage of 1.5kV DC to protect against power spikes.
This unit has dimensions of 31.8mm in length, 20.3mm in width, and 10.2mm in depth.
It is rated for an operating temperature range of -40°C to 85°C.
This model is designed for through-hole mounting, ensuring a secure connection to circuit boards.
The MTBF for this unit exceeds 2 million hours, indicating long-term reliability.
This converter is compliant with RoHS standards, ensuring environmental friendliness.
It has an efficiency rating of 85%.
This model features a single output.
It features a nickel-plated copper housing for corrosion and impact resistance.
