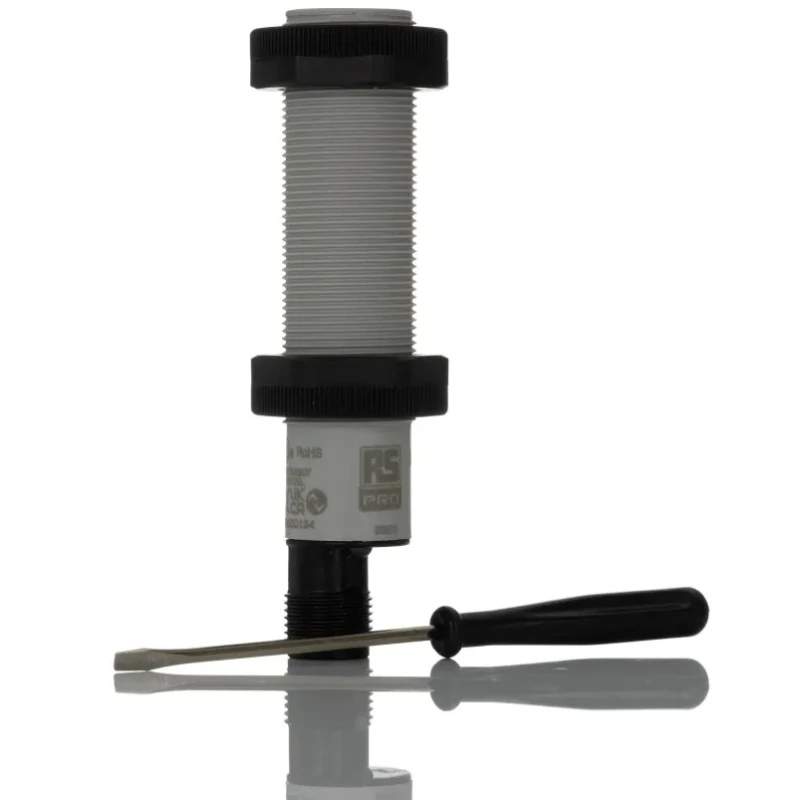

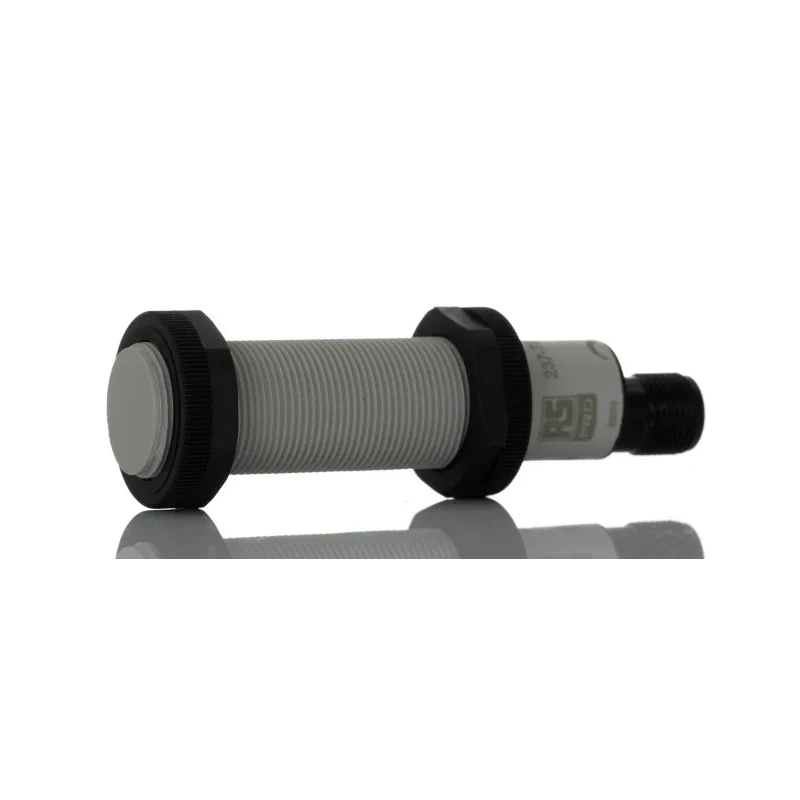

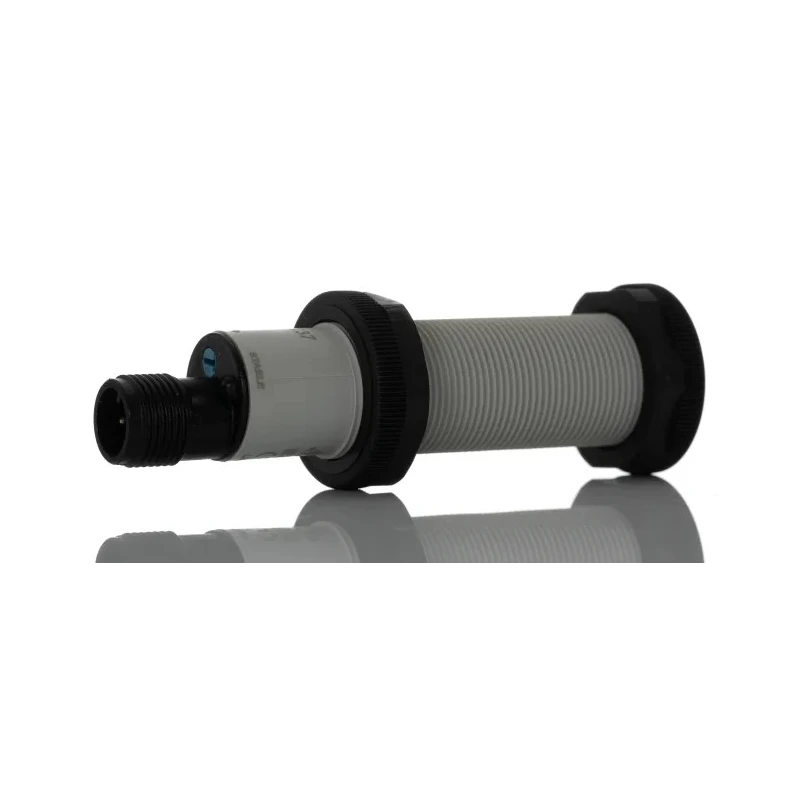

RS PRO Threaded Barrel Capacitive Proximity Sensor M18, CA Series, NPN/PNP Output, 200mA, 40V DC/240V AC, IP67 237-7237
Specifications
| Country of Origin | Lithuania |
|---|---|
| Brand | RS PRO |
| Length | 70mm |
| Model | 237-7237 |
| Depth | 70mm |
| IP Rating | IP67 |
| Mount Type | Flush |
| Housing Material | Polybutylene Terephthalate |
| Output type | NPN/PNP |
| Series | CA |
| Maximum Operating Temperature | 70°C |
| Thread Size | M18 |
| Minimum Operating Temperature | -30°C |
| Switching Current | 200mA |
| Terminal type | M12 |
| Interface Type | IO-Link |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 40V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | RoHS, UL 94 V-2, DIN, UL 508 12, CSA, UL 94 HB, UL 94 V-0, REACH, IEC, ANSI/ESD, EN, CE, UL 508 4 |
| Maximum AC Voltage | 240V ac |
| Maximum Supply Voltage | 40V |
| Materials Detected | Polybutylene Terephthalate |
| Maximum Detection | 8mm |
Key Features
- Designed with IP67 rating for dust and water resistance.
- Compatible with supply voltages up to 40V DC and 240V AC.
- Maximum switching current rated at 200mA for efficient operation.
- Flush mountable with threaded barrel body style measuring 70mm length.
- Constructed from durable Polybutylene Terephthalate housing material.
- Provides detection range up to 8mm with shielded sensing face.
- Operates reliably within temperature range of -30°C to 70°C.
- Supports switching frequency up to 2kHz for high-speed applications.
Product Description
RS PRO 237-7237 is a high-quality Threaded Barrel Capacitive Proximity Sensor designed for precise, non-contact detection of objects regardless of material composition. It features an M18 thread size and belongs to the CA series, equipped with NPN/PNP output types and an IO-Link communication interface enabling seamless integration into modern automation systems.
This sensor delivers a maximum switching current of 200mA and supports supply voltages of up to 40V DC and 240V AC, making it versatile for a variety of industrial power configurations. The device is rated IP67, ensuring resistance against dust and water ingress, suitable for harsh manufacturing environments.
Constructed with a robust Polybutylene Terephthalate housing, the sensor maintains durability while providing a detection range of up to 8mm. It features a flush mount type for easy installation and a shielded sensing face that enhances electromagnetic interference immunity, facilitated by the 4th generation TRIPLESHIELD™ technology.
Operating reliably within a temperature range from -30°C to 70°C, this sensor maintains high performance across varying environmental conditions and supports high-frequency switching up to 2kHz, which suits rapid control processes.
Comprehensive certifications including RoHS, UL 94 various ratings, DIN, REACH, IEC, ANSI/ESD, and CE standards attest to the sensor’s compliance and quality assurance. Originating from Lithuania, the RS PRO 237-7237 sensor finds applications in manufacturing plants, industrial automation, process control, and environments requiring accurate measurement of pressure, thickness, proximity, and material presence.
IP67 rated for protection against dust and water ingress. Flush mount design with M18 threaded barrel for secure installation. Compatible with supply voltages of 40V DC and 240V AC. Maximum switching current of 200mA. Polybutylene Terephthalate housing ensuring durability.
Up to 8mm detection range with shielded sensing face. Operating temperature range from -30°C to 70°C. Switching frequency up to 2kHz for fast response. Multiple certifications including RoHS, UL and CE standards. Ideal for industrial, automation, manufacturing and control applications.
Explore more sensors and industrial automation products from the RS PRO range at EnvMart to find solutions tailored to your manufacturing and process automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is up to 8mm.
This sensor has an IP67 rating, providing protection against dust and water ingress.
It is compatible with supply voltages up to 40V DC and 240V AC.
The maximum switching current is rated at 200mA.
It features NPN/PNP output types, allowing for versatile integration into various systems.
The operating temperature range is from -30°C to 70°C.
It can detect materials made of Polybutylene Terephthalate.
The sensor has a threaded barrel body style, designed for flush mounting.
It supports a maximum switching frequency of up to 2kHz.
The sensor measures 70mm in length and has a depth of 70mm.
The housing is constructed from durable Polybutylene Terephthalate.
It complies with several certifications including RoHS, UL 94, and CE standards.
