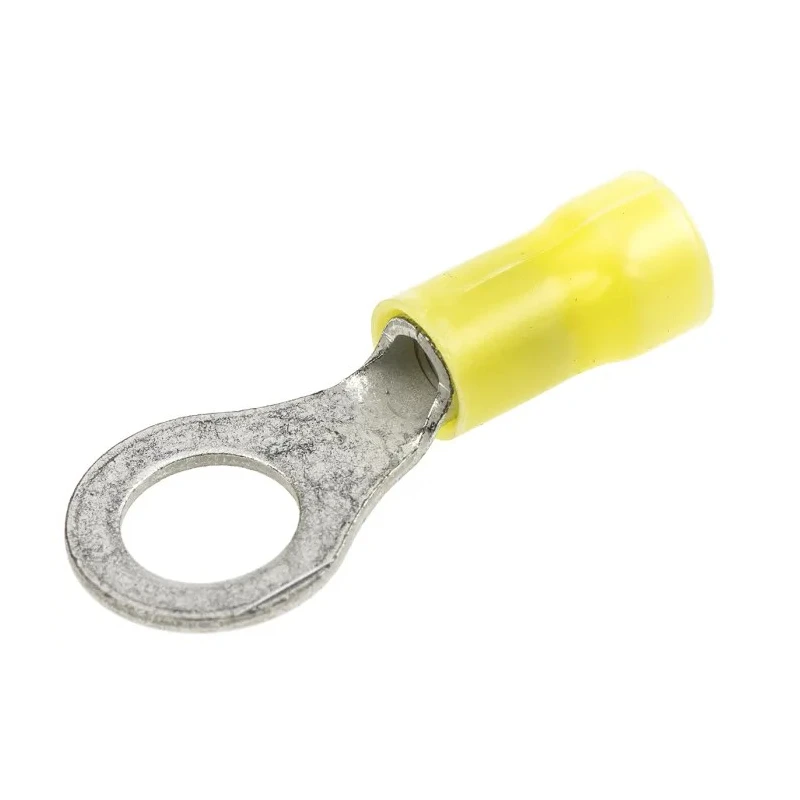

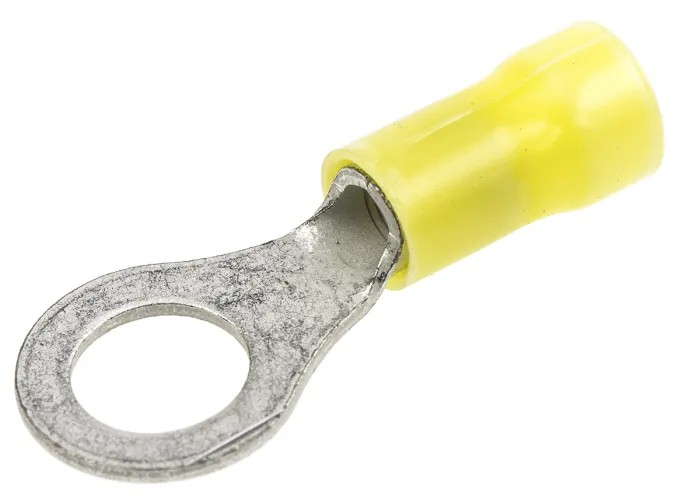

RS PRO PLASTI-GRIP Insulated Ring Terminal 7.94 mm Stud Size 12 AWG 10 AWG Wire Size Yellow 34856

Free Delivery in India | Lowest Global Shipping Charges

RS PRO PLASTI-GRIP Insulated Ring Terminal 7.94 mm Stud Size 12 AWG 10 AWG Wire Size Yellow 34856

Name: RS PRO PLASTI-GRIP Insulated Ring Terminal 7.94 mm Stud Size 12 AWG 10 AWG Wire Size Yellow 34856
Brand: RS PRO
SKU: 180737
Price: 0.63 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Colour	Yellow
Model	34856
Insulation	Insulated
Overall Length	33.71mm
Contact Material	Copper
Series	PLASTI-GRIP
Maximum Operating Temperature	105°C
Insulation Material	Vinyl
Contact Plating	Tin
Minimum Wire Size mm²	2.6mm²
Maximum Wire Size mm²	6.6mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	10AWG
Outer Ring Diameter	13.49mm
Inner Ring Diameter	8.33mm
Stud Size	7.94 mm
M8 RING-YELLOWBrand	TE Connectivity

Key Features

Made of high conductivity tin plated copper for excellent electrical contact.
Expanded high dielectric strength 94V-0 rated vinyl insulation sleeve for durability.
Inner barrel is serrated to enhance electrical contact and tensile strength after crimping.
Funnel-shaped wire entry eases wire insertion for secure crimps.
Suitable for maximum wire size of 6.6 mm² and minimum of 2.6 mm².
Overall length measures 33.71 mm with 13.49 mm outer ring diameter.
Designed to operate safely up to 105°C maximum temperature.
Yellow color coding for easy identification corresponding to wire sizes 12 AWG to 10 AWG.

Product Description

TE Connectivity 34856 PLASTI-GRIP insulated ring terminal is engineered for high strength and reliable wire connections in electrical and electronic applications. The 7.94 mm stud size terminal accommodates wire sizes from 12 AWG to 10 AWG, with dimensions designed for optimal fit and durability.

Constructed with copper material plated with tin for corrosion resistance, this ring terminal features a vinyl insulation sleeve rated at 94V-0 for high dielectric strength and thermal endurance up to 105°C. Its serrated inner barrel maximizes electrical contact integrity and mechanical retention after crimping. The funneled wire entry design simplifies wire insertion, improving installation efficiency and connection reliability.

These insulating ring terminals are color-coded yellow, indicating compatibility with wire sizes ranging from 2.6 mm² to 6.6 mm², conforming to standard wiring practices. The overall length is 33.71 mm with an inner ring diameter of 8.33 mm and an outer diameter of 13.49 mm, ensuring compatibility with 7.94 mm stud bolts.

High conductivity tin plated copper construction for excellent electrical performance. 94V-0 rated vinyl insulation sleeve enhances safety and durability. Serrated inner barrel for maximum contact and tensile strength. Funnel wire entry enables easy wire insertion and effective crimps.

Yellow insulation signifies 12 AWG to 10 AWG wire size compatibility. Designed for maximum operating temperature of 105°C. Compact overall length of 33.71 mm facilitates installation in confined spaces.

Ideal for industrial electronic, manufacturing, and electrical wiring applications, TE Connectivity PLASTI-GRIP Ring Terminals ensure secure, high-quality connections. These terminals are commonly used in automotive, control panels, and power distribution systems to provide consistent and reliable performance.

Explore additional TE Connectivity wiring and connector solutions at EnvMart for all your electronic assembly needs.
