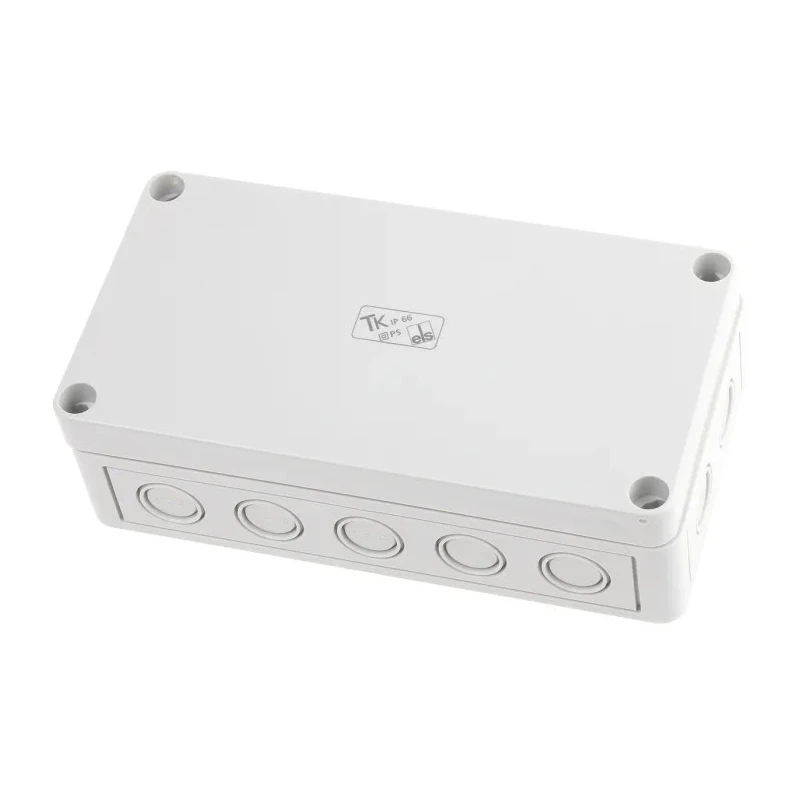

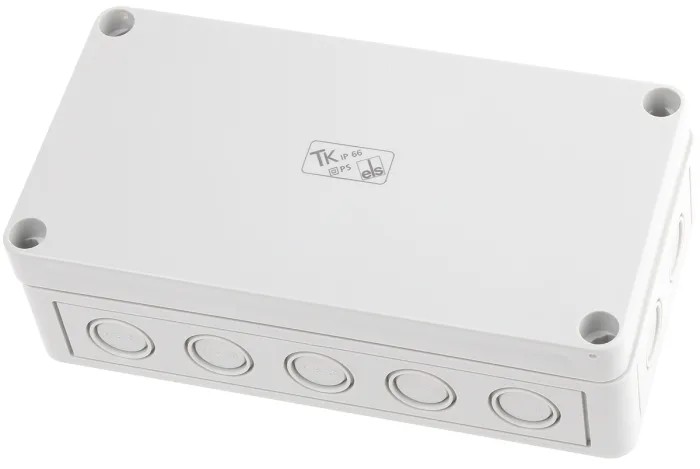

Spelsberg Grey Polystyrene Enclosure TK PS Series IP66 IK07 57mm x 180mm x 94mm 10541001

Spelsberg 10541001 grey polystyrene enclosure from the TK PS Series offers a reliable, IP66-rated housing solution for a wide range of electrical, electronic, and pneumatic equipment. Measuring 57 mm in height, 180 mm in length, and 94 mm in width, this enclosure provides a compact yet robust protective case built to withstand harsh environmental factors.

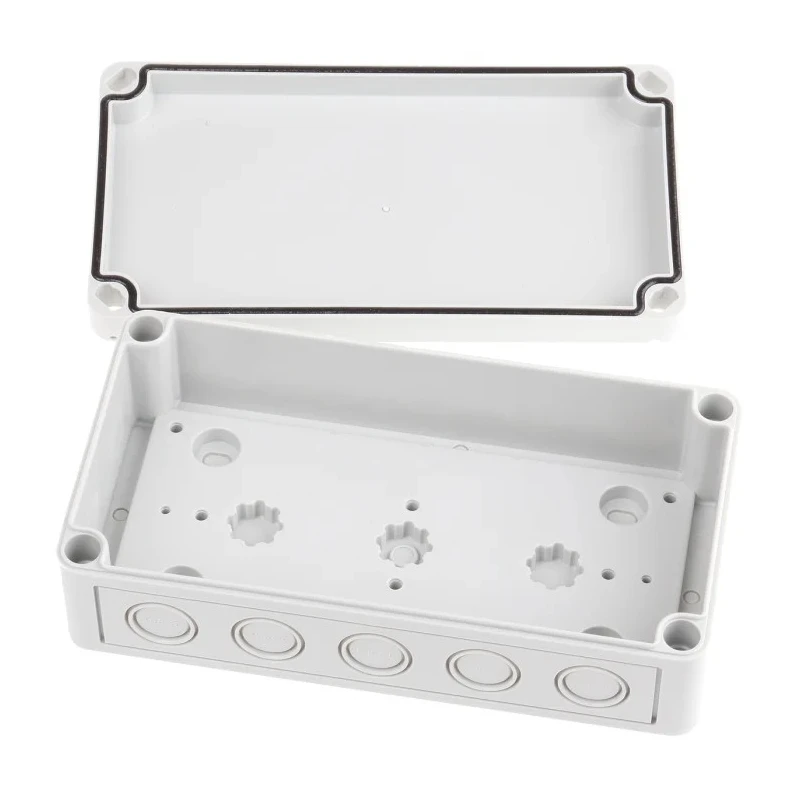

Its body is made of high-quality grey polystyrene, complemented by a matching grey lid, delivering excellent resistance to many acids and alkalis. The enclosure features pre-pressed metric knockouts to facilitate cable entry and installation flexibility. A polyurethane gasket integrated into the cover enhances sealing, maintaining the enclosure's rated IP66 ingress protection according to EN 60529 and DIN VDE 0470-1 standards.

With an IK07 rating per DIN EN 5012 and VDE 0470 Part 100, the enclosure resists significant mechanical impacts, ensuring durability in industrial settings. Flame retardant properties complying with VDE 0471 and UL94 at 650 °C / HB add a safety margin for electrical applications. The unit can be easily mounted on walls or surfaces using through holes located beneath the lid fixing screws or knockouts on the base’s bottom, with sealing plugs included.

The enclosure is approved to multiple standards including CE, cULus, UL, and VDE, confirming its quality and suitability across various international markets. It operates efficiently in ambient temperatures ranging from -25 to +40 °C, making it adaptable to different installation environments.

This product is engineered primarily for industrial automation, electrical distribution, control cabinets, and general-purpose electronic housing applications, providing essential protection while simplifying installation and maintenance.

Constructed from grey polystyrene for chemical resistance and durability. IP66 ingress protection ensures dust-tight and water-resistant enclosure. IK07 impact rating for mechanical robustness and safety. Pre-pressed metric knockouts enable versatile cable management and mounting options.

Flame retardant compliant to VDE 0471 and UL94 standards enhances operational safety. Certified to CE, cULus, UL, and VDE standards, ensuring compliance with international regulations. Operating temperature range from -25 to +40 °C suits various industrial environments.

Integrated polyurethane cover gasket provides superior sealing performance. Included sealing plugs support secure surface mounting. Explore a wide range of Electrical Enclosures and accessories at EnvMart for robust and compliant electrical installation solutions.
