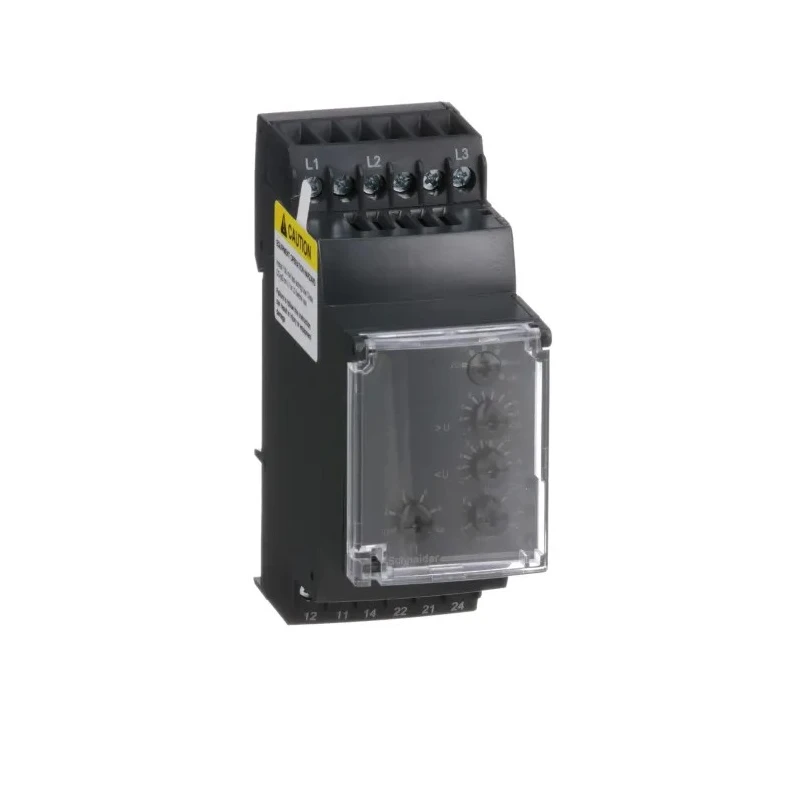

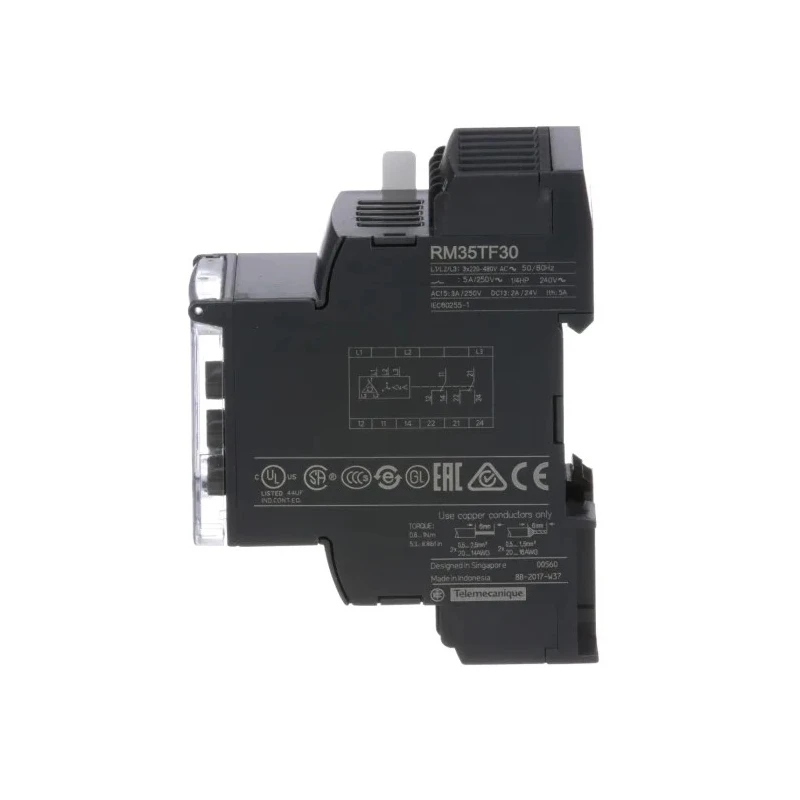

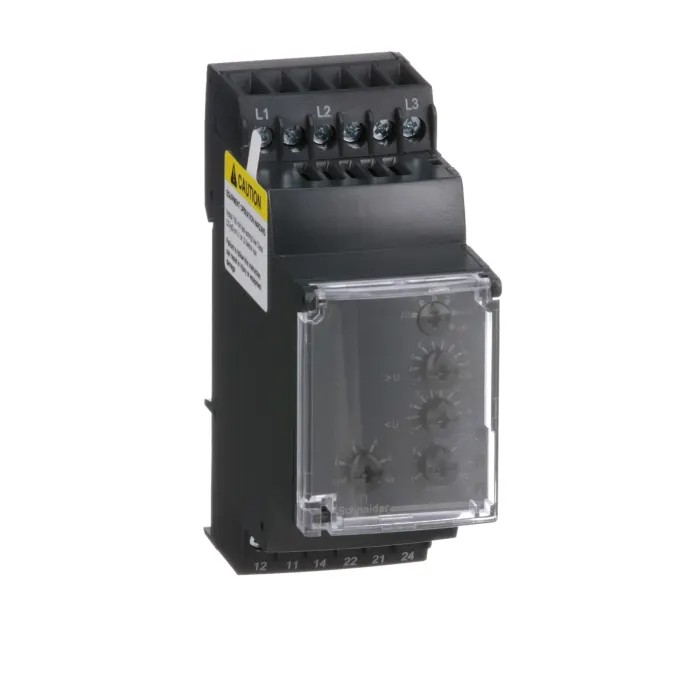

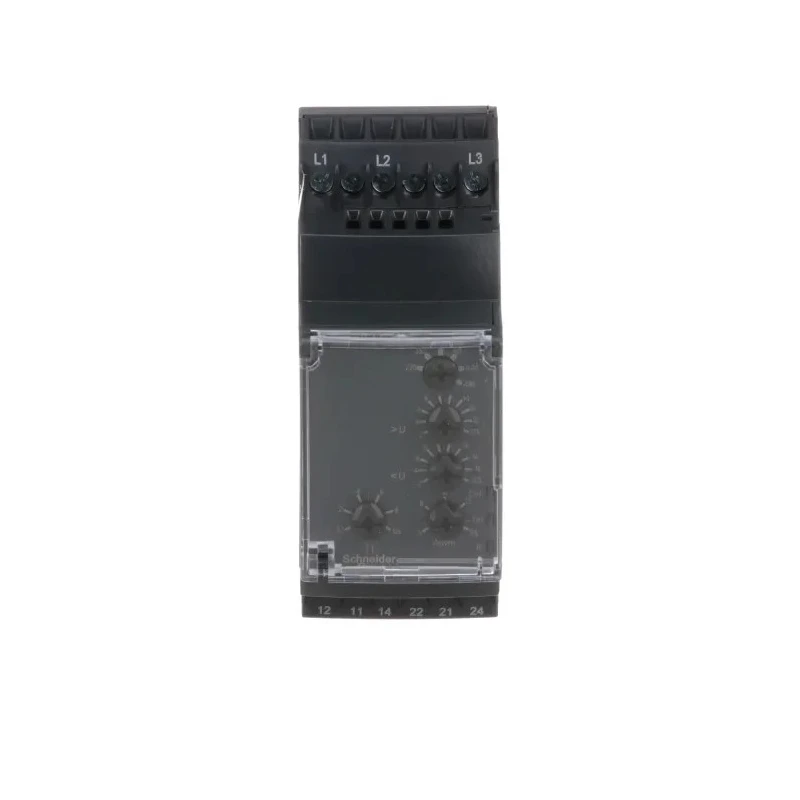

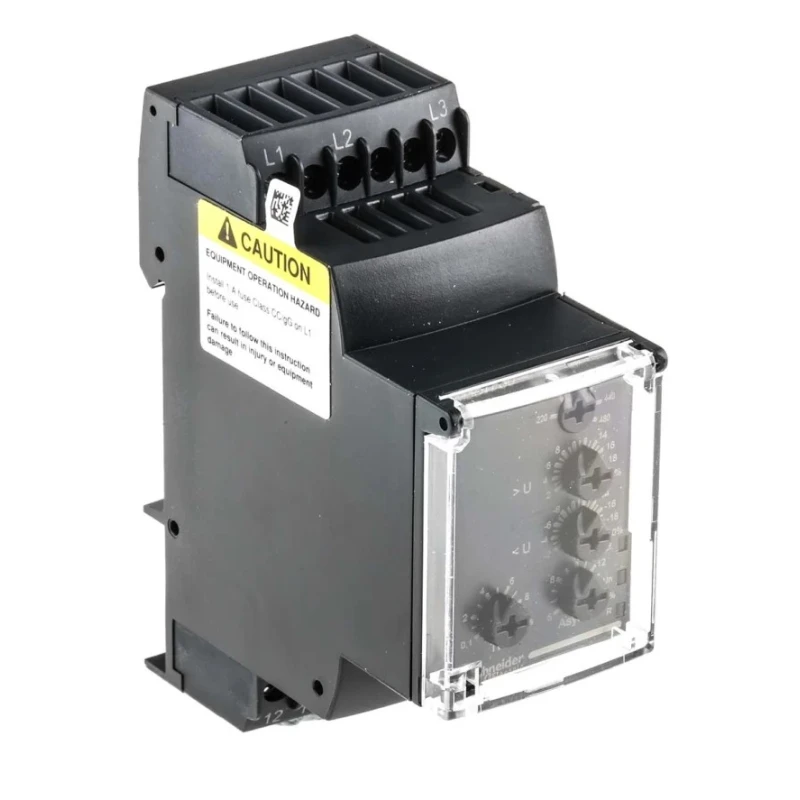

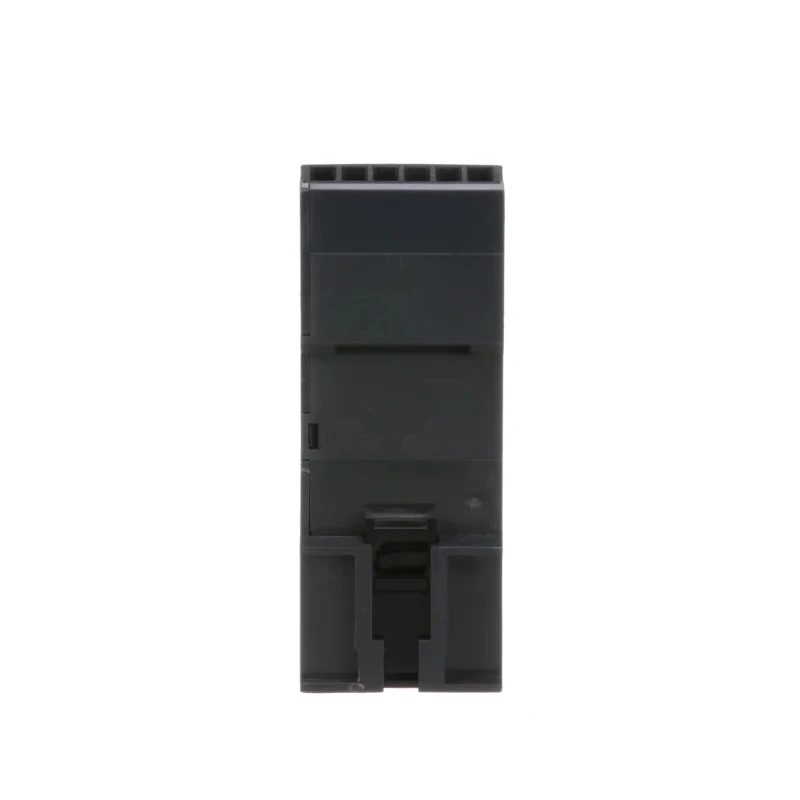

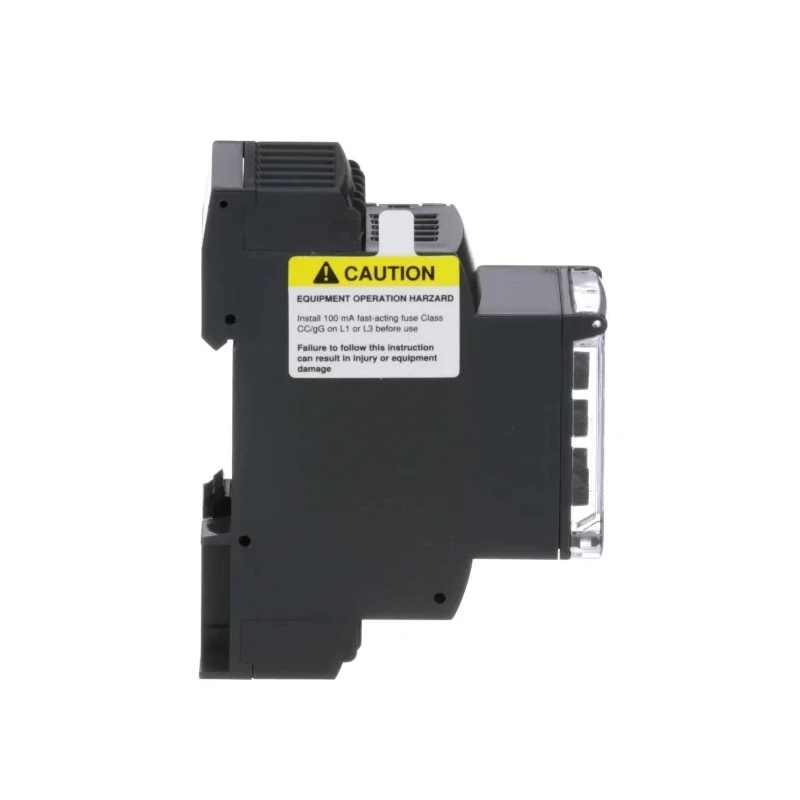

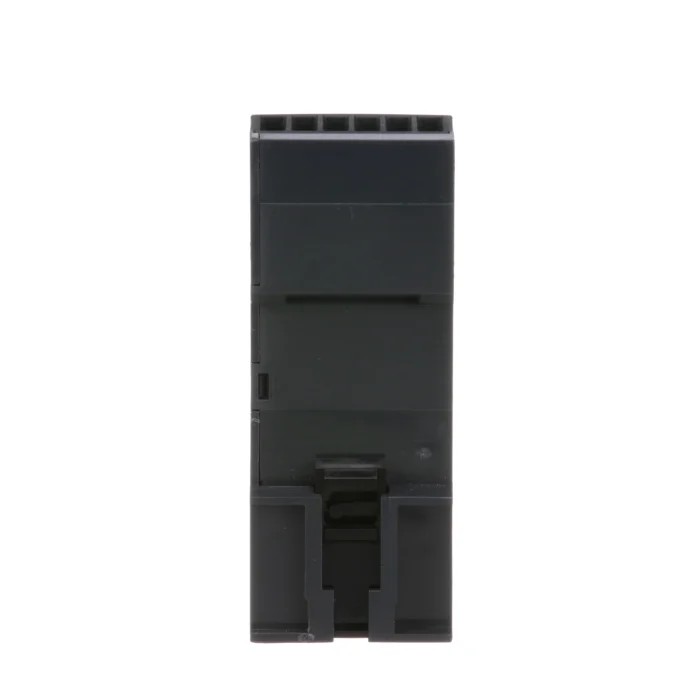

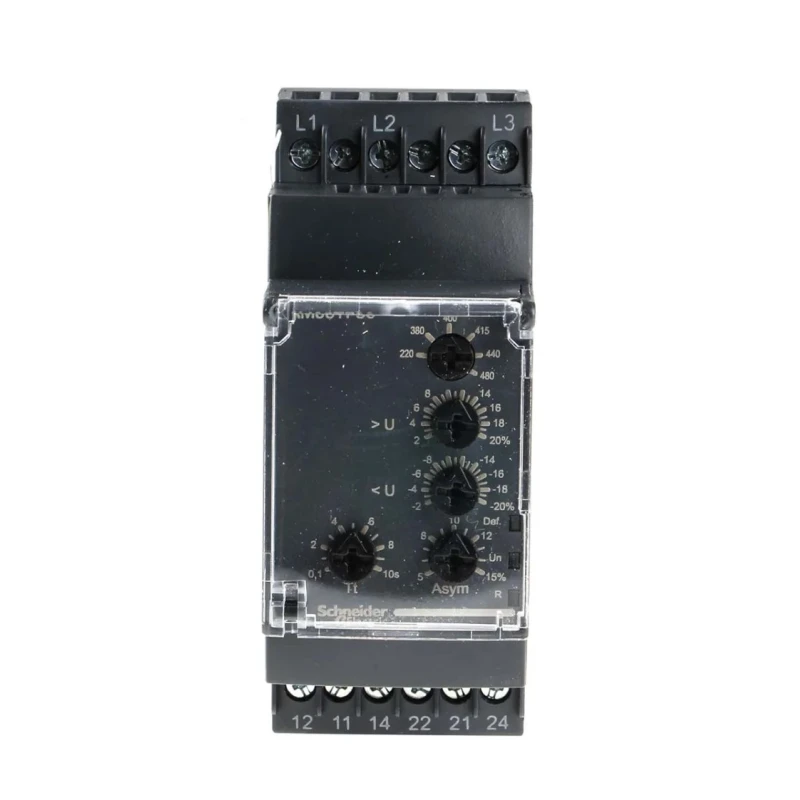

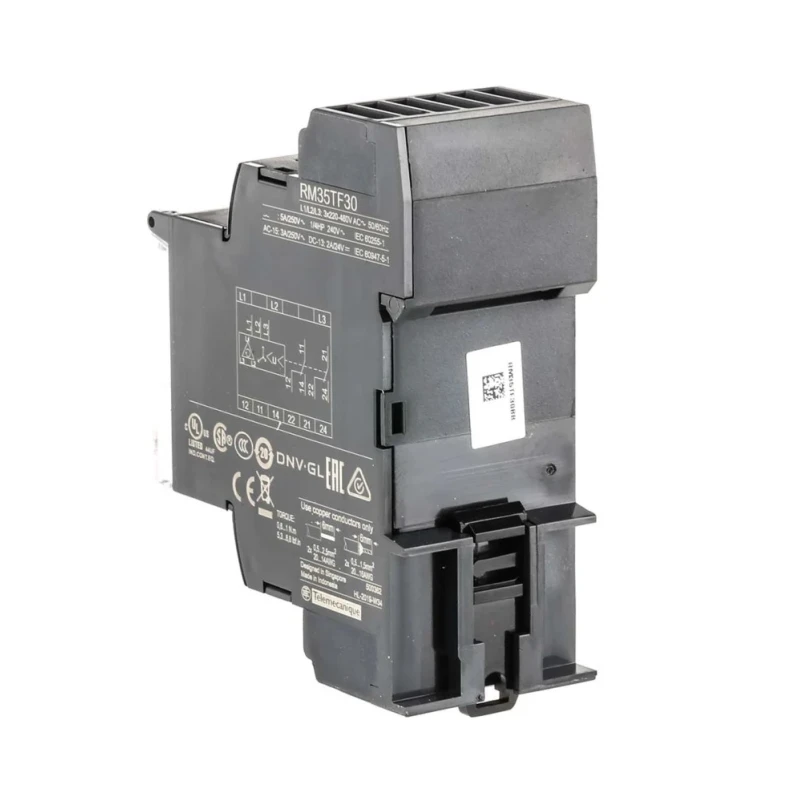

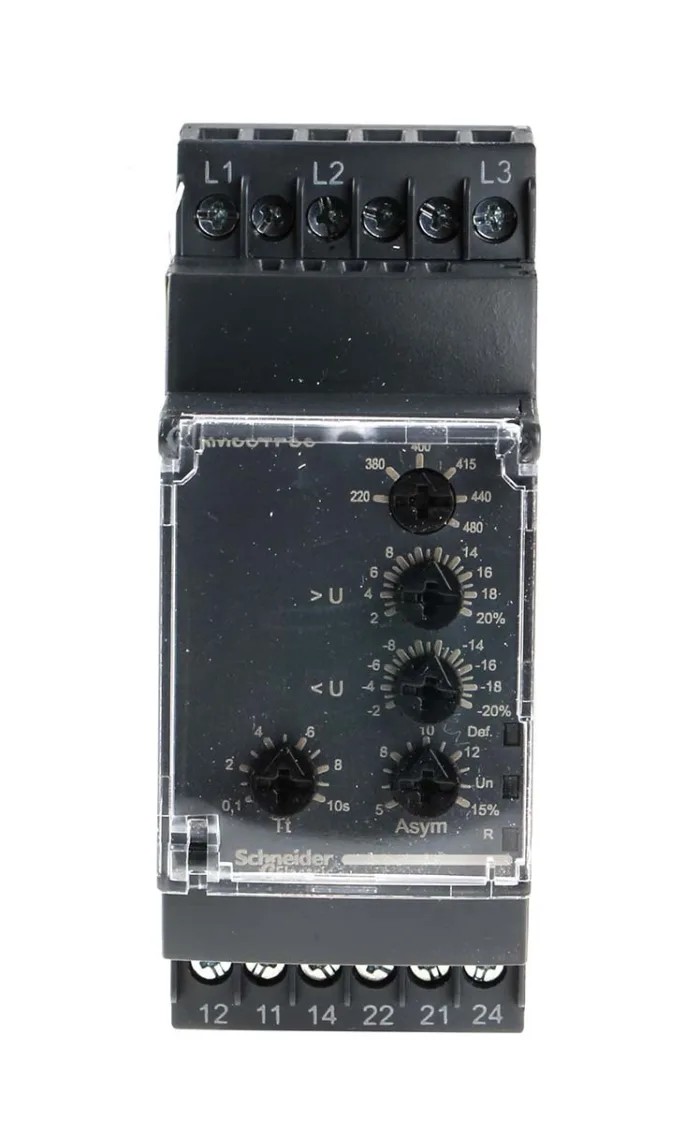

Schneider Electric Monitoring Relay 3 Phase DPDT DIN Rail 480V AC RM35TF30

Schneider Electric RM35TF30 is a multifunctional 3 phase monitoring relay designed for industrial automation and electrical control systems. It provides protection by monitoring phase sequence, phase failure, asymmetry, and undervoltage conditions, ensuring electrical circuits operate safely under varying conditions. The relay minimizes risk of equipment damage and fire hazards through rapid disconnection during fault events.

The device features a double-pole double-throw (DPDT) contact configuration with a switching voltage rating of up to 250V AC/DC and a contact current rated at 5A. Its compact design allows for DIN rail installation with a 35mm width, facilitating straightforward integration into control panels.

Equipped with built-in LED indicators, users can easily verify operational status and output signals. The relay casing is made from self-extinguishing plastic and offers IP20 and IP30 protection, safeguarding against penetration by tools and wires, ensuring operational reliability in demanding environments.

Designed to withstand harsh industrial conditions, it offers mechanical durability with up to 30 million operational cycles and can function in ambient temperatures ranging from -20°C to 50°C. The relay adheres to multiple safety and performance standards including UL, CSA, GL, C-Tick, GOST, and EN/IEC 60255-1, certifying its suitability for global use.

Monitors phase sequence, failure, asymmetry and undervoltage to protect three-phase systems. Compact 35mm casing designed for DIN rail mounting in control panels. DPDT contact configuration rated for 5A and 250V AC/DC switching.

Visual LED status indicator for easy monitoring during operation. Self-extinguishing plastic housing with IP20 and IP30 protection ratings. Wide operating temperature range supports diverse industrial environments. Mechanical durability ensures long service life of up to 30 million cycles.

Approved to multiple international standards ensuring compliance and reliability. Applications include textile industry, lifts, water management, warehouses, and more.

This Schneider Electric Monitoring Relay is an essential component for safeguarding three-phase power systems in industrial settings. Its robust functionality and compliance with global standards make it ideal for automation, electrical control, and power monitoring tasks. EnvMart offers this high-quality relay with reliable performance and long-term durability, suitable for demanding applications.
