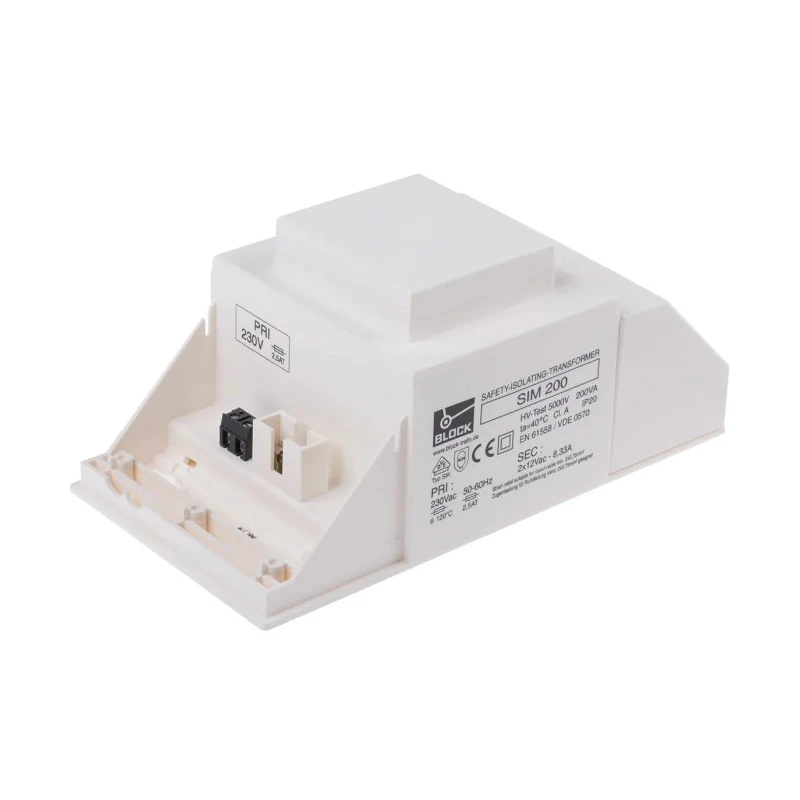

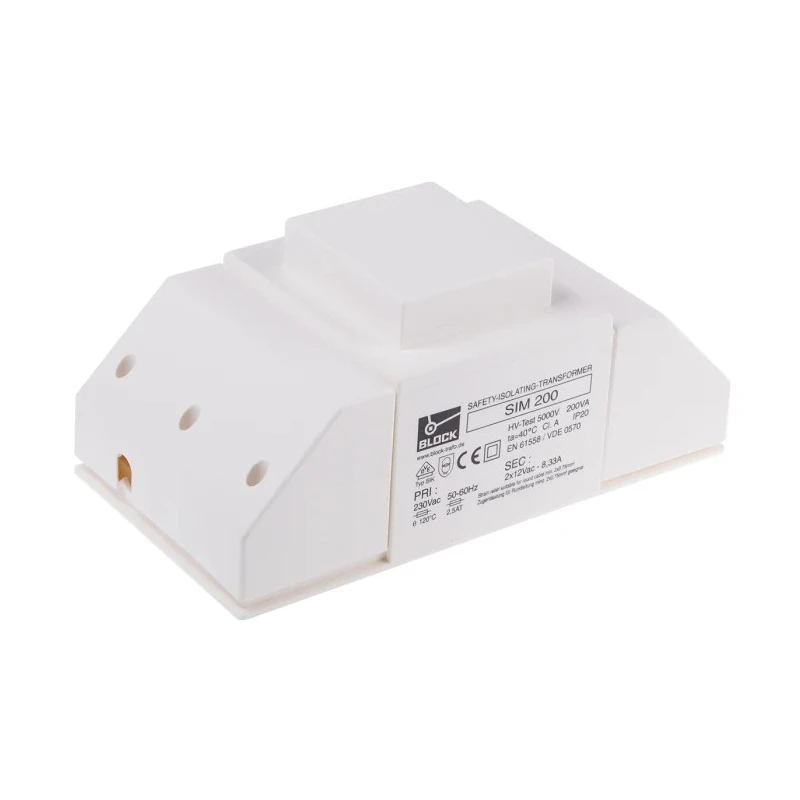

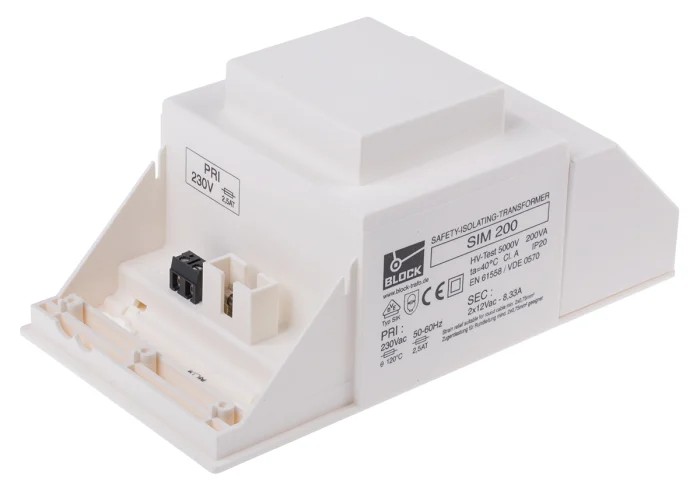

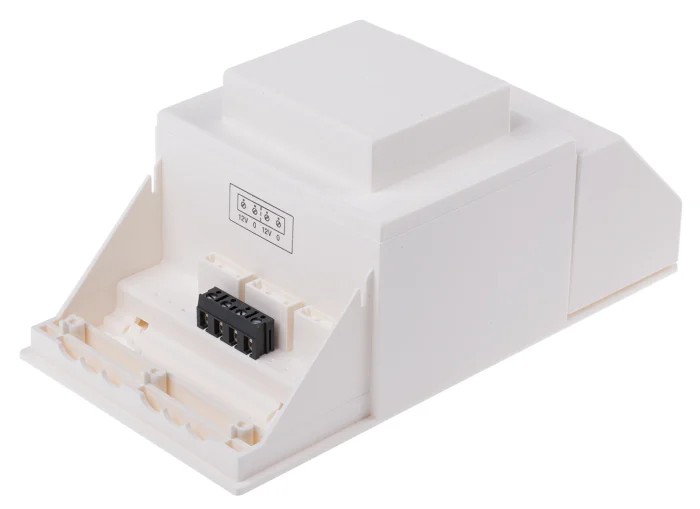

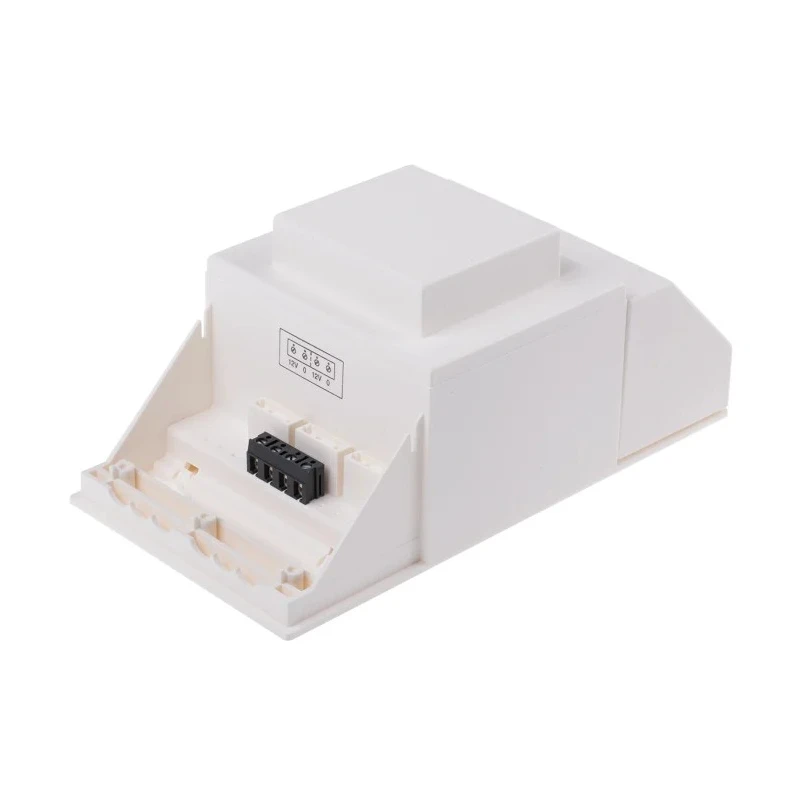

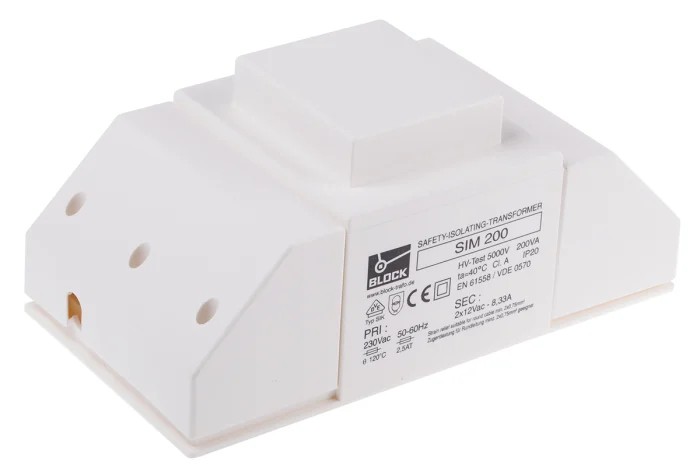

Block 2 Output 200 VA Chassis Mount Transformer, 230 V ac Primary, 2 x 12 V ac Secondary, cUL 506, EN 61558, VDE SIM 200

Block SIM 200 is a high-quality chassis mount transformer designed for industrial and commercial electrical applications requiring reliable dual output isolation and safety compliance.

This safety isolating transformer supports a single phase 230 V ac primary input and provides two independent 12 V ac secondary outputs. These can be connected in series or parallel to suit specific voltage needs.

With a rated power capacity of 200 VA, the SIM 200 assures stable voltage transformation suitable for sensitive equipment and control circuits.

The unit features thermal overload protection and short circuit proof construction to ensure operational safety and minimize downtime. It is encapsulated in a sturdy plastic housing suitable for mounting within electrical chassis via integrated mounting holes.

Efficiency is a key aspect with a typical 88% energy conversion rate, reducing power losses during operation. The transformer includes a primary fuse for extra electrical fault protection.

The insulation category is Class B with Class 2 construction, providing high dielectric strength and enhanced electrical isolation. Protection index IP20 makes it suited for indoor environments where dust ingress is limited.

The dimensions of 223 mm length, 223 mm width, and 117 mm depth enable compact installation without compromising performance. Weighing 3.6 kg, it strikes a balance of robustness and manageable weight for easy handling.

This product meets multiple international standards and approvals such as cUL 506, EN 61558, VDE 0570, and UL 506, confirming its compliance with safety and quality benchmarks required in various industrial sectors including manufacturing, instrumentation, and electrical control assemblies.

Single phase 230 V ac input voltage. Dual 12 V ac secondary outputs. Short circuit proof with thermal overload protection. Mounting holes for chassis installation. High efficiency of approximately 88%. Primary fuse protection integrated.

Class B insulation and Class 2 construction. IP20 protection rating. Complies with cUL 506, EN 61558, VDE 0570, UL 506. Maximum ambient operating temperature +40°C. Dimensions 223 x 223 x 117 mm; Weight 3.6 kg.

Block SIM 200 Chassis Mount Transformers are ideal for use in electrical power supplies, industrial control panels, automation systems, and other commercial electrical installations requiring dependable isolation and voltage conversion.
