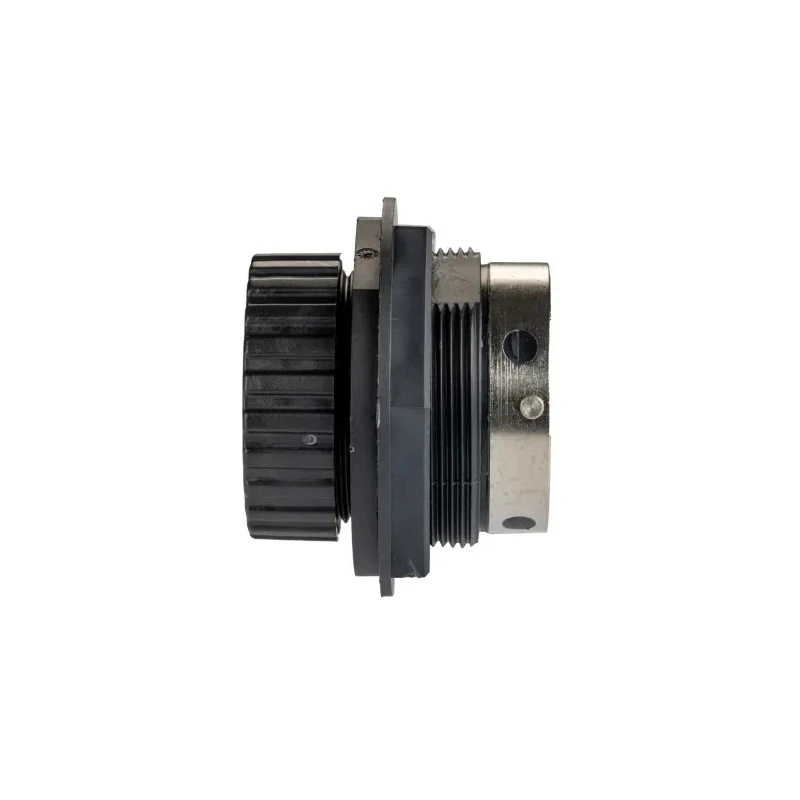

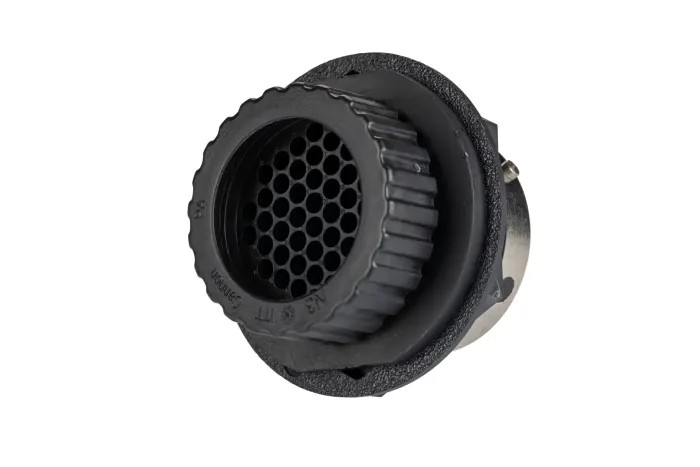

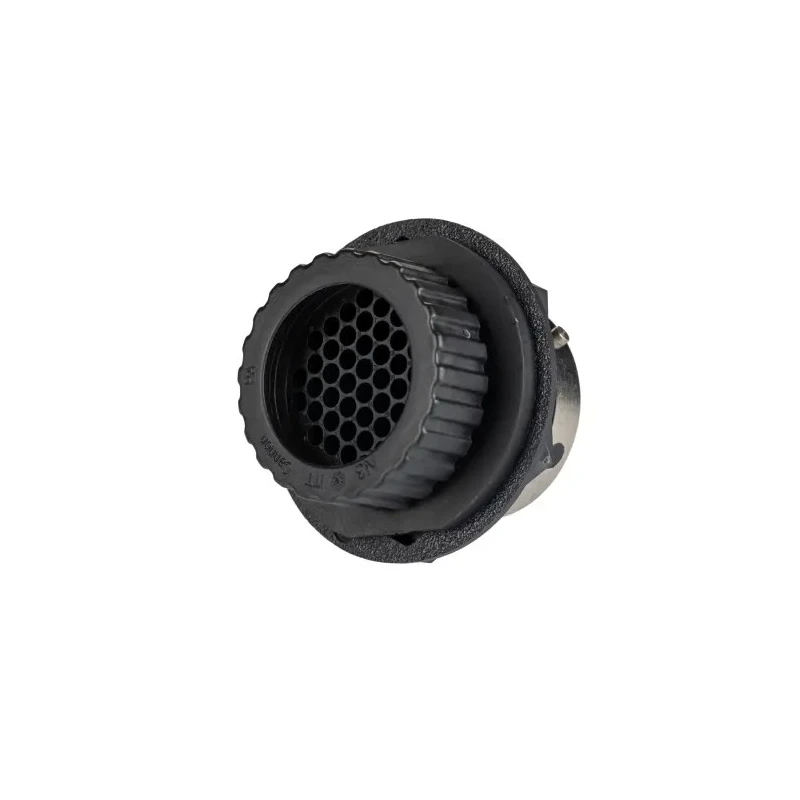

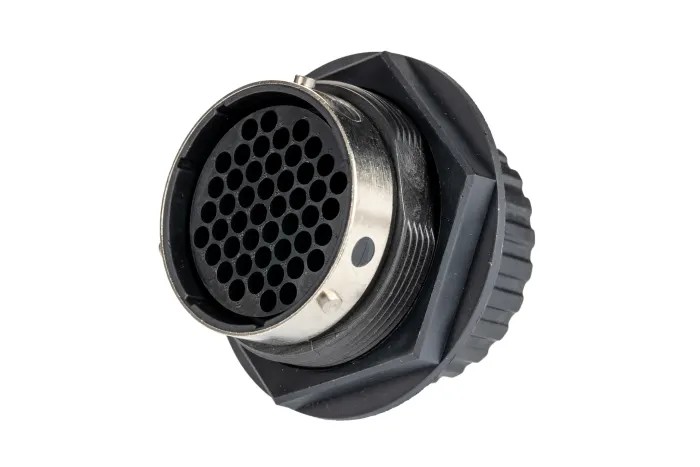

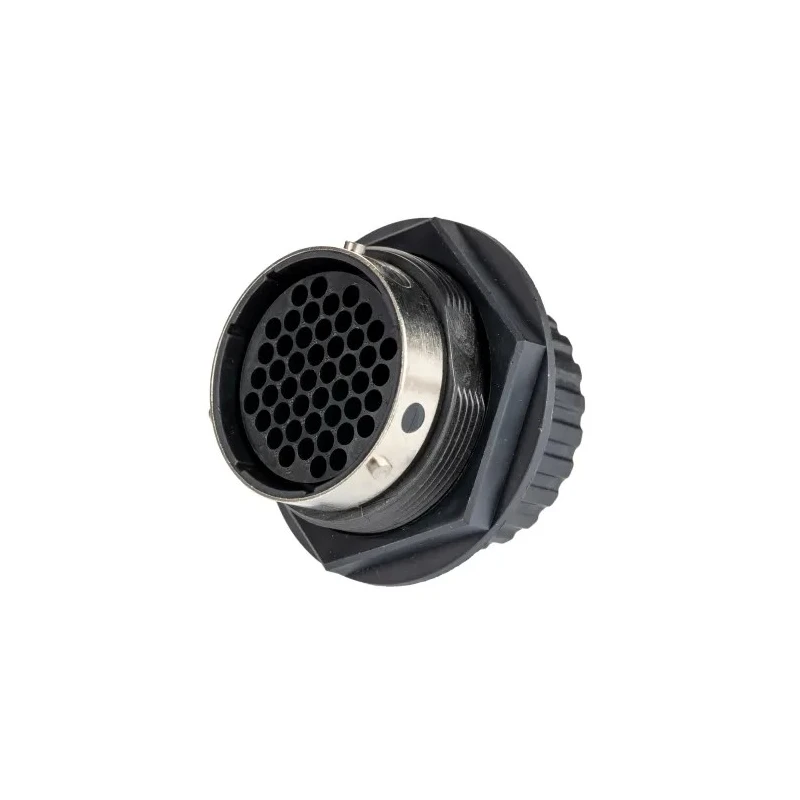

ITT Cannon Circular Connector Panel Mount, 48 Contacts, Socket Female, IP67, Polymer Housing TN7S24-0048S1L / 192900-0481
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 250V |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 30A |
| Model | TN7S24-0048S1L / 192900-0481 |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Polymer |
| Contact Material | Copper |
| Series | Trident Neptune |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 48 |
| Contact Plating | Nickel |
| Number of Contacts | 48 |
| Contact Gender | Female |
| Shell Size | 24 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- Features a socket female contact designed for high durability.
- Provides an IP67 rating ensuring dust and water ingress protection.
- Constructed with a polymer housing for lightweight and resilience.
- Operates at 250 volts with a current capacity of 30 amperes.
- Employs crimp termination for secure electrical connection.
- Includes a strong bayonet mating type for reliable coupling.
- Operates in a wide temperature range from -55°C to 105°C.
- Ideal for industrial, automotive, marine, and process control applications.
Product Description
ITT Cannon TN7S24-0048S1L / 192900-0481 is a highly reliable circular connector panel mount designed for industrial applications requiring strong and secure electrical connections. Featuring 48 contacts, this connector is ideal for environments where durability and performance are critical.
The connector offers a socket female contact type housed in a polymer shell, providing good environmental protection with its IP67 rating. This ensures the connector is dust-tight and protected against water ingress, making it suitable for use in harsh industrial, automotive, marine, and process control settings.
Rated at 250 volts and supporting currents up to 30 amperes, it uses crimp termination to achieve a secure and stable electrical contact. The connector features a bayonet mating type which guarantees a robust mechanical lock, ensuring reliable performance even under vibration or movement.
Operating temperatures range from -55°C up to 105°C, supporting various demanding applications. The shell size is 24 mm with a standard connector size and straight orientation, facilitating panel mounting via jam nut fixing. Its design includes "O" ring interface seals and rubber cable seals to maintain IP67 sealing, with necessary accessories for secure installation.
The Trident Neptune series combines power and signal contacts and is widely used across automotive, marine, and process control industries. The connector's nickel-plated copper contacts ensure corrosion resistance and long service life.
Robust IP67 rated polymer housing ensures environmental resistance. 48 contacts arranged in power/signal configuration. Bayonet coupling system for secure connections. Temperature rated from -55°C to 105°C for versatile use.
Crimp termination type provides reliable electrical contacts. Designed for panel mount installation using jam nut fixing. Suitable for industrial, automotive and marine applications. Explore more Industrial Circular Connectors on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage rating of 250 volts.
This model has a current capacity of 30 amperes.
It employs crimp termination for secure electrical connections.
It has an IP67 rating, ensuring it is dust-tight and protected against water ingress.
The housing is made of polymer, and the contacts are nickel-plated copper.
It operates within a temperature range of -55°C to 105°C.

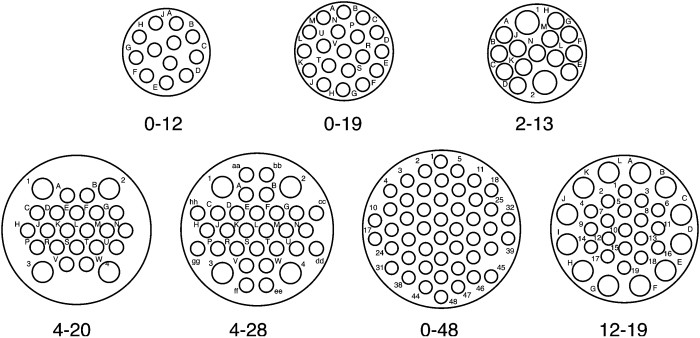

This connector features 48 contacts arranged in a power/signal configuration.
It features a bayonet mating type for reliable coupling.
The shell size is 24 mm, designed for standard connector size.
Yes, it is designed for panel mount installation using jam nut fixing.
It is ideal for industrial, automotive, marine, and process control applications.
The country of origin for this connector is Hungary.
