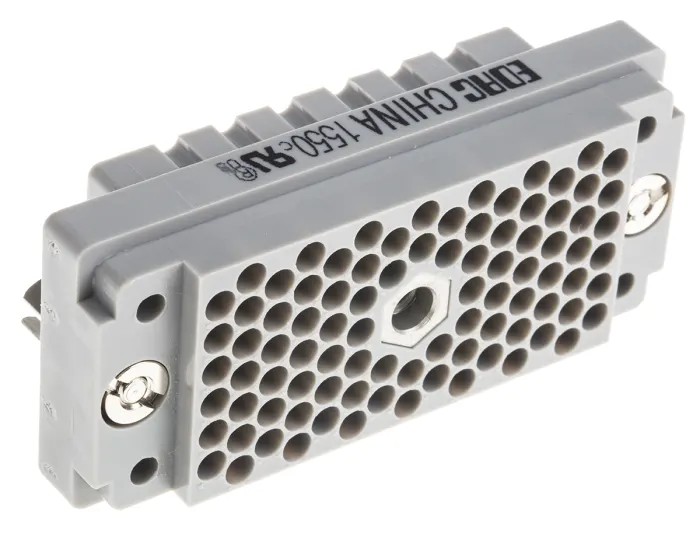

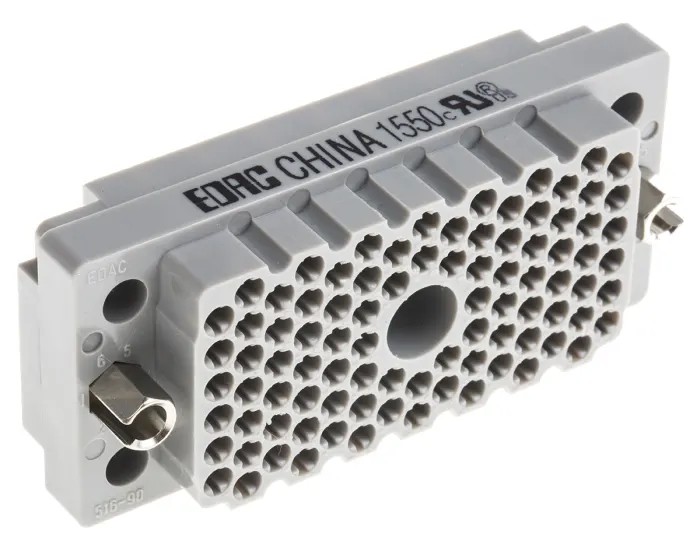

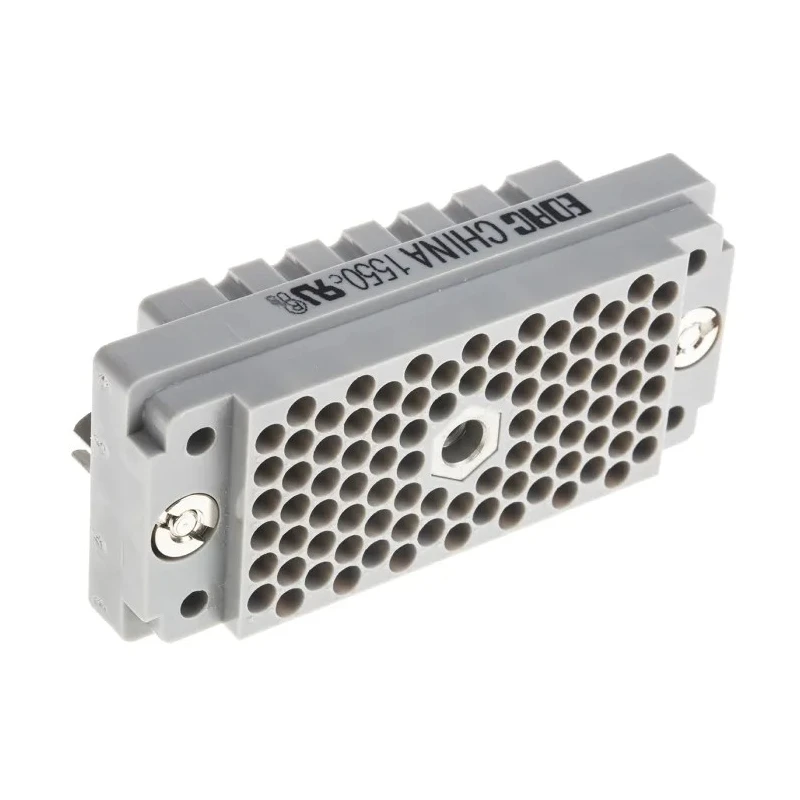

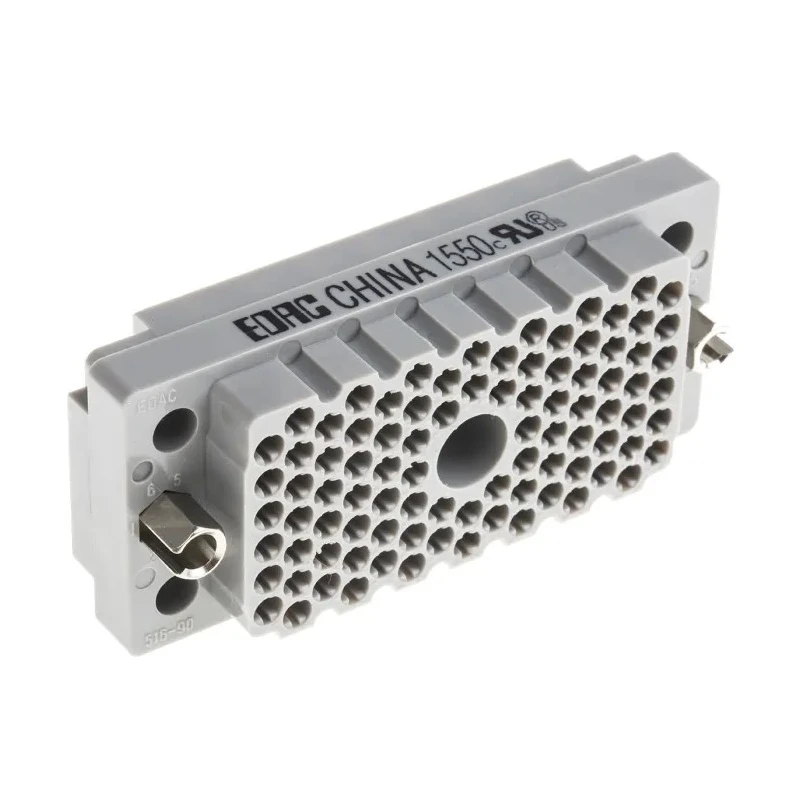

EDAC 516 Heavy Duty Power Connector 90 Contacts Straight Panel Female 8.5A Crimp Termination 2000Vrms 516-090-000-402
Specifications
| Country of Origin | India |
|---|---|
| Brand | EDAC |
| Orientation | Straight |
| Current | 8.5A |
| Mount Type | Panel |
| Contact Material | Phosphor Bronze |
| Series | 516 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 90 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- The connector features 90 contacts arranged in a straight orientation for panel mounting.
- Current rating of 8.5 amperes ensures suitability for high-power applications.
- Operates at voltages up to 2000Vrms providing excellent dielectric strength.
- Contacts are made of phosphor bronze with gold plating for corrosion resistance and high conductivity.
- Operating temperature range extends from -65°C to 105°C to ensure performance in harsh environments.
- Termination type is crimp allowing secure and reliable cable connection.
- The connector gender is female with hermaphroditic metal-to-metal contacts for flexible configurations.
- Polycarbonate housing offers durable insulation and mechanical protection.
Product Description
EDAC 516-090-000-402 is a Heavy Duty Power Connector from the EDAC 516 series, designed with 90 female contacts and straight orientation for panel mounting. It features a crimp termination system, allowing reliable and secure connections in demanding applications. The connector supports a current rating of 8.5A and can withstand voltages up to 2000Vrms. It is engineered for use in industrial, automotive, railway signalling, audio broadcast, and oil and gas industries where reliability and safety are paramount.
The contacts are constructed from phosphor bronze and plated with gold to prevent corrosion and improve electrical conductivity. This series uses a hermaphroditic metal-to-metal contact design, providing high-density and versatile connector configurations. Its housing is made of polycarbonate, ensuring robust insulation and mechanical protection. The temperature operating range stretches from -65°C to 105°C, making it suitable for extreme operational environments.
This connector is part of the 516 series and is suitable for applications requiring high current carrying capacity and resistance to harsh conditions. It guarantees secure connections with its crimp termination type, supporting both fixed and free halves of the connector, offering design flexibility.
The connector features 90 contacts arranged in a straight, panel mount configuration. Current rating is 8.5 amperes for heavy duty applications. Gold-plated phosphor bronze contacts ensure high conductivity and corrosion resistance.
Operating temperature range from -65°C to 105°C accommodates harsh conditions. Crimp termination type provides secure and reliable cable connections. Polycarbonate housing offers sturdy insulation and mechanical protection.
Suitable for use in railway signalling, automotive control, oil and gas, and audio broadcast systems. Hermaphroditic metal-to-metal contacts enable flexible connector mating arrangements.
This product is ideal for industrial and commercial electrical connectivity requirements where high density, durability, and electrical integrity are critical. Explore more specialized connectors and components at EnvMart to meet your complex application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 8.5 amperes, making it suitable for high-power applications.
It operates at voltages up to 2000Vrms, providing excellent dielectric strength.
The contacts are made of phosphor bronze and are gold plated to enhance corrosion resistance and conductivity.
The operating temperature range extends from -65°C to 105°C, allowing it to perform in harsh environments.
It features a crimp termination type, ensuring secure and reliable cable connections.
This model features 90 contacts arranged in a straight orientation for panel mounting.
The connector is designed as a female connector with hermaphroditic metal-to-metal contacts for flexible configurations.
It is designed for panel mounting, making it suitable for various installation scenarios.
It is suitable for use in industrial, automotive, railway signalling, audio broadcast, and oil and gas industries.
This connector complies with ANSI/ESD S20.20 (2014) and BS EN 61340-5-1 (2007) standards.
It features a polycarbonate housing that provides durable insulation and mechanical protection.
This connector is designed for applications requiring high current carrying capacity and resistance to harsh conditions.
