EDAC Heavy Duty Power Connector Straight Male 90 Way 8.5A 516-090-000-302

Free Delivery in India | Lowest Global Shipping Charges

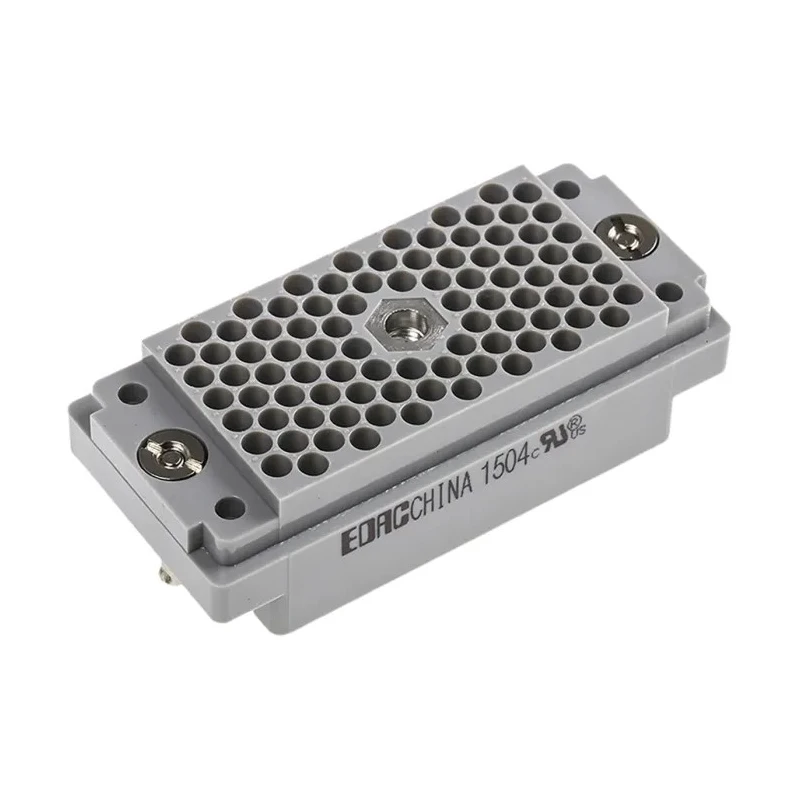

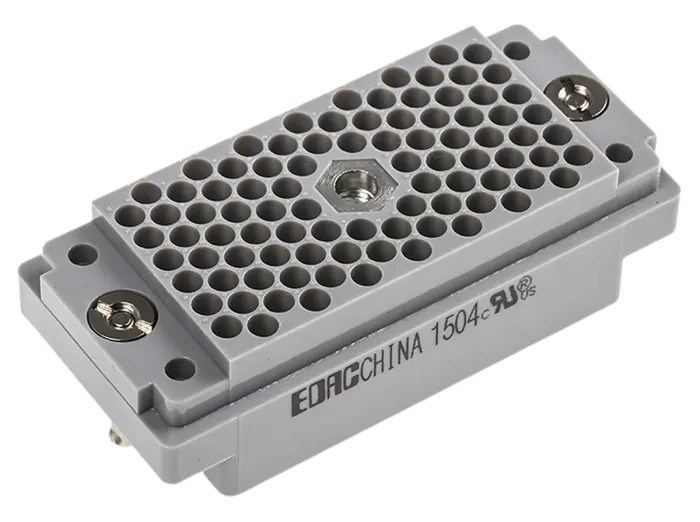

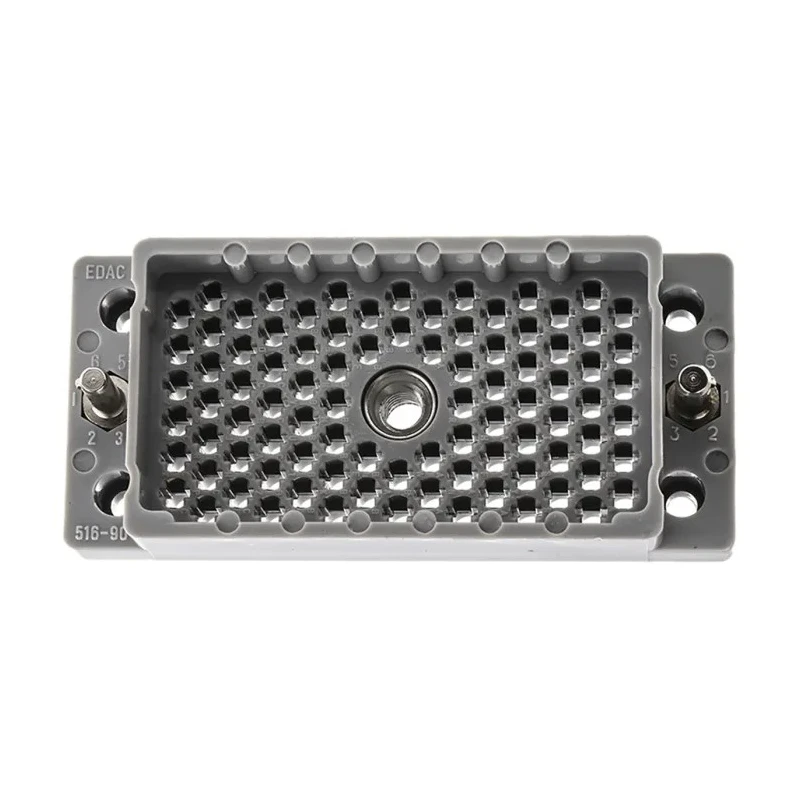

EDAC Heavy Duty Power Connector Straight Male 90 Way 8.5A 516-090-000-302

Name: EDAC Heavy Duty Power Connector Straight Male 90 Way 8.5A 516-090-000-302
Brand: EDAC
SKU: 179916
Price: 12.05 USD
Availability: InStock



Category Heavy Duty Power Connector Brand EDAC Condition New

Specifications

Country of Origin	India
Brand	EDAC
Orientation	Straight
Current	8.5A
Mount Type	Panel
Housing Material	Thermoplastic
Contact Material	Phosphor Bronze
Series	516
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Contact Plating	Gold
Number of Contacts	90
Contact Gender	Male
Connector Gender	Male
EDAC 516 90 Way Straight 3.81 mm Pitch D-Sub Connector MaleBrand	EDAC

Key Features

Constructed with a thermoplastic housing for durability and insulation.
Phosphor bronze contacts plated with gold ensure excellent conductivity and corrosion resistance.
Suitable for panel mounting with a crimp termination type for secure wiring.
Operates reliably within a temperature range of -65°C to 105°C.
Features 90 contacts providing high-density connection capability.
Designed for industrial applications requiring secure multi-pin cable to panel or cable connections.
Complies with EDAC 516 series standards ensuring compatibility and interchangeability.
Male connector configuration with straight orientation for easy installation.

Product Description

EDAC 516-090-000-302 Heavy Duty Power Connector is a straight male connector with 90 contact points, rated for a current of 8.5A. Its robust thermoplastic housing provides durability and electrical insulation suitable for demanding applications.

The phosphor bronze contacts are gold plated, offering superior conductivity, corrosion resistance, and reliable performance in harsh industrial environments.

This connector is designed for panel mounting and features a crimp termination type ensuring secure and efficient wiring. It operates effectively over a wide temperature range from -65°C to 105°C, making it suitable for a variety of environments.

The EDAC 516 range is widely recognized for high-density multi-pin connectors used in critical applications such as audio broadcast systems, railway signaling, oil and gas industry control systems, and general industrial and automotive control and test systems. This connector supports reliable cable to panel or cable to cable connections essential in industrial and manufacturing equipment.

Thermoplastic housing provides durability and electrical insulation. Phosphor bronze contacts with gold plating ensure conductivity and corrosion resistance. Panel mount type with crimp termination for secure connection.

Operates between -65°C and 105°C for diverse industrial conditions. Male straight connector orientation facilitates easy panel installation. 90 contact points for high-density connectivity. EDAC 516 series provides compatibility with related connectors and accessories.

Used in industrial, manufacturing, railway, and broadcast applications.

This product is ideal for professionals seeking a high-quality, reliable connector for heavy-duty power applications. Explore the full range of EDAC power connectors and accessories available on EnvMart for all your industrial connection needs.
