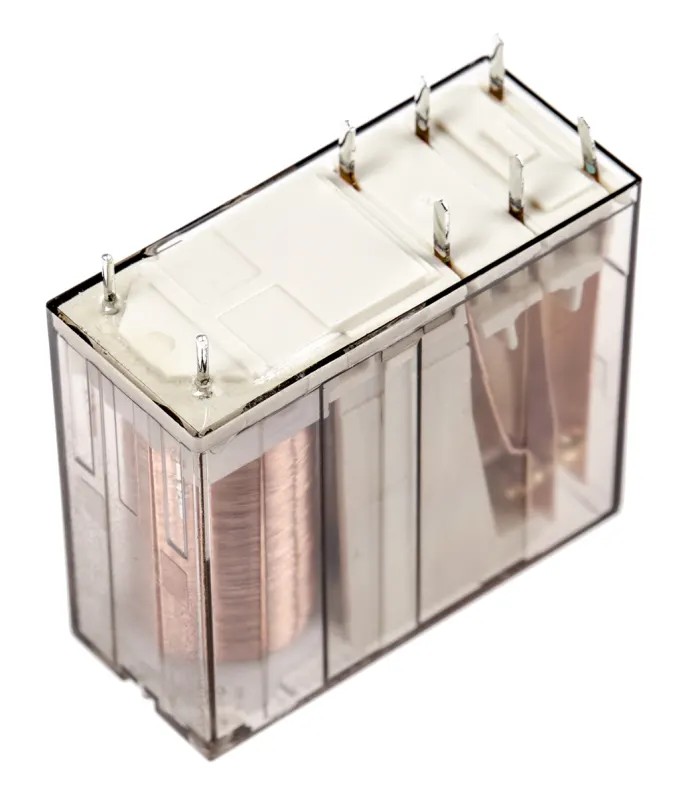

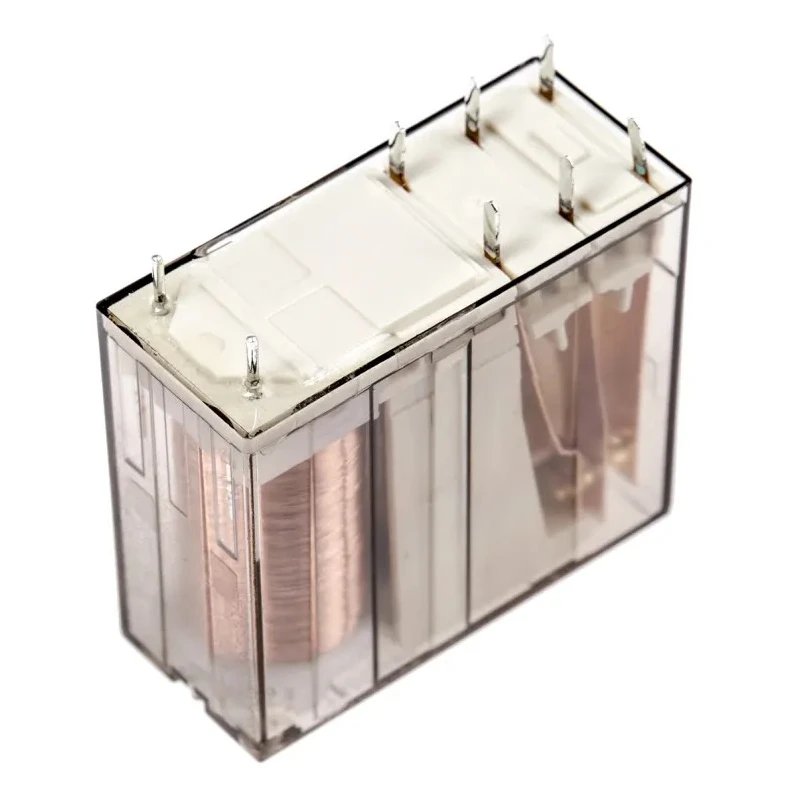

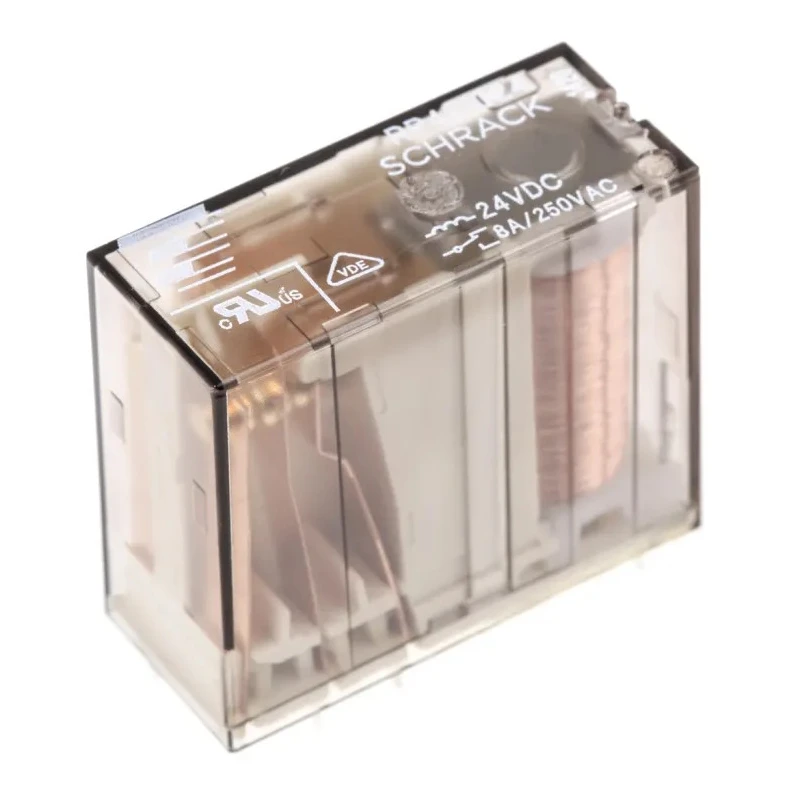

TE Connectivity PCB Power Relay 24V DC Coil 8A Switching Current DPDT RP421024
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 25.5mm |
| Length | 29mm |
| Model | RP421024 |
| Width | 12.6mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RPII |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, IEC 61810 |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 500mW |
Key Features
- The coil voltage is 24V DC with a coil resistance of 1.1kΩ.
- It features a DPDT contact configuration suitable for power switching applications.
- The relay supports a switching AC voltage of 400V with a maximum switching power of 2kVA.
- It operates reliably in temperatures from -40°C to 70°C.
- The coil power consumption is rated at 500mW.
- Silver alloy is used as the contact material to ensure durability and low contact resistance.

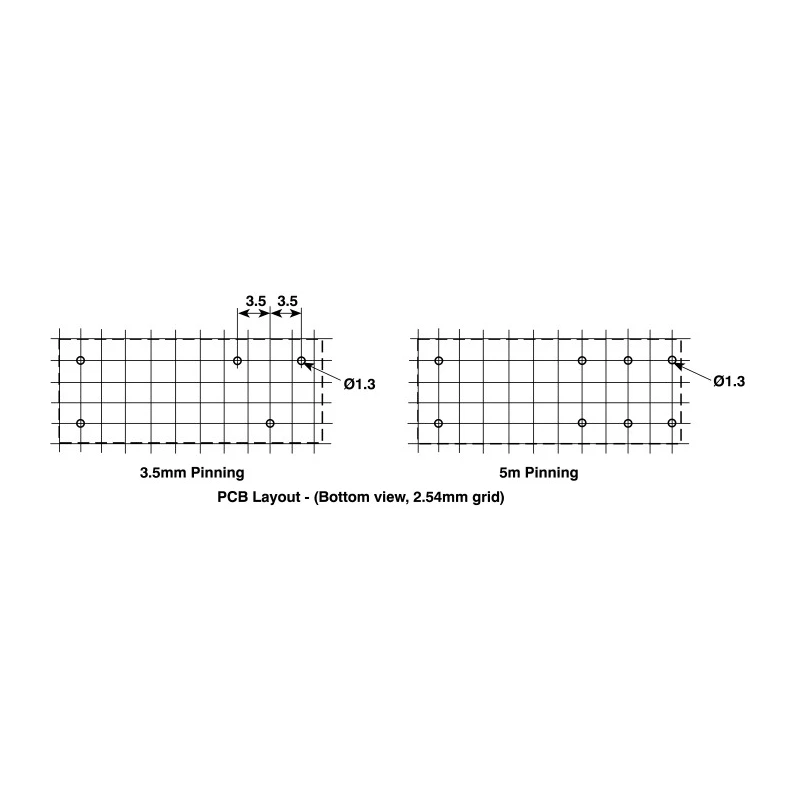

- The relay uses solder-type through-hole terminals for PCB mounting.

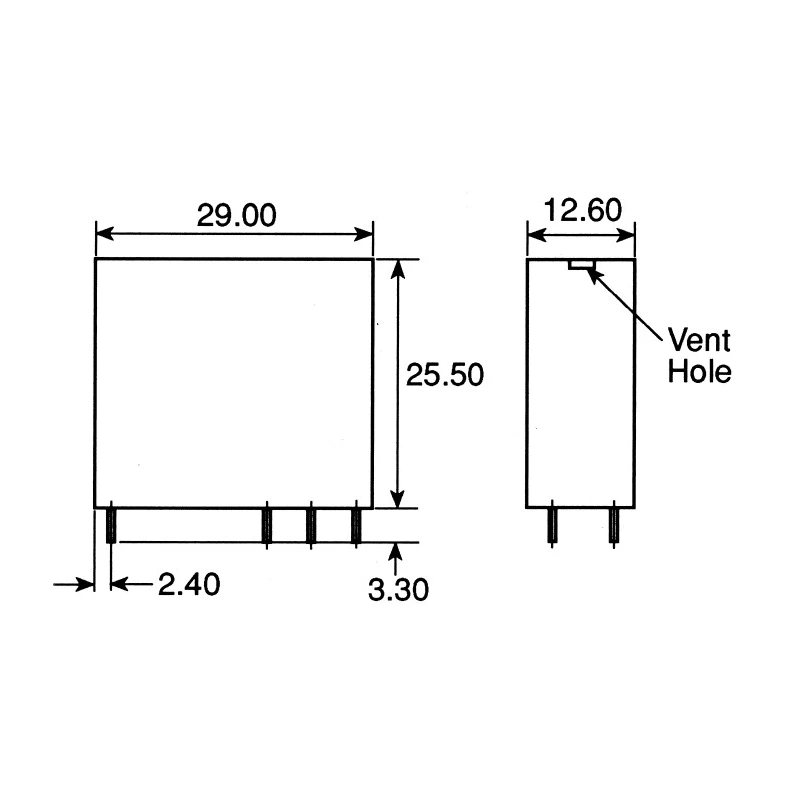

- Physical dimensions are 29mm length, 25.5mm height, and 12.6mm width.
Product Description
TE Connectivity RP421024 is a PCB mount non-latching power relay featuring a double pole double throw (DPDT) contact configuration. The relay is actuated by a 24V DC coil and is capable of handling an 8A switching current, making it suitable for various industrial and domestic power control tasks.
The coil resistance is specified at 1.1kΩ with a coil power of 500mW, ensuring efficient operation with minimal power consumption. Its silver alloy contacts provide reliable conduction and resistance to wear, enhancing relay longevity.
Designed for through-hole solder mounting on printed circuit boards, the relay has compact dimensions of 29mm in length, 25.5mm in height, and 12.6mm in width which optimizes space usage in assemblies.
The device can safely switch AC voltages up to 400V and switching power up to 2kVA, making it versatile for a broad range of power applications. It operates reliably across a temperature range from -40°C minimum to 70°C maximum, suitable for harsh environmental conditions.
Standards compliance includes RoHS and IEC 61810, reflecting its adherence to environmental and safety certifications. The relay is manufactured in the Czech Republic ensuring high-quality production standards.
Typical applications for this Power Relay include power supplies, domestic appliances, heating control systems, and other industrial automation uses. Its flux-resistant design and creepage/clearance distances of ≥8mm between coil and contact improve operational safety.
The coil voltage is 24V DC with coil resistance of 1.1kΩ. DPDT contact configuration supports versatile switching. Solder-type through-hole terminal mount for PCB integration. Silver alloy contact material ensures durability.
Operating temperature range: -40°C to 70°C. Switching current capacity of 8A. Switching AC voltage up to 400V with power rating of 2kVA. Compact dimensions of 29mm (L) × 25.5mm (H) × 12.6mm (W). RoHS compliant and meets IEC 61810 standards.
Manufactured in the Czech Republic. Explore EnvMart's comprehensive range of electrical relays and power control components for robust and reliable industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC and has a coil resistance of 1.1kΩ.
It is capable of handling a maximum switching current of 8A.
This relay features a double pole double throw (DPDT) contact configuration.
The relay can switch AC voltages up to 400V.
It supports a maximum switching power of 2kVA.
The physical dimensions are 29mm in length, 25.5mm in height, and 12.6mm in width.
It operates reliably in temperatures ranging from -40°C to 70°C.
It uses solder-type through-hole terminals for PCB mounting.
The contacts are made of silver alloy, which ensures low contact resistance and durability.
It is RoHS compliant and meets IEC 61810 standards.
This relay is manufactured in the Czech Republic.
Typical applications include power supplies, domestic appliances, heating control systems, and industrial automation.
