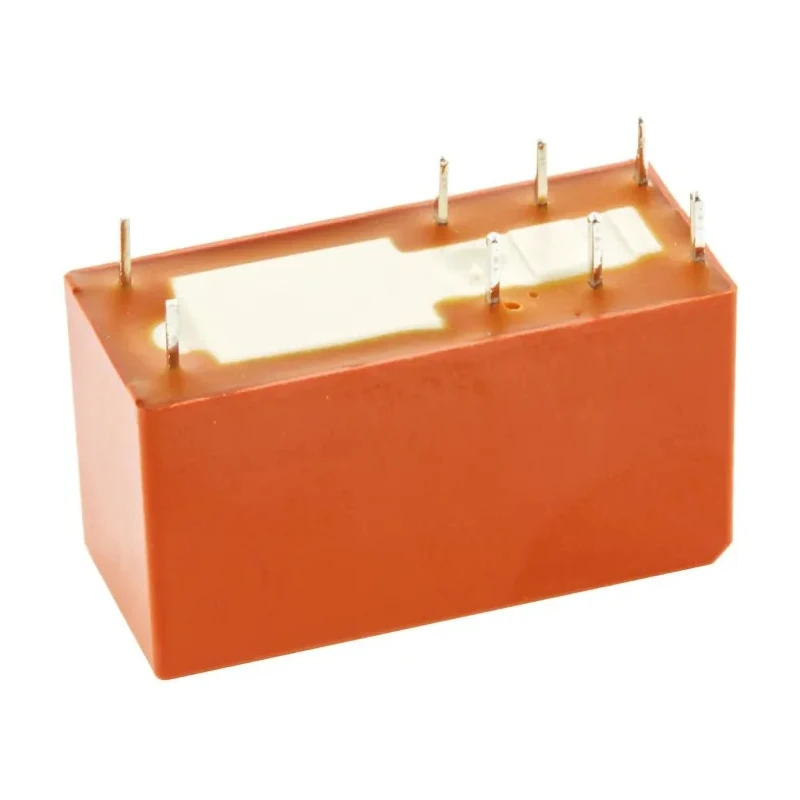

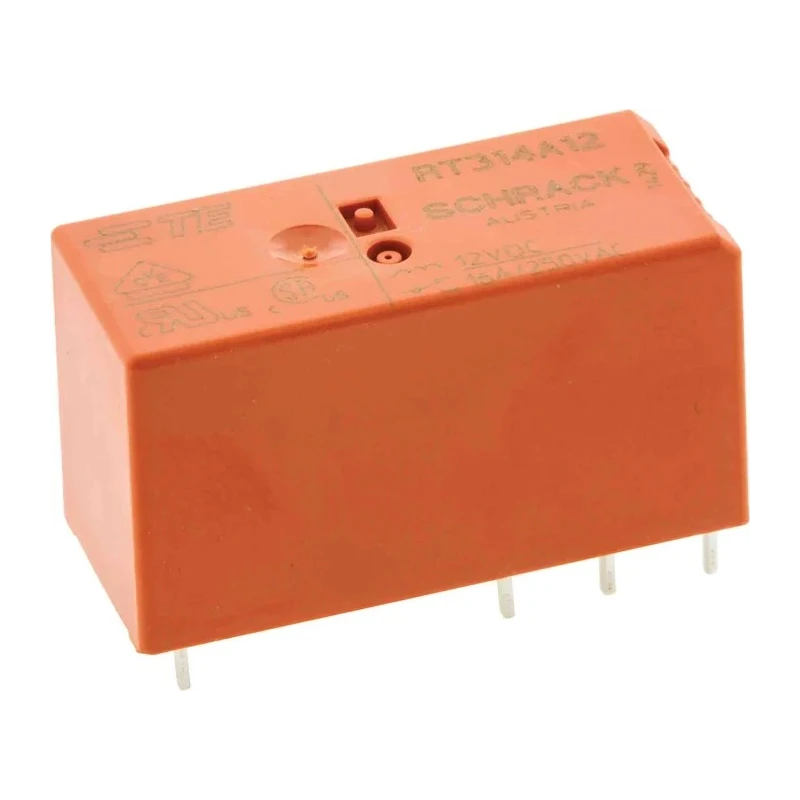

TE Connectivity PCB Power Relay 12V DC Coil 16A Switching Current SPDT RT314A12
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314A12 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -10°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
Key Features
- Coil voltage of 12V DC ensures efficient relay operation.
- Single Pole Double Throw (SPDT) contact configuration for versatile switching.
- Switching current rated at 16A suitable for moderate power applications.
- PCB mount type with solder terminals for easy installation.
- Constructed with silver alloy contact material for enhanced conductivity and durability.
- Coil resistance measured at 360 Ohms ensures coil stability.
- Operating temperature range from -10°C to maximum 85°C caters to varied environments.
- Switching AC voltage capacity up to 400V AC.
Product Description
TE Connectivity RT314A12 PCB Power Relay is a compact and reliable SPDT relay designed for use in electrical and automation applications. With a coil voltage of 12V DC and a switching current capability of 16A, this relay is suitable for controlling moderate power loads on printed circuit boards. It features solder terminals that allow for straightforward PCB integration.
The relay is part of the SCHRACK series and utilizes silver alloy contacts to provide long-lasting electrical conductivity and resistance to wear. The coil resistance is specified as 360 Ohms, supporting steady coil performance. The device operates efficiently over a temperature range from -10°C to 85°C, making it appropriate for various industrial and commercial environments.

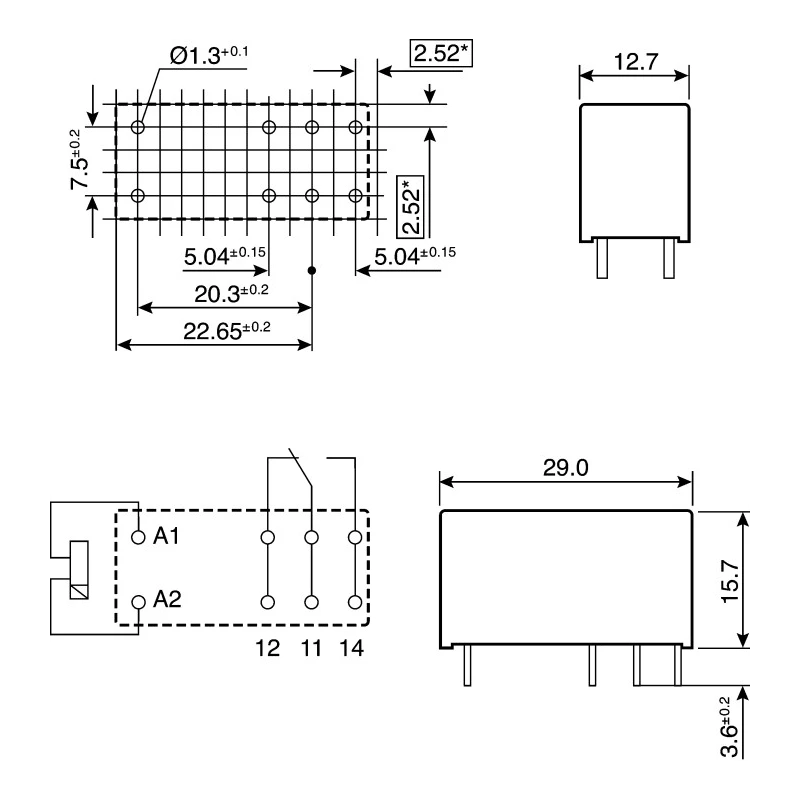

The relay's switching AC voltage rating is 400V AC, making it versatile for AC control circuits. Its physical dimensions are 29mm in length, 15.7mm in height, and 12.7mm in width, which supports compact PCB layouts. The relay is RoHS compliant, ensuring it meets environmental and safety directives.
Typical applications include automation systems, signal conditioning, and power control in electrical circuitry, applicable in industrial manufacturing, laboratory testing setups, HVAC controls, and other commercial electrical equipment.
Coil voltage of 12V DC ensures efficient relay operation. Single Pole Double Throw (SPDT) contact configuration for versatile switching. Switching current rated at 16A suitable for moderate power applications. PCB mount type with solder terminals for easy installation.
Compact dimensions ensure easy incorporation into PCB assemblies. Silver alloy contacts enhance conductivity and durability. Wide operating temperature range for various industrial environments. Switching AC voltage up to 400V for versatile usage.
Complies with relevant RoHS and environmental standards. Explore more Power Relay options within the Electronics & Electricals category on EnvMart to find products tailored to your specific automation and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC, ensuring efficient operation.
The maximum switching current for the RT314A12 is rated at 16A, suitable for moderate power applications.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing versatile switching capabilities.
The relay can switch AC voltages up to 400V AC, making it versatile for various applications.
The physical dimensions are 29mm in length, 15.7mm in height, and 12.7mm in width.
The coil resistance is measured at 360 Ohms, which helps ensure coil stability during operation.
The operating temperature range is from -10°C to a maximum of 85°C, accommodating various environments.
This relay is designed for PCB mounting and features solder terminals for easy installation.
The contacts are constructed from silver alloy, enhancing conductivity and durability.
Yes, it is RoHS compliant, ensuring it meets relevant environmental and safety directives.
Typical applications include automation systems, signal conditioning, and power control in electrical circuitry.
This model is part of the SCHRACK series, which is known for its reliable relay solutions.
