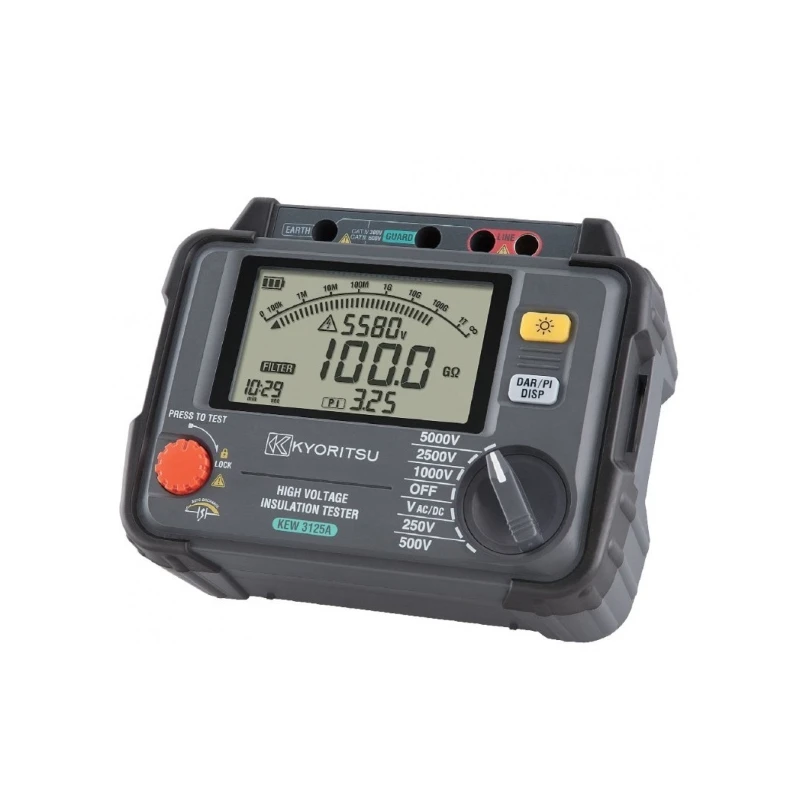

Kyoritsu KEW 3125A 5KV Digital Insulation Tester With PI & DAR
Specifications
| Relative Humidity | Less Than 85% RH |
|---|---|
| Operating Temperature | 0 Degree to 50 Degree C |
| Storage Temperature | -20 Degree to 70 Degree C |
| Model | DIT 3125A |
| Weight | 1.027 Kg |
| Power Input | C8 Battery Alkaline |
| Type of Product | Digital Insulation Tester |
| Short Circuit Current | 1.3 mA |
| Resistance Accuracy | +-(5 % +- 5 Digits) |
| Insulation Test Voltage (V) | 0-5000 V |
| Dimension In mm (LXWXH) | 153x213x95 mm |
| AC Voltage Measurement Range | 30-600 V |
| AC Voltage Measurement Resolution | 1 V |
Key Features
- LCD Backlight Display
- Auto Power Off
- Low Battery Indication
- Auto Discharge Functions
Product Description
Kyoritsu KEW 3125A 5KV Digital Insulation Tester With PI & DAR, The Kyoritsu 3125A Insulation resistance tester is easy to use features a great digital backlit display, and also has the functionality to test both the dielectric absorption (DA) and polarization index (PI)ratio. Both AC and DC voltage can be measured by the Kyoritsu insulation resistance meter, between 30 and 600V.The 3125A insulation resistance tests up to 1TO over 5 voltage ranges 250V, 500V, 1000V, 2500V, and 5000V. A filter function allows the Kyoritsu 3125A to obtain stable measurements by reducing noise interference in industrial environments and also, an indication of the output voltage and discharge voltage is displayed on the screen
- Timer Functions
- Polarization Index
- Bar graph Display
- DAR , USB Functions
