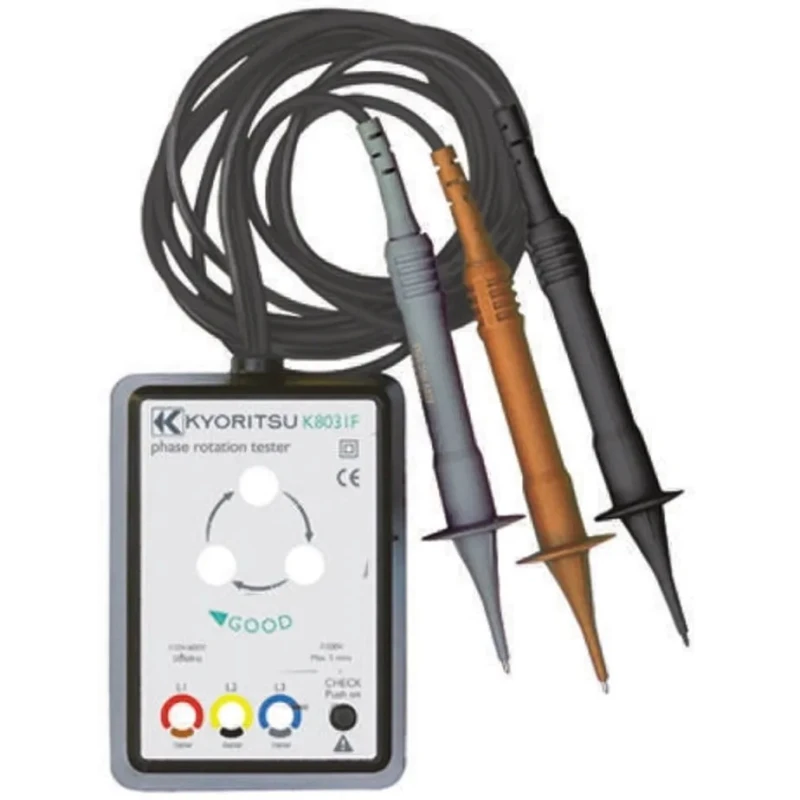

Kyoritsu Phase Rotation Tester CAT III 600V Test Lead Connection 50-60 Hz Frequency Range KEW8031F
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Kyoritsu |
| Height | 40mm |
| Length | 106mm |
| Model | KEW8031F |
| Connection Type | Test Lead |
| Gross Weight | 350g |
| Width | 75mm |
| Frequency response | 40 Hz to 200 Hz (AC 110V to 200V) 40Hz to 400Hz (AC 200V to 600V) |
| Maximum Voltage | 600V ac |
| Overvoltage Category | CAT III 600V |
| Minimum Voltage | 110V |
| Maximum Frequency | 60Hz |
| Minimum Frequency | 50Hz |
| Time limit for continuous 500V | Within 5min |
Key Features
- The tester features a rotating disc to clearly indicate phase sequence.
- Equipped with a system of lamps indicating open circuit phases.
- Constructed to be small, lightweight, and compact with no exposed metal parts.
- Includes a test button for user convenience during measurements.
- Comes with a 1.5 m GS38 fused test lead with both probe and crocodile clip options.
- Suitable for feed motors, drives, and electrical system phase verification.
- Conforms to IEC61010-1 safety standards and offers CAT III 600V overvoltage protection.
- Manufactured in Japan ensuring quality and reliability.
Product Description
Kyoritsu KEW8031F Phase Rotation Tester is a reliable electrical testing instrument designed to verify phase sequence in three-phase power sources. Operating within a voltage range of 110V to 600V ac and frequency bandwidth of 50 Hz to 60 Hz, this model offers accurate and quick phase rotation detection using a rotating disc indicator.
The tester integrates a clear lamp system that signals any open circuit phases to ensure comprehensive diagnostics. Its compact and lightweight design, weighing only 350 grams, features a robust insulated casing with no exposed metal parts, enhancing safety and portability.
Included accessories are a 1.5 meter GS38 fused test lead, equipped with both probe clip and crocodile clip options for versatile connection scenarios. The unit also features a conveniently placed test button for enhanced user control.
This tester is ideal for industrial and commercial settings, especially for feed motors, drive systems, and electrical installations requiring dependable phase sequence verification. Safety standards compliance includes IEC61010-1 with CAT III 600 V rating, suitable for harsh electrical environments ensuring operator protection.
Frequency response capability extends from 40 Hz to 200 Hz at lower voltages (AC 110V to 200V) and up to 400 Hz at higher voltages (AC 200V to 600V), broadening its applicability across various power frequencies.
The clear rotating disc provides visual phase rotation feedback. Exposure to continuous voltages over 500V is limited to under 5 minutes for device safety. The phase rotation indicator uses color coding compliant with EU regulations.
Compact dimensions of 106mm length, 75mm width, and 40mm height aid in easy handling.
Manufactured in Japan, the KEW8031F guarantees precision and robust build quality expected of Kyoritsu instrumentation. This makes it suitable for professional electrical testing and maintenance in industrial, manufacturing, and electrical contractor environments.
For further selection, browse the full range of Phase Rotation Testers and electrical test & measurement devices available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 110V to 600V AC.
It supports a frequency range of 50 Hz to 60 Hz, with extended capabilities of 40 Hz to 200 Hz at lower voltages and up to 400 Hz at higher voltages.
The tester weighs 350 grams, making it lightweight and portable.
It conforms to IEC61010-1 safety standards and offers CAT III 600V overvoltage protection.
Included accessories are a 1.5 meter GS38 fused test lead with both probe clip and crocodile clip options for versatile connections.
The tester features a rotating disc that clearly indicates the phase sequence and includes a lamp system to signal open circuit phases.
The dimensions are 106mm in length, 75mm in width, and 40mm in height.
The exposure to continuous voltages over 500V is limited to under 5 minutes for device safety.
It is suitable for verifying phase sequence in feed motors, drives, and electrical systems in industrial and commercial settings.
This model uses a test lead connection type for its operation.
It is manufactured in Japan, ensuring quality and reliability in its construction.
The maximum frequency it can handle is 60 Hz, with additional capabilities at lower and higher voltages.
