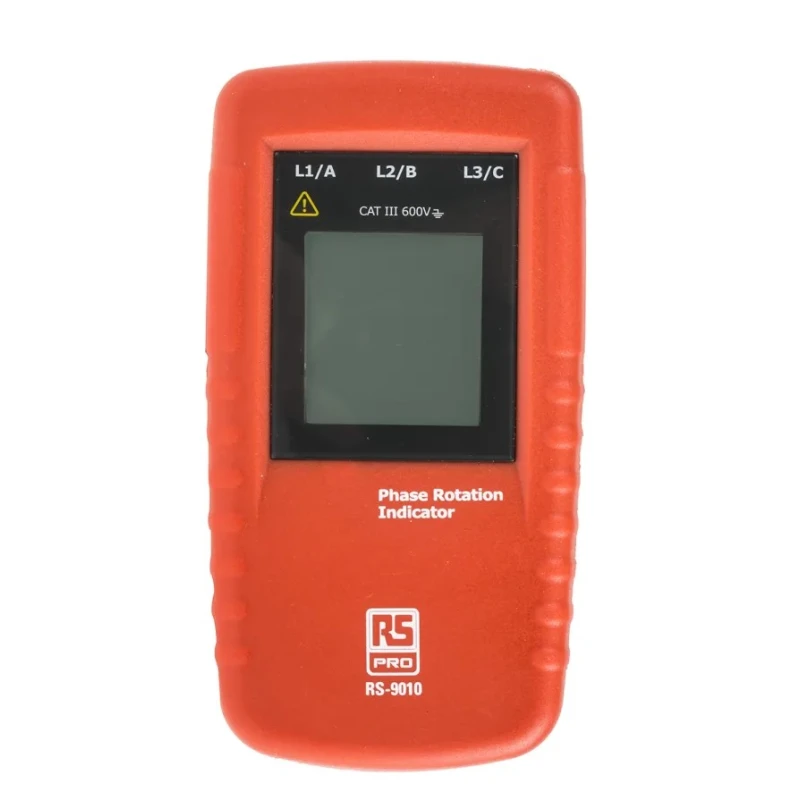

RS PRO Phase Rotation Tester RS9010 15 Hz to 400 Hz Frequency Range, 690V ac Max, LCD Display

RS PRO RS9010 Phase Rotation Tester is a handheld instrument designed for industrial electricians and technicians to accurately determine the phase rotation of three-phase electrical systems without requiring the motor to be energized. Suitable for frequencies ranging from 15 Hz up to 400 Hz and voltages up to 690V ac, this device facilitates safe and efficient verification of motor wiring and phase sequence.

Equipped with a clear LCD display, the RS9010 provides intuitive readings while its crocodile clip connections ensure reliable contact to system terminals. The device operates with low current consumption of approximately 1 mA, drawing power directly from the unit under test.

This robust tester is engineered to withstand demanding industrial conditions with an operating temperature range from 0°C to 40°C. Its compact dimensions (130 x 69 x 32 mm) and light weight (130 g) support easy handling and portability on site.

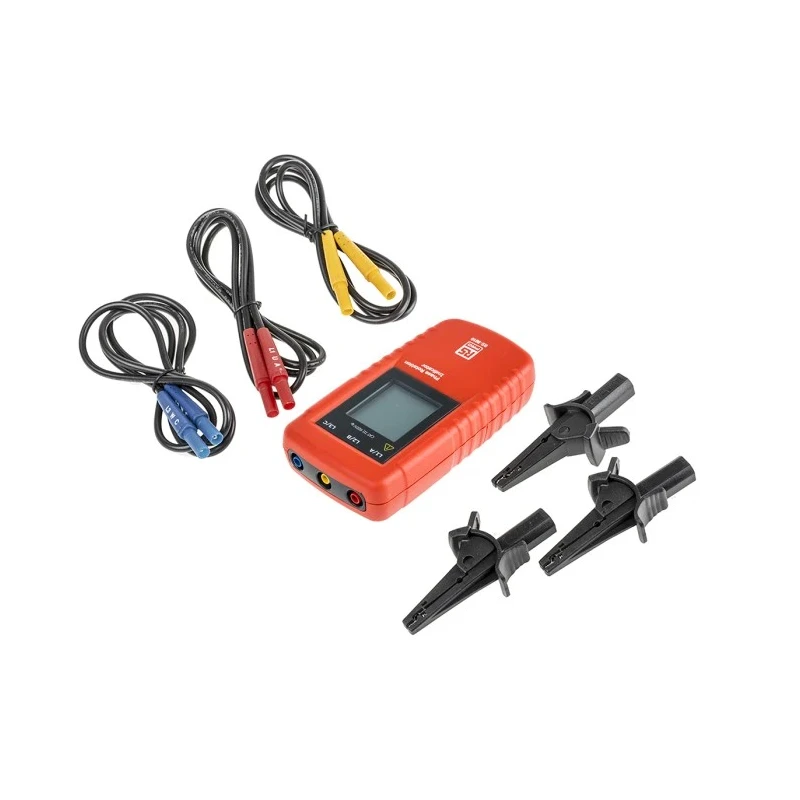

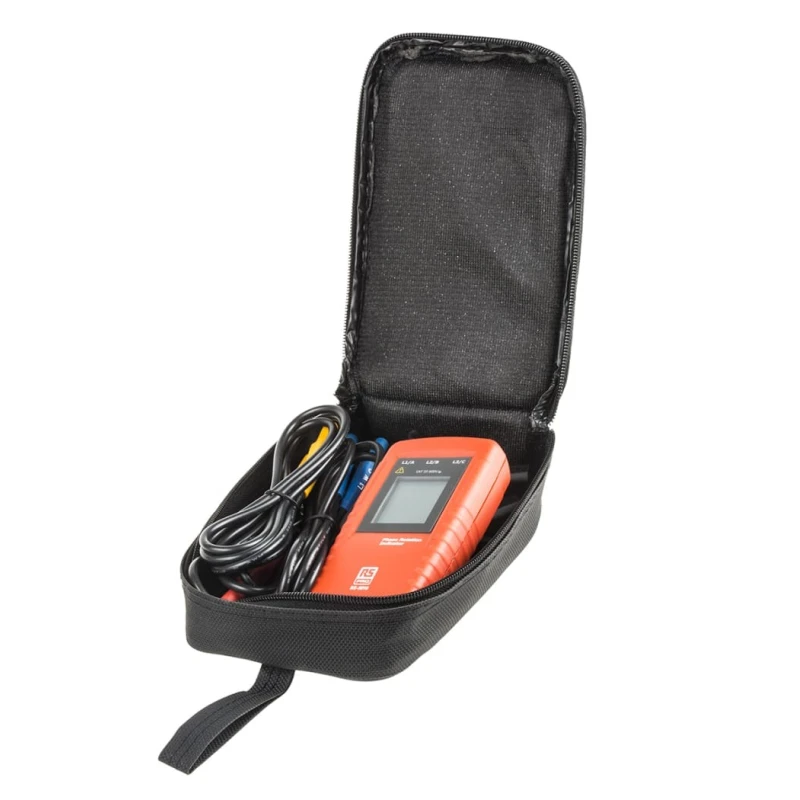

The RS9010 model complies with international safety standards IEC 61010 and IEC 61557-7, providing CAT III 600V protection level for enhanced user safety. It is supplied complete with three self-retaining test leads, three alligator clips, a carrying case, and user manual for ready use.

Measures phase rotation and sequence without energising the motor. Operates within a broad frequency range from 15 Hz to 400 Hz. Maximum operating voltage up to 690V ac, ensuring versatility. Features an LCD display for clear and easy reading.

Connects via crocodile clips for quick and secure attachment. Low current consumption of 1 mA powered by the system under test. Compact and robust design ideal for industrial environments. Supplied with three self-retaining test leads, three alligator clips, carrying case, and user manual.

Complies with IEC 61010 and IEC 61557-7 safety and performance standards. Operates in ambient temperatures from 0°C to 40°C.

This Phase Rotation Tester is essential for electrical installation, maintenance, and troubleshooting in industrial, manufacturing, construction, and HVAC applications. It ensures correct motor wiring sequence to prevent operational damage and downtime.
