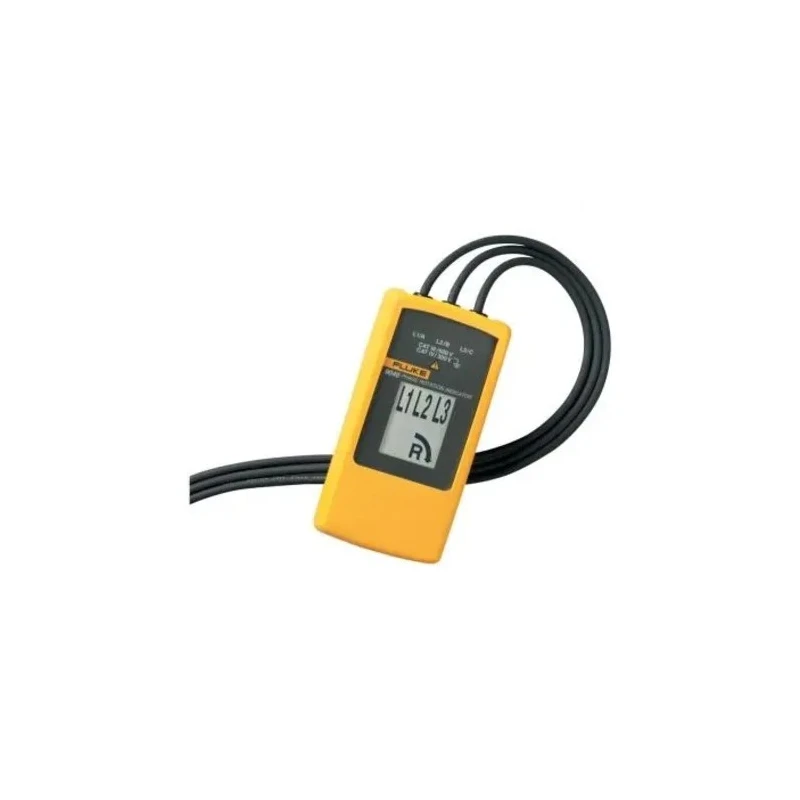

Fluke Phase Rotation Tester 15 Hz to 400 Hz Frequency Range 700 V Max Voltage FLUKE 9040/UK

Fluke FLUKE 9040/UK Phase Rotation Tester is a precision instrument used to determine the phase sequence and rotation direction of three-phase electrical supplies, essential for checking motor connections and drive operations in commercial and industrial environments.

This portable device operates from the circuit under test, featuring a voltage measurement capability from 40 V up to 700 V and frequency measurement from 15 Hz up to 400 Hz. The mains-powered unit eliminates the need for battery changes, drawing only 1 mA of current to minimize any load on the circuit.

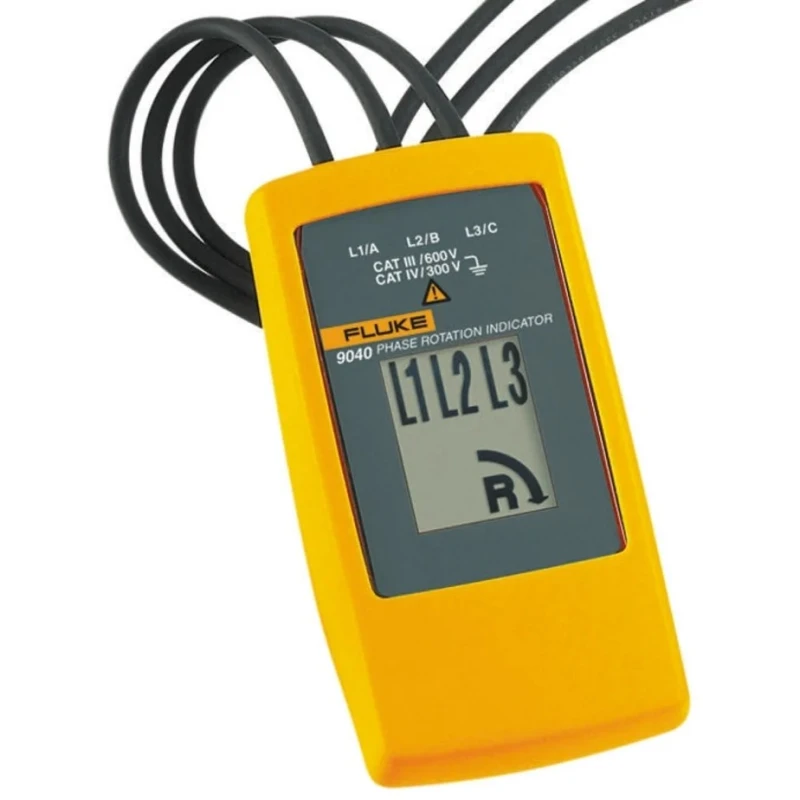

Designed with a clear LCD display, it provides immediate visual confirmation of phase rotation, aiding technicians and electricians in ensuring correct setups and troubleshooting.

The lightweight design, weighing just 200 grams, and protective probe clamping enhance operational convenience and safety during field tests in factories, control panels, and installations involving variable-frequency drives.

The device is certified to meet EN 61010 and EN 61557-7 standards and is rated for CAT III up to 600 V and CAT IV up to 300 V overvoltage categories. It functions effectively in ambient temperatures ranging from 0°C to 40°C, making it suitable for light industrial conditions.

Typical applications include commissioning three-phase motors and drives, verifying rotation direction before coupling pumps and compressors, control panel phase sequencing, and field checks on complex electrical systems.

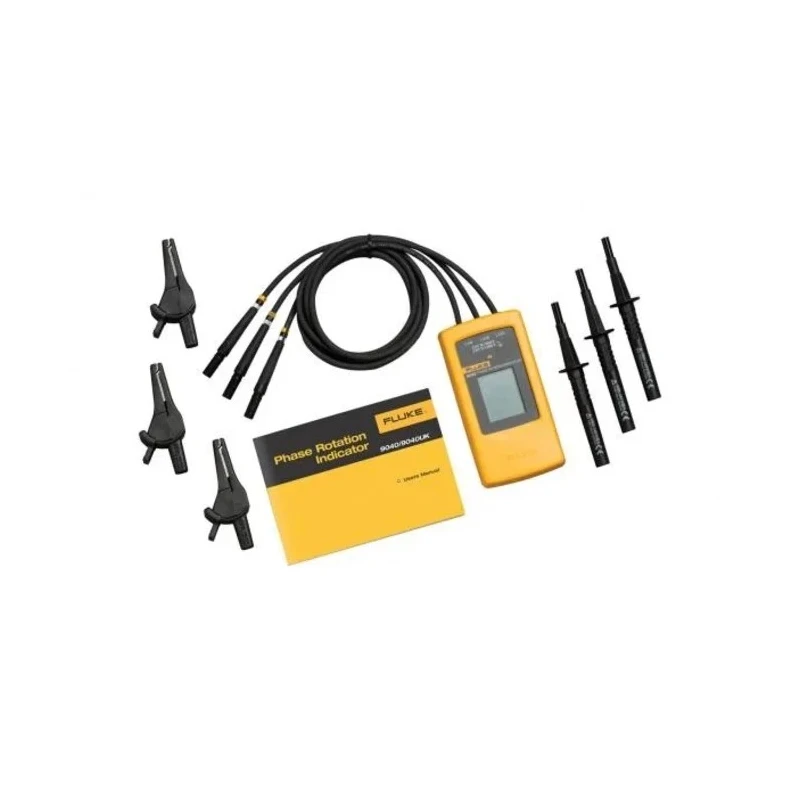

The kit contains three self-retaining test probes and an alligator clip to ensure secure and reliable connection to conductors and sockets during testing procedures. The tester operates directly from the circuit without requiring batteries, providing convenient continuous operation.

It measures voltage accurately within the range of 40 V to 700 V suitable for high-voltage systems. The frequency range from 15 Hz to 400 Hz accommodates a variety of industrial supply types. Current draw is minimal at 1 mA, preventing significant circuit loading during tests.

The device is lightweight and portable at 200 g, facilitating easy transport. Protective probe clamping enhances contact security in industrial sockets during measurements. Meets essential safety standards ensuring safe operation in industrial environments.

Functional across a range of ambient temperatures, suitable for diverse working conditions. Explore comprehensive Phase Rotation Testers at EnvMart to find precision instruments that best meet your industrial and commercial needs.
