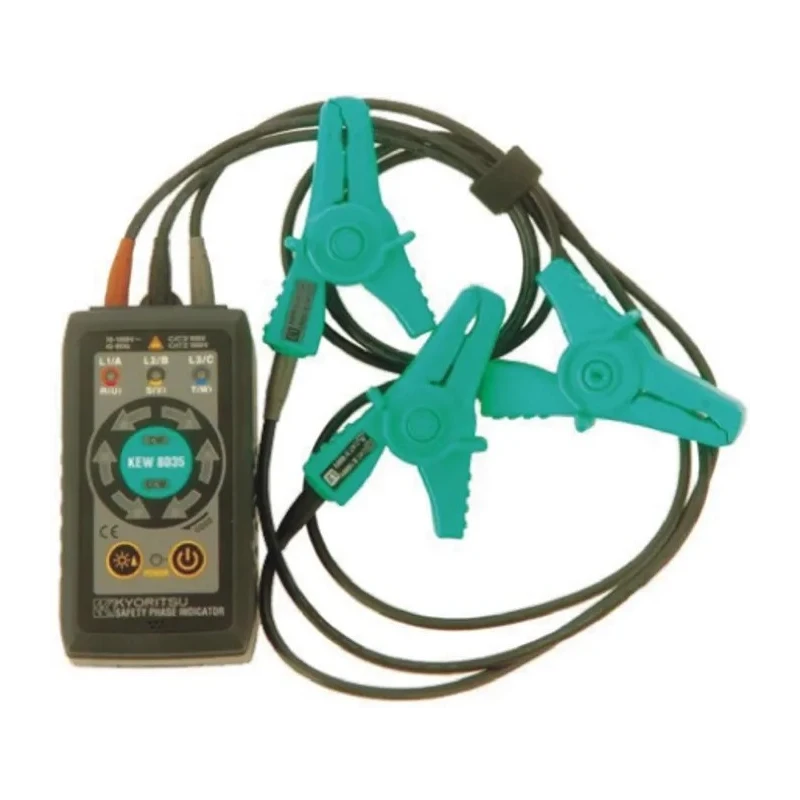

Kyoritsu Phase Rotation Tester 45 Hz to 66 Hz Frequency, 70V to 1000V AC Voltage, Battery Powered KEW8035
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Kyoritsu |
| Battery Life | 100h |
| Battery type | AA |
| Height | 112mm |
| Length | 61mm |
| Model | KEW8035 |
| Connection Type | Crocodile Clip |
| Gross Weight | 380g |
| Width | 36mm |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Maximum Voltage | 1000V ac |
| Minimum Voltage | 70V |
| Maximum Frequency | 66Hz |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 722-6745Brand: KyoritsuManufacturers Part No.: KEW8035Distrelec Article No.: 30178291 |
| Minimum Frequency | 45Hz |
Key Features
- Features insulated crocodile clips compatible with cables from 2.4mm to 30mm diameter.
- Utilizes LED indicators and audible tones for clear phase direction detection.
- Operates without metal contact ensuring safer testing.
- Includes a carrying case, 4 AA alkaline batteries, and an instruction manual.
- Compact design with magnet for easy panel attachment enhances practical usage.
- Designed for industrial, electrical, and motor drive systems applications.
- Operates between -10°C and 50°C to adapt to different environments.
- Battery life approximately 100 hours for extended field use.
Product Description
Kyoritsu KEW8035 Phase Rotation Tester is a precision instrument designed for detecting phase rotation direction safely and rapidly without metal contact. It supports voltage testing from 70V up to 1000V AC and a frequency range between 45 Hz and 66 Hz, suitable for a wide range of electrical systems and drives.
The device uses insulated crocodile clips to securely attach to cables with diameters ranging from 2.4mm to 30mm. Visual indication via LED lights and distinctive audible tones provide clarity on the phase sequence, with green LEDs and intermittent tones indicating clockwise rotation, and red LEDs with continuous tones indicating anti-clockwise rotation.
Equipped with a magnet on the backside, the tester can be conveniently fixed to metal panels for hands-free operation. The super bright LED mode ensures visibility even under strong sunlight conditions, enhancing outdoor usability. The tester is powered by four AA alkaline batteries, offering around 100 hours of battery life to support extended testing sessions.
Its operating temperature range of -10°C to 50°C allows deployment in varied environmental conditions encountered in industrial and construction settings. The compact and lightweight (380g) form factor enables easy portability.
Non-contact phase rotation detection enhances user safety during live electrical testing. Designed for electrical engineers, maintenance technicians, motor and drive system diagnostics. Includes a durable carrying case and comprehensive instruction manual for ease of transport and use.
Complies with IEC61010-1 and IEC61557-1,-7 standards and is CAT III 1000V safety rated. This Phase Rotation Tester is ideal for installation and troubleshooting of three-phase electrical systems, ensuring correct phase sequence and preventing equipment damage.
Explore more Kyoritsu electrical test and measurement instruments on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage range from 70V to 1000V AC.
It operates within a frequency range of 45 Hz to 66 Hz.
The Kyoritsu KEW8035 has a battery life of approximately 100 hours.
It utilizes insulated crocodile clips for connection, compatible with cables ranging from 2.4mm to 30mm in diameter.
The dimensions of this unit are 112mm in height, 61mm in length, and 36mm in width.
It operates effectively between -10°C and 50°C.
Yes, it includes a carrying case, four AA alkaline batteries, and an instruction manual.
It uses LED indicators and audible tones; green LEDs and intermittent tones indicate clockwise rotation, while red LEDs and continuous tones indicate anti-clockwise rotation.
This model weighs 380g, making it compact and portable.
It complies with IEC61010-1 and IEC61557-1,-7 standards and is CAT III 1000V safety rated.
It is designed for use in industrial, electrical, and motor drive systems applications, particularly for installation and troubleshooting of three-phase electrical systems.
It features a super bright LED mode for visibility in strong sunlight and a magnet for easy attachment to metal panels.
