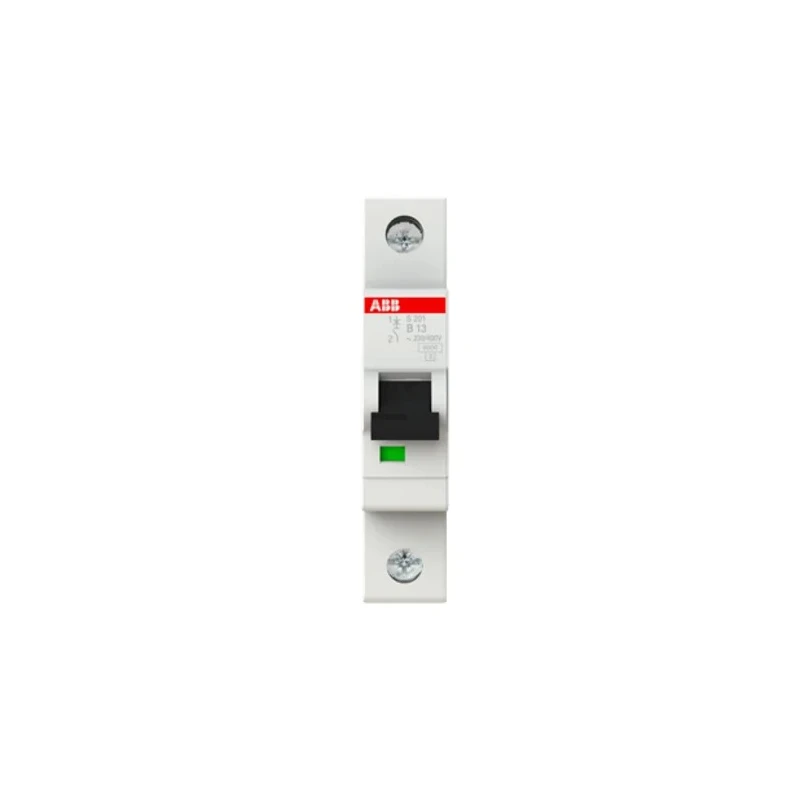

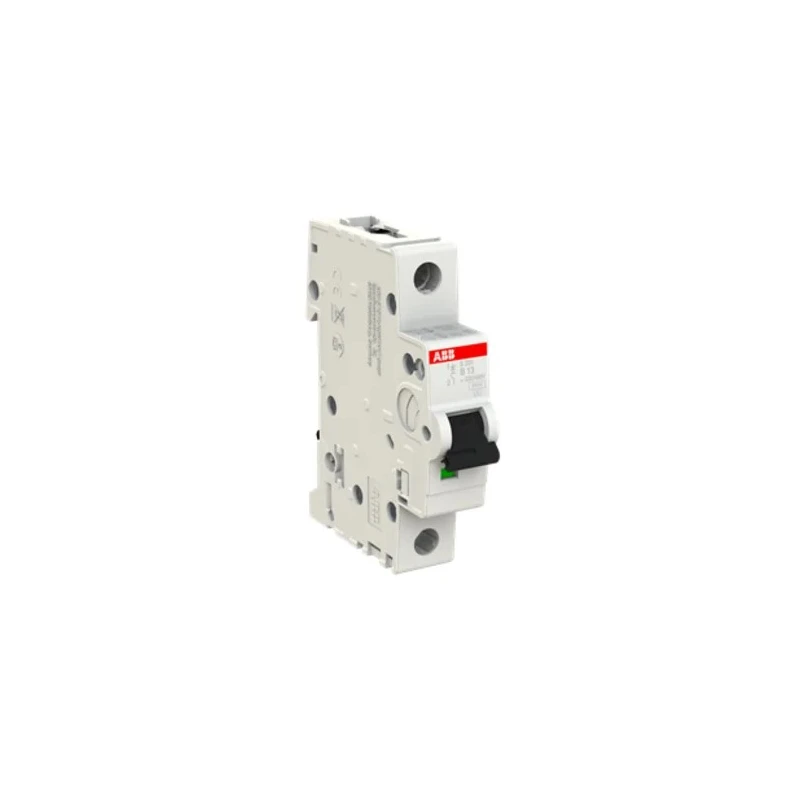

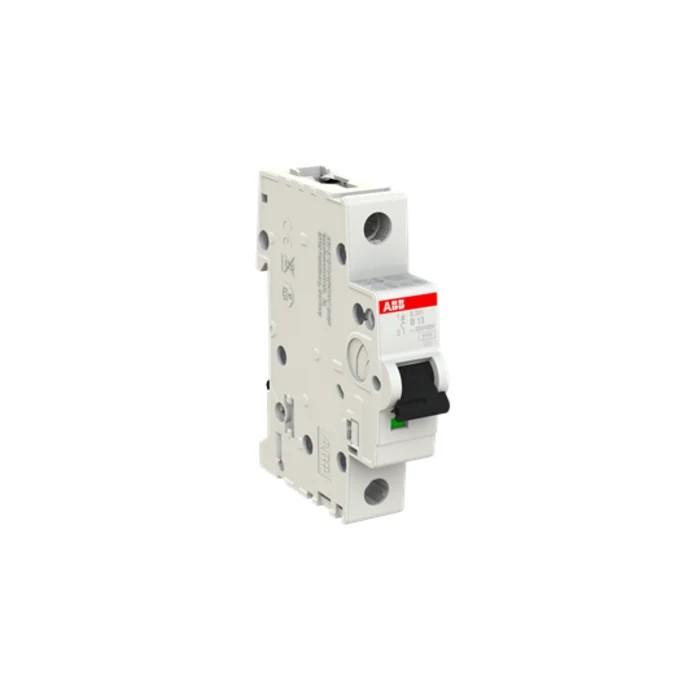

ABB System Pro M Compact Miniature Circuit Breaker, 1-Pole, 13A, Type B, 253V AC, 72V DC Breaking 2CDS251001R0135 - S201B13

ABB 2CDS251001R0135 - S201B13 Miniature Circuit Breaker is a compact, efficient solution designed for protecting single circuits in residential, commercial, and light industrial applications. Its 1-pole construction and 13 ampere rating provide dependable disconnection to prevent overloads and short circuits, helping maintain electrical safety and system integrity.

The breaker features a Type B tripping characteristic that activates when current surges to 3-5 times the rated load, making it ideal for protecting devices sensitive to small surges typically found in low-voltage systems. It operates effectively at rated voltages of up to 253V AC and 72V DC, supporting a wide range of AC and DC power environments.

With a breaking capacity of 6kA, this MCB can safely interrupt fault currents, minimizing risks of electrical fires or equipment damage. Its compact size, measuring 17.5mm width, 88mm height, and 76mm depth, allows it to fit neatly into electrical distribution boards where space is limited. Installation is simplified via DIN rail mounting and secure screw terminals, ensuring a robust connection.

The device employs a thermal magnetic tripping mechanism that combines gradual overload detection with instantaneous short-circuit response. Its IP40 and IP20 ratings provide protection against small solid objects and dust ingress, enhancing device durability in demanding environments. The breaker meets international standards IEC/EN 60947-2 and IEC/EN 60898-1, underscoring compliance with industry safety and performance benchmarks.

Common application areas include construction sites, production lines, and storage facilities where reliable circuit protection is critical. This model enhances safety and operational continuity by swiftly disconnecting faulty circuits.

Single-pole, 13A, Type B rated MCB. Breaking capacity of 6kA for robust short-circuit protection. Mounts easily on DIN rails with screw terminals. Compact size ideal for tight electrical panels. Thermal magnetic tripping mechanism for reliable overload and fault response.

IP40 and IP20 certified for dust and solid particle protection. Conforms to IEC/EN 60947-2 and IEC/EN 60898-1 standards. Discover more high-quality Miniature Circuit Breakers in the Electronics & Electricals category at EnvMart for diverse industrial and commercial applications.
