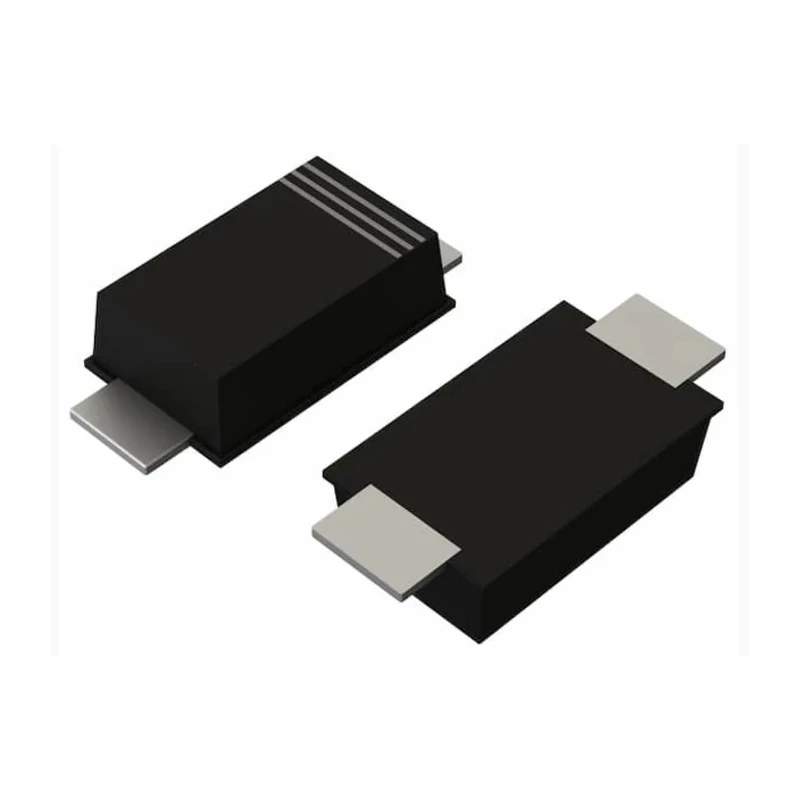

ROHM 250 V 100 mA Surface Mount Rectifier & Schottky Diode Recovery SOD-323-2 RF01VM2SFHTE-17
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RF01VM2SFHTE-17 |
| Mount Type | Surface |
| Series | RF01VM2S |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323-2 |
| Minimum Operating Temperature | -55°C |
| Maximum Continuous Forward Current If | 100mA |
| Peak Reverse Repetitive Voltage Vrrm | 250V |
| Diode Configuration | Single |
| Rectifier Type | Recovery |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 1.2V |
Key Features
- High-speed switching silicon epitaxial planar type diode.
- Maximum continuous forward current of 100 mA ensures reliable operation.
- Peak reverse repetitive voltage rating of 250 V for robust performance.
- Compact SOD-323-2 surface mount package ideal for space-saving circuits.
- Operating temperature range of -55°C to 150°C suitable for various environments.
- Maximum forward voltage of 1.2 V minimizes power loss during operation.
- Peak non-repetitive forward surge current of 1 A for transient durability.
- Designed as a super fast recovery diode for efficient rectification.
Product Description
ROHM RF01VM2SFHTE-17 is a high-performance surface mount Rectifier & Schottky Diode Recovery device in the compact SOD-323-2 package. It supports a maximum continuous forward current of 100 mA and a peak reverse repetitive voltage of 250 V, making it ideal for various electronic applications that require efficient rectification with minimal power loss.
This diode features a silicon epitaxial planar structure designed for high-speed switching and super fast recovery characteristics, allowing quick response in switching circuits. Its maximum forward voltage of 1.2 V and peak surge current rating of 1 A provide robustness and reliability under varying electrical load conditions.
Operating over a wide temperature range from -55°C to 150°C, it is suitable for demanding industrial, automotive, laboratory, and consumer electronics environments. The compact SOD-323-2 surface mount package supports efficient PCB layout and space-saving design.
The device is designed following automotive grade standards ensuring quality and durability, though no specific approvals or certifications are indicated. Typical uses include power supply rectification, voltage clamping, and general-purpose rectification within circuits requiring a small form-factor Schottky diode.
High-speed, super fast recovery diode for efficient rectification. Compact SOD-323-2 package suitable for surface mounting. Rated for 250 V reverse voltage and 100 mA forward current. Wide operating temperature range from -55°C to 150°C.
Low forward voltage drop of 1.2 V reduces power dissipation. Peak surge current of 1 A for short transient conditions. Silicon epitaxial planar construction for stable electrical characteristics. Automotive grade quality for reliable performance in critical applications.
Ideal for electronic component power management and rectification tasks.
Explore the Electronics & Electricals Semiconductors category for more high-quality ROHM components and similar semiconductor devices to support your design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for this model is 100 mA.
This diode has a peak reverse repetitive voltage rating of 250 V.
The operating temperature range for this unit is from -55°C to 150°C.
The maximum forward voltage drop for this model is 1.2 V.
The peak non-repetitive forward surge current rating for this diode is 1 A.
This model comes in a compact SOD-323-2 surface mount package.
This diode features a single diode configuration.
This diode is classified as a recovery rectifier.
This diode is suitable for power supply rectification, voltage clamping, and general-purpose rectification in electronic circuits.
It utilizes a silicon epitaxial planar construction for stable electrical characteristics.
Yes, this diode is designed following automotive grade standards, ensuring quality and reliability for automotive applications.
The country of origin for this model is India.
