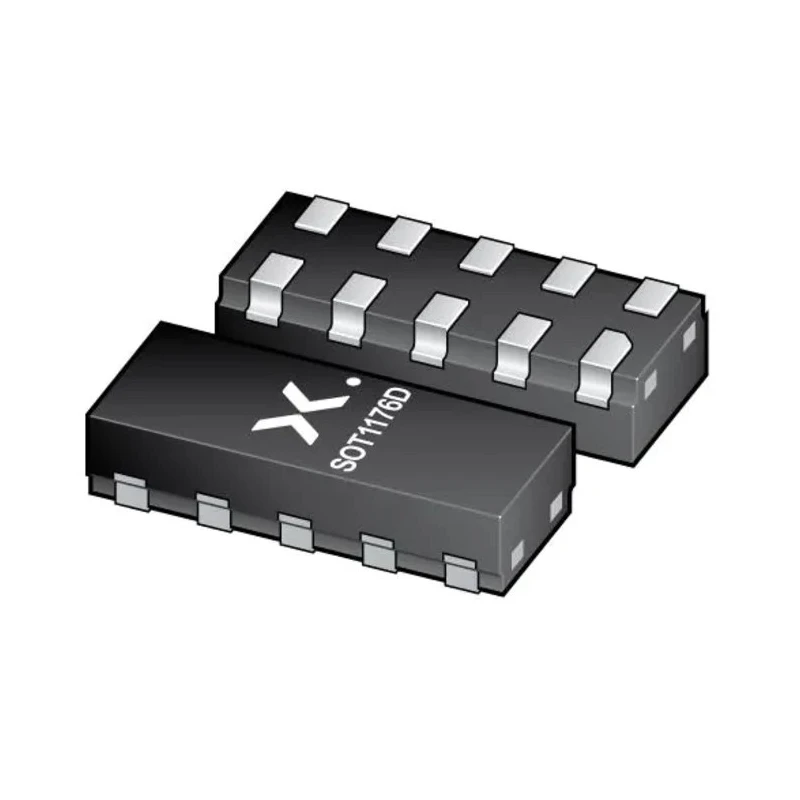

Nexperia Uni-Directional TVS Diode 10-Pin DFN2510D Surface Mount, 6V Breakdown Voltage PESD4USB5U-TBSX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB5U-TBSX |
| Width | 1mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | IEC61000-4-2 Level 4, ISO10605 |
| Pin Count | 10 |
| Clamping Voltage VC | 3.5V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Unidirectional |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Designed for electrostatic discharge protection of USB, HDMI, and Display Port interfaces.
- Compact 10-pin DFN2510D surface mount package with 2.5mm length and 1.0mm width.
- Minimum breakdown voltage of 6V and maximum reverse stand-off voltage of 5V.
- Peak pulse current rating up to 7A for effective transient suppression.
- Meets automotive AEC-Q101 and IEC61000-4-2 Level 4 ESD protection standards.
- Low line capacitance of 0.5 pF per channel for minimal signal interference.
- Operating temperature range from -55°C to 150°C for harsh environments.
- Matched 0.5 mm trace spacing and side-wettable flanks for AOI compatibility.
Product Description
Nexperia PESD4USB5U-TBSX Uni-Directional TVS Diode is engineered for comprehensive electrostatic discharge protection of high-speed data interfaces including SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, Display Port, eSATA, and automotive-grade AV systems.
This device features a compact 10-pin DFN2510D surface mount package with physical dimensions 2.5 mm length, 1.0 mm width, and 0.75 mm height, suited for dense PCB layouts.
The unidirectional diode offers a minimum breakdown voltage of 6 V, with a maximum reverse stand-off voltage of 5 V, ensuring reliable clamping performance at a maximum clamping voltage of 3.5 V. It can handle peak pulse currents up to 7 A, protecting sensitive components from transient voltage spikes effectively.
Designed to meet automotive AEC-Q101 standards as well as IEC61000-4-2 Level 4 and ISO10605 ESD protection level up to ±15 kV, it is suitable for harsh industrial and automotive environments with operation from -55°C to 150°C.
The low line capacitance of 0.5 pF per channel guarantees minimal signal interference, making it ideal for preserving signal integrity in high-speed data communication applications such as USB, HDMI, LVDS, and SerDes links.
Electrostatic discharge protection for USB 2.0, USB 3.2, HDMI 2.0, and automotive audio/video systems. Compact 10-pin DFN2510D surface mount package optimized for PCB density. High peak pulse current tolerance of 7 A for robust transient suppression.
Wide operating temperature range from -55°C to 150°C ensures reliability under harsh conditions. Compliance with automotive AEC-Q101 standard and IEC/ISO ESD protection standards. Low capacitance design reduces signal distortion on high-speed lines.
Matched 0.5 mm trace spacing and side-wettable flanks for effective PCB assembly. Suitable for infotainment, automotive sensing, and high-speed data interfaces protection. Explore a vast selection of semiconductor TVS Diodes and ESD protection devices at EnvMart for industrial, automotive, and consumer electronics applications.
