| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C7V5-QYL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 7.5V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 80Ω |
| Typical Voltage Temperature Coefficient | 2.5mV/K |

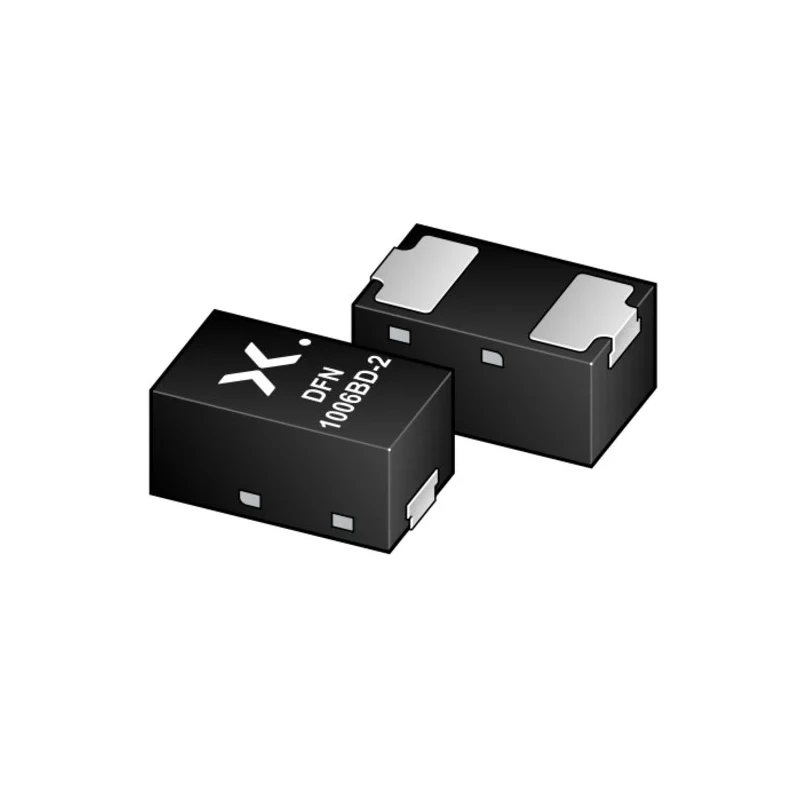

Nexperia BZX8850S-C7V5-QYL is a 7.5 V single Zener diode voltage regulator designed for surface mount applications with a maximum power dissipation of 365 mW. This device is housed in an ultra-small DFN1006BD-2 leadless package making it suitable for space-constrained electronic designs.
It provides precise voltage regulation for electronic circuits, benefiting low bias and battery-powered applications due to its low test current of 50 μA. The diode features a nominal Zener voltage of 7.5 V with a tolerance of ±5%, ensuring stable voltage reference.
The device operates reliably over a wide temperature range from -55°C to 150°C and meets the AEC-Q101 automotive standard, making it ideal for demanding automotive and industrial environments. With a maximum Zener impedance of 80 Ω and low reverse leakage current of 100 nA, performance efficiency is maintained.
The diode has a compact size of 1 mm length and 0.47 mm height, allowing integration into dense PCB layouts. The two-pin configuration permits easy soldering and electrical connections on surface mount boards.
Nominal Zener voltage of 7.5 V for precise voltage regulation. Maximum power dissipation of 365 mW allowing moderate power applications. Low test current suitable for portable and battery-powered devices. Operating temperature range from -55°C to 150°C for stability in harsh conditions.
Compliance with automotive AEC-Q101 standard ensures durability and reliability. Compact DFN1006BD-2 surface mount package reduces board space requirements. Low leakage current and impedance optimize device efficiency. Single diode configuration for dedicated voltage regulation function.
Suitable for industrial, automotive, electronic component manufacturing, and power management applications. This product aligns with semiconductor standards focused on quality and performance. Explore our wide range of semiconductor diodes and other electronic components at EnvMart for industrial and laboratory applications.
