| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C47-QYL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 1.8 V to 75 V |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 47V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 375Ω |
| Typical Voltage Temperature Coefficient | 42mV/K |

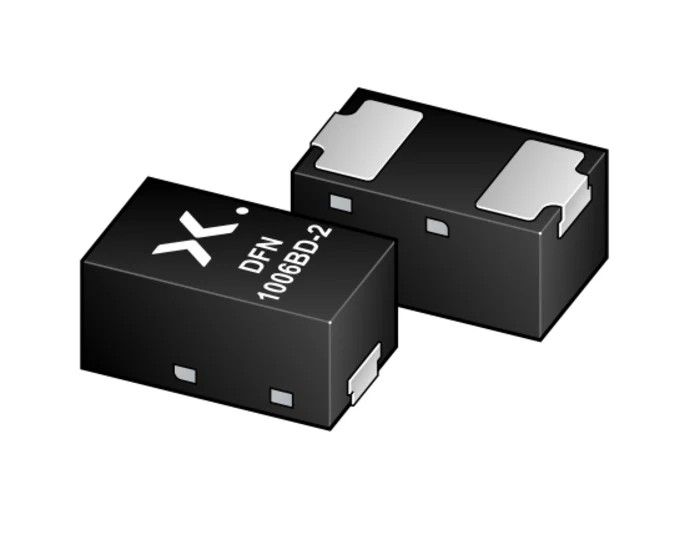

Nexperia BZX8850S-C47-QYL is a high-quality surface mount Zener diode designed for voltage regulation applications with a nominal Zener voltage of 1.47 V and maximum power dissipation of 365 mW. It is housed in an ultra-small DFN1006BD-2 plastic package with side-wettable flanks, supporting compact PCB designs.
This diode features a single-element chip configuration with two pins, suitable for low-current general voltage regulation tasks. Rated for operation between -55°C and 150°C, it ensures reliable performance in industrial, automotive, and portable electronics applications.
Key electrical characteristics include a low test current of 50 μA, a maximum Zener impedance of 375 Ω, and a maximum reverse leakage current of 50 nA. These parameters make it an excellent choice for stable voltage reference and regulation under minimal load conditions.
Compliant with the automotive standard AEC-Q101, this diode is suited for demanding environments that require high reliability and quality assurance. Its compact dimensions (1 mm length and 0.47 mm height) facilitate integration into small and complex electronic assemblies.
Single diode configuration with two-pin DFN package for surface mounting. Nominal Zener voltage of 1.47 V with ±5% voltage tolerance. Power dissipation up to 365 mW ideal for portable and battery-powered applications. Wide operating temperature range from -55°C to 150°C ensures durability.
Low leakage current and impedance for precision voltage regulation. Automotive compliant with AEC-Q101 standard for high reliability.
This product is suitable for applications in electronic circuits requiring voltage regulation such as power supply protection, battery management, and industrial controller systems. Its small form factor and robust performance make it popular in consumer electronics, automotive electronics, and telecommunications.
