| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C39YL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 1.8 V to 75 V |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 39V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 350Ω |
| Typical Voltage Temperature Coefficient | 33.4mV/K |
Nexperia BZX8850S-C39YL is a high-precision single Zener diode voltage regulator featuring a nominal voltage of 39 V and power dissipation capacity of 365 mW. Housed in an ultra-compact DFN1006BD-2 surface mount package, this diode is optimized for low-current voltage regulation and offers exceptional performance in space-constrained and portable electronic applications.
This device employs a single-element chip configuration designed for voltage regulation with a tolerance of ±5%, making it a reliable component for battery-powered and low bias circuits. The test current is specified at 50 μA, enabling efficient regulation with minimal power consumption.
The diode supports a temperature operating range from -55°C to 150°C, with a typical voltage temperature coefficient of 33.4 mV/K, ensuring stable voltage output under varying thermal conditions. Furthermore, due to its low maximum reverse leakage current of 50 nA and maximum Zener impedance of 350 Ω, the device is suitable for applications requiring minimal leakage and stable impedance characteristics.

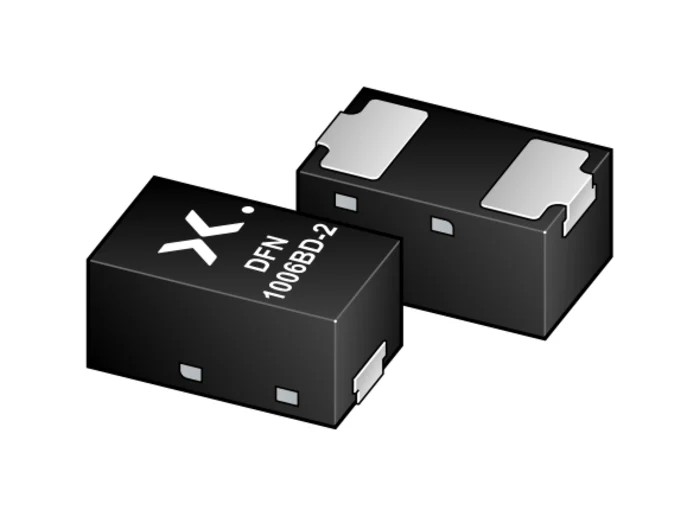

The DFN1006BD-2 package includes leadless surface mounting with side-wettable flanks that ensure superior solder joint reliability. This compact form factor with a height of 0.47 mm and length of 1 mm facilitates high-density PCB layouts in industrial, automotive, laboratory, and consumer electronics.
Nexperia BZX8850S-C39YL complies with automotive AEC-Q101 standards, affirming its suitability for automotive electronics where reliability and quality are paramount. The diode configuration is single with a single chip element for focused voltage regulation.
Maximum power dissipation is rated at 365 mW to manage energy effectively. Pin count is 2 for straightforward integration into circuits. Typical use cases include voltage regulation in industrial control systems, automotive electronics, portable devices, and power supplies.
Low test current and leakage parameters make it ideal for sensitive electronic designs requiring power efficiency.
For users requiring precise voltage regulation components in compact packages, this Nexperia Zener diode provides a reliable, high-performance solution. Explore additional semiconductor products in the EnvMart catalog for comprehensive component sourcing.
