| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C2V2-QYL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 1.8 V to 75 V |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 4μA |
| Nominal Zener Voltage Vz | 2.2V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 600Ω |
| Typical Voltage Temperature Coefficient | -3.5mV/K |

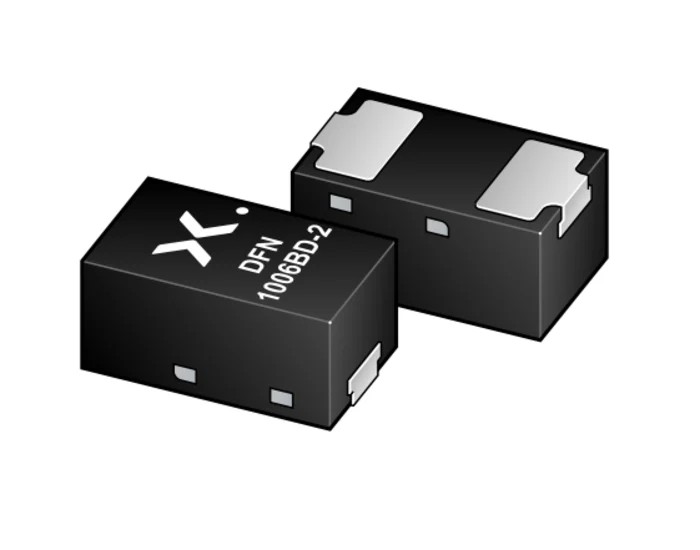

The Nexperia BZX8850S-C2V2-QYL is a low-current, 2.2 V Zener diode designed for voltage regulation in electronic circuits. Packaged in a compact DFN1006BD-2 surface mount device, this diode offers a maximum power dissipation of 365 mW suitable for low-bias applications such as portable battery-powered devices.
Featuring a nominal Zener voltage tolerance of ±5%, the diode operates efficiently at a test current of 50 microamperes. Its low reverse leakage current of 4 microamperes and maximum Zener impedance of 600 ohms ensure stable voltage regulation and minimal power loss. The device withstands operating temperatures from -55°C up to 150°C, making it suitable for a wide range of industrial and automotive applications.
The device is certified to comply with the automotive standard AEC-Q101, underscoring its robustness for automotive and industrial use cases. Its ultra-small plastic package with side-wettable flanks simplifies PCB assembly and placement in compact electronics.
Typical applications include industrial power management, electronic component voltage regulation, automotive electronics, and laboratory testing setups where precise voltage stabilization is critical.
Nominal Zener voltage of 2.2 V with ±5% tolerance. Maximum power dissipation rating of 365 mW. Compact DFN1006BD-2 surface mount package with 2 pins. Low test current of 50 μA for energy-efficient regulation. Wide operating temperature range from -55°C to 150°C.
Maximum Zener impedance of 600 Ω ensuring voltage stability. Maximum reverse leakage current of 4 μA minimizes losses. Certified to automotive standard AEC-Q101. Height 0.47 mm and length 1 mm suitable for dense circuit layouts.
Choose the Nexperia BZX8850S-C2V2-QYL Zener diode for reliable, compact, and efficient voltage regulation in your next industrial, automotive, or laboratory electronics design. Browse more Zener Diodes and semiconductor components on EnvMart for complete solutions.
