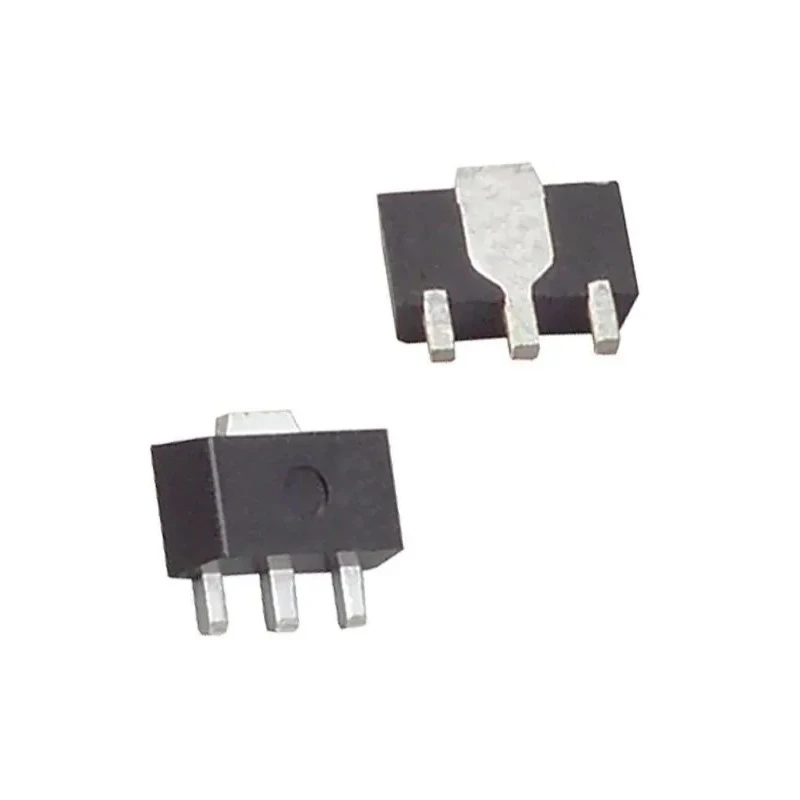

Nisshinbo Micro Devices Linear Voltage Regulator NJM78L15UA-TE1, 1-Channel, 15V Output, 100mA, 3-Pin Surface Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM78L15UA-TE1 |
| Mount Type | Surface |
| Series | NJM78L00 |
| Output Current | 100mA |
| Maximum Operating Temperature | 85°C |
| Load Regulation | 150 mV |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Linear Voltage |
| Number of outputs | 1 |
| Maximum Input Voltage | 35V |
| Output Voltage | 15V |
| Quiescent Current | 6mA |
| Line Regulation | 300 mV |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
Key Features
- Constructed using JRC Planar epitaxial process for durability.
- Provides internal current limiting and thermal shutdown protection.
- 3-pin surface mount package suitable for compact PCB designs.
- Excellent ripple rejection for stable voltage output.
- Operates within temperature range -40°C to 85°C.
- Low quiescent current of 6mA for efficient power usage.
- Complies with RoHS environmental standards.
- Maximum input voltage rating of 35V ensures robust operation.
Product Description
Nisshinbo Micro Devices NJM78L15UA-TE1 is a 1-channel linear voltage regulator delivering a stable 15V output voltage with a maximum output current of 100mA. Manufactured with advanced JRC Planar epitaxial technology, this voltage regulator ensures reliable and robust performance in power management applications.
The device is designed with integrated internal current limiting, thermal shutdown, and safe area compensation to protect against overload and thermal damage, making the component highly durable and essentially indestructible. It features excellent ripple rejection to maintain voltage stability and low quiescent current of 6mA, which helps reduce power consumption during operation.
Housed in a 3-pin surface mount package, the NJM78L15UA-TE1 is suitable for compact electronic circuit boards, offering convenient high-efficiency voltage regulation. It operates safely within a temperature range from -40°C to 85°C and accepts input voltages up to 35V. Compliance with RoHS standards also ensures environmentally responsible usage.
This linear voltage regulator is ideal for diverse applications including power supplies for industrial equipment, consumer electronics, and other precision devices requiring stable voltage sources. Its built-in protection features and efficient design simplify integration into circuits needing dependable performance under varying load conditions.
Constructed with JRC Planar epitaxial process for reliability. Includes internal current limiting and thermal shutdown protection. 3-pin surface mount package for easy PCB installation. Excellent ripple rejection enhances voltage stability.
Wide operating temperature range from -40°C to 85°C. Low quiescent current reduces power consumption. RoHS compliant for environmental safety. Maximum input voltage of 35V supports robust applications. Output voltage stabilized at 15V with 100mA output current.
Explore the Electronics & Electricals category at EnvMart for a wide selection of power management components and Voltage Regulators designed for industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NJM78L15UA-TE1 provides a stable output voltage of 15V.
This model can deliver a maximum output current of 100mA.
The maximum input voltage rating for this voltage regulator is 35V.
It operates within a temperature range of -40°C to 85°C.
This unit is housed in a 3-pin surface mount package.
The quiescent current for the NJM78L15UA-TE1 is 6mA.
Yes, it includes internal current limiting and thermal shutdown protection.
The line regulation is 300 mV and the load regulation is 150 mV.
Yes, it complies with RoHS environmental standards.
It is suitable for power supplies in industrial equipment, consumer electronics, and precision devices requiring stable voltage.
It is constructed using JRC Planar epitaxial technology for reliability.
This model belongs to the NJM78L00 series.
