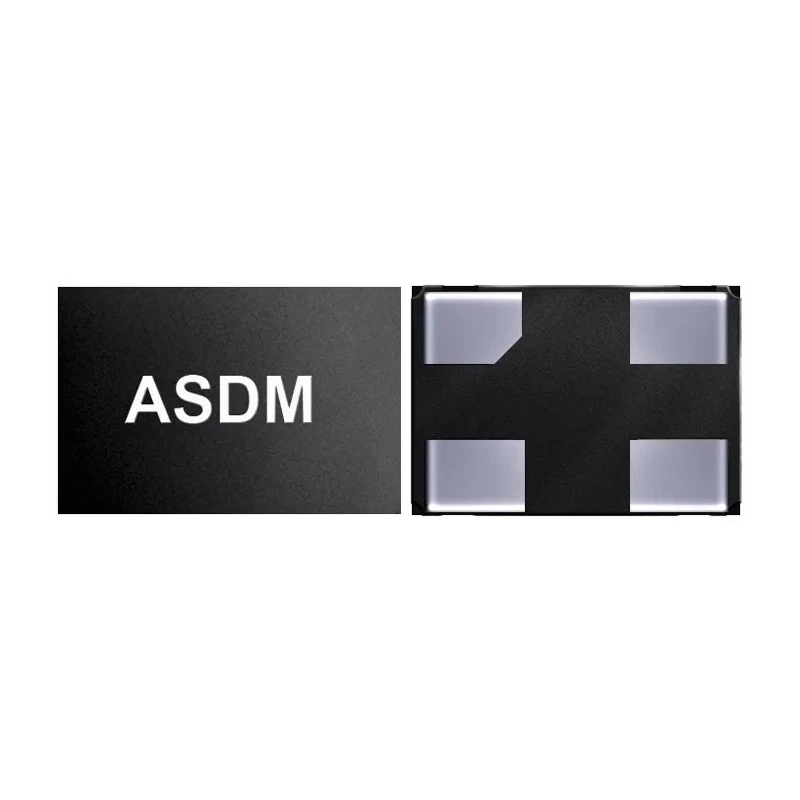

Abracon 80 MHz MEMS Oscillator 4-Pin Surface Mount ±50 ppm, 1.8V - 3.3V Supply Voltage ASDM1-80.000MHZ-LC-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.85mm |
| Length | 2.5mm |
| Model | ASDM1-80.000MHZ-LC-T |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | ASDM |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Maximum Output Frequency | 80MHz |
| Standards/Approvals | RoHS/RoHS II |
| Pin Count | 4 |
| Output Level | LVCMOS |
| Maximum Operating Supply Voltage | 3.3V |
| Minimum Operating Supply Voltage | 1.8V |
Key Features
- Operating frequency is 80 MHz with a high stability of ±50 ppm.
- Compact surface mount package measuring 2.5 mm length, 2 mm width, and 0.85 mm height.
- Operates within a supply voltage range of 1.8 V to 3.3 V.
- Wide operating temperature range from -40°C to 85°C suitable for varied environments.
- Output level is low voltage CMOS (LVCMOS) for efficient signal transmission.
- Complies with RoHS and RoHS II environmental standards.
- Features a 4-pin configuration with tape and reel packaging for automated assembly.
- Series ASDML offers compact QFN plastic packaging with robust performance.
Product Description
Abracon ASDM1-80.000MHZ-LC-T MEMS Oscillator is a precision 80 MHz frequency oscillator featuring excellent frequency stability of ±50 ppm. Packaged in a compact 4-pin surface mount QFN plastic case, it is designed for integration in portable electronics, computers, peripherals, and industrial equipment exposed to harsh environmental conditions.
This oscillator supports a supply voltage between 1.8 V and 3.3 V with low power consumption, making it ideal for battery-operated devices. Its wide operating temperature range from -40°C to +85°C ensures reliable performance in industrial, automotive, and military electronics applications.
The device offers an LVCMOS output signal, facilitating compatibility with modern digital circuits and controllers. Tape and reel packaging supports automated manufacturing processes to improve assembly efficiency.
Applications include camera clock circuits (CCD clock for VTR cameras), consumer electronics such as MP3 players, gaming devices, televisions, DVRs, and other portable or embedded electronics. Its compact size (2.5 mm x 2 mm x 0.85 mm) allows for space-saving designs without compromising stability or robustness.
Operating frequency: 80 MHz with ±50 ppm frequency stability. Supply voltage range: 1.8 V to 3.3 V. Operating temperature range: -40°C to 85°C. Output: Low Voltage CMOS (LVCMOS) digital signal. 4-pin surface mount QFN package with tape and reel packaging.
RoHS and RoHS II compliant for environmental safety. Compact dimensions: 2.5 mm length x 2 mm width x 0.85 mm height. Designed for industrial, automotive, consumer, and military electronics.
EnvMart provides an extensive selection of MEMS Oscillators suitable for precision timing and frequency generation in a wide range of applications. Browse our Electronics Components category to find related products and alternatives from trusted brands including Abracon.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating frequency of this model is 80 MHz with a frequency stability of ±50 ppm.
This oscillator operates within a supply voltage range of 1.8 V to 3.3 V.
It provides a low voltage CMOS (LVCMOS) output signal, suitable for modern digital circuits.
The compact surface mount package measures 2.5 mm in length, 2 mm in width, and 0.85 mm in height.
The operating temperature range is from -40°C to +85°C, allowing for use in various environments.
It features tape and reel packaging, which supports automated assembly processes.
This model has a pin count of 4, suitable for surface mounting.
It complies with RoHS and RoHS II environmental standards, ensuring safety and environmental compliance.
The oscillator belongs to the ASDM series, which features compact QFN plastic packaging.
It is suitable for applications in portable electronics, computers, and industrial equipment, including camera clock circuits and consumer electronics.
This model supports surface mounting, making it easy to integrate into various electronic designs.
The maximum output frequency of this oscillator is 80 MHz.
